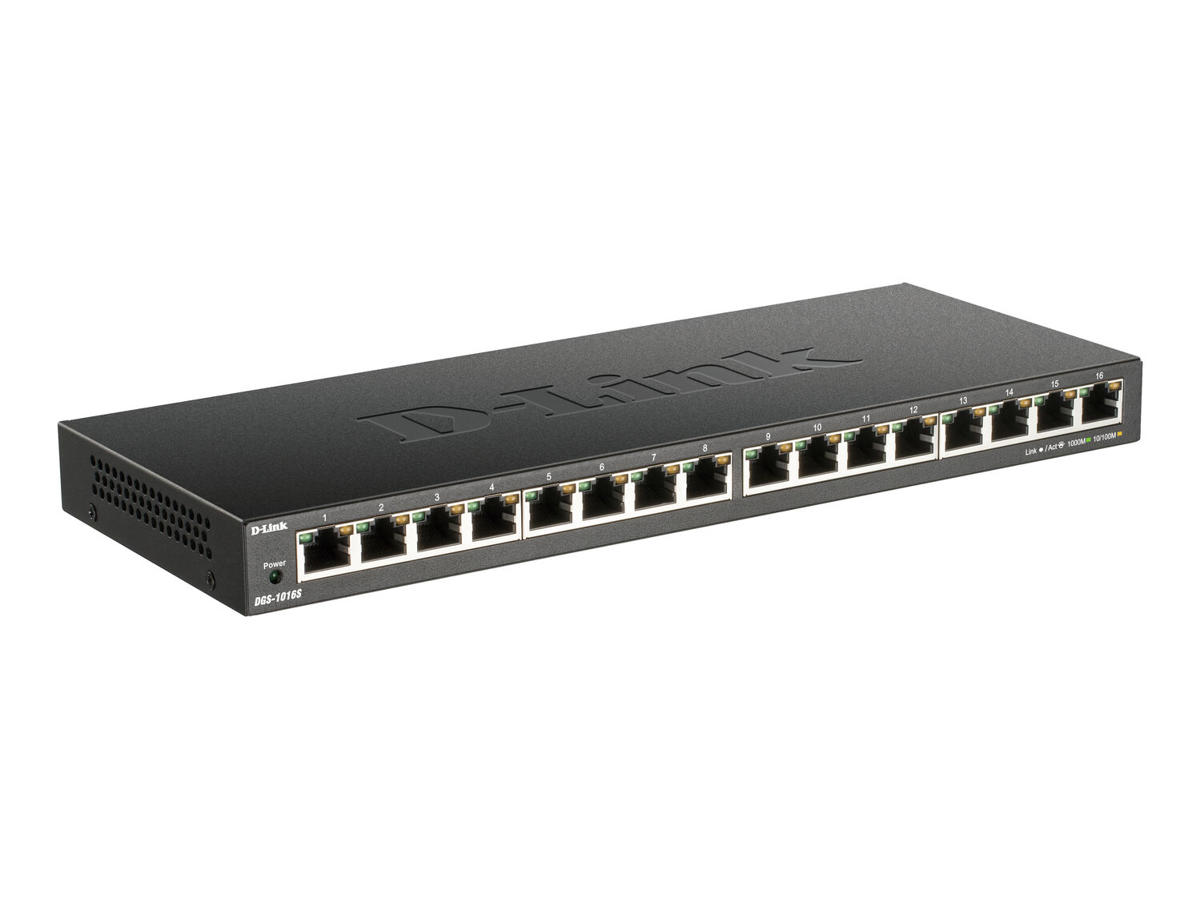

Varenummer: DGS-1016S
Mere information
-
Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall
High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming
Silent Operation
Fanless design means the switch is virtually silent when in use
Energy Efficient
Integrated energy-saving technology to reduce power usage automatically
Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.
Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.
Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.
Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port. -
Administrationsfunktioner Switch-type Ikke administreret Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 16 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3az, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 1000BASE-T Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Kabellængde opdagelse Ja Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 32 Gbit/sek. Opbevar-og-frem Ja Antal køer 8 Jumbo Frames support Ja Jumbo rammer 9216 Pakke videresendelsesrate (1 Gbps) 1488000 pps Pakke videresendelsesrate (100 Mbps) 148800 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Pakke bufferlager 0,512 MB Design Produktfarve Sort LED-indikatorer Aktivitet, Link, Strøm, Hastighed Sikkerhed LVD Præstation Plug and play Ja Ventilatorfri Ja Gennemsnitstid mellem fejl (MTBF) 564658 t Strømstyring DC indgangsspænding 12 V Indgangsstrøm 1 A Strømforbrug (maks.) 8,89 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Varmeafgivelse 30,32 BUT/t Vægt & størrelser Bredde 280 mm Dybde 110 mm Højde 25 mm Vægt 770 g Godkendelser Certificering CE, FCC, ICES 003, RCM Logistik data Harmoniseret systemkode (HS) 85176990
