Smart Management
Featuring management interfaces, including an industry-standard CLI, and Web-based UI, the DIS-200G Serie is easy to manage and provides the controls to help protect and shape your network.

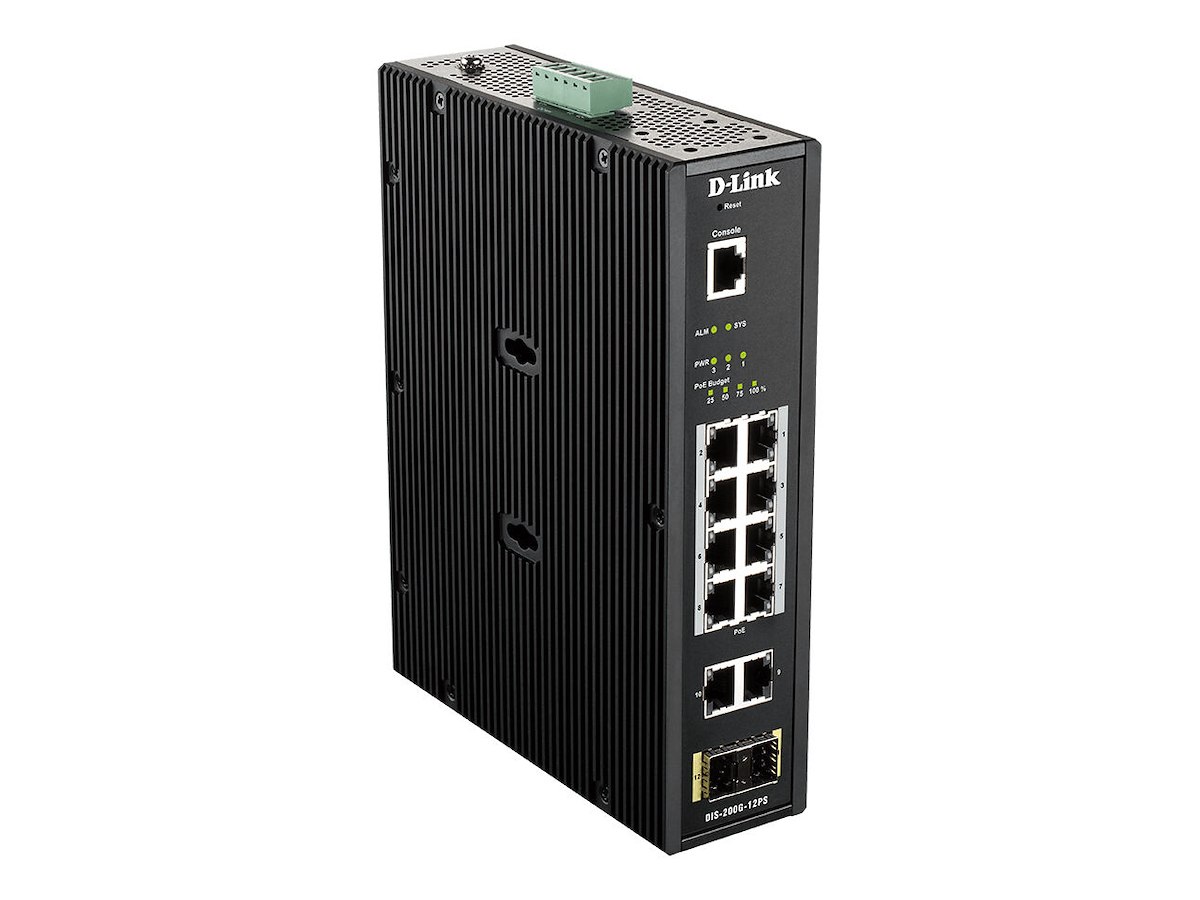

Gigabit Connectivity with PoE and SFP ports
Designed with 8 x 10/100/1000Base-T PoE ports, 2 x 10/100/1000Base-T ports, and 2 x SFP ports to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, electromagnetic, and high-capacity 6 kV surge protection on all copper ports to maximise network uptime in harsh deployment environments.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +65°C.
PoE Support
With its 240 W PoE+ power budget1, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.
High Redundancy and Reliability
ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged.
Enhanced IP Surveillance
Supports Auto-Surveillance VLAN (ASV), automatically detecting surveillance devices and putting them into a dedicated surveillance VLAN, increasing security of surveillance data, and giving the traffic a higher priority.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 48 x 210 x 171.2 mm.
| Administrationsfunktioner | |
| Switch-type | Administreret |
| Switch lag | L2 |
| Servicekvalitet support (QoS) | Ja |
| Webbaseret administration | Ja |
| Konfigurerer lokationsindstillinger (CLI) | Ja |
| System hændelseslog | Ja |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 10 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Gigabit Ethernet (kobber) porte, antal | 10 |
| Antal SFP modulslots | 2 |
| Port til konsol | RJ-45 |
| Netværk | |
| Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G understøttelse | Ingen |
| Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port-spejlning | Ja |
| Fuld duplex | Ja |
| Flowkontrol support | Ja |
| Link aggregering | Ja |
| Broadcast stormkontrol | Ja |
| Auto MDI/MDI-X | Ja |
| Spanning tree protokol | Ja |
| Auto-forhandling | Ja |
| Aktiv link opdagelse | Ja |
| VLAN understøttelse | Ja |
| Vituelle LAN funktioner | Voice VLAN, Tagged VLAN, Port-based VLAN |
| Antal VLAN'er | 4094 |
| Optisk fiber | |
| Fiber ethernet kabelteknologi | 1000BASE-X |
| Dataoverførsel | |
| MAC adresselabel | 8000 entries |
| Switch kapacitet | 24 Gbit/sek. |
| Hastighed for videresendelse | 17,85 Mpps |
| Opbevar-og-frem | Ja |
| Jumbo Frames support | Ja |
| Jumbo rammer | 9216 |
| Sikkerhed | |
| DHCP funktioner | DHCP client |
| IGMP snooping | Ja |
| Sikkerhedsalgoritmer | 802.1x RADIUS, SSL/TLS |
| Godkendelse | Portbaseret godkendelse |
| Godkendelsestype | RADIUS |
| Algoritmer for køplanlægning | SPQ, Weighted Round Robin (WRR) |
| Multicast funktioner | |
| Multicast-understøttelse | Ja |
| Protokoller | |
| Administrationsprotokoller | SNMP v1/v2c/v3, SNTP, Telnet |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Sort |
| Husmateriale | Metal |
| LED-indikatorer | Ja |
| Kode for international beskyttelse (IP) | IP30 |
| Kan monteres på væggen | Ja |
| DIN-skinne montering | Ja |
| Antal blæsere | 0 blæser(e) |
| Elektromagnetisk kompatibilitet | CISPR 22, FCC Part 15B Class A |
| Præstation | |
| Gennemsnitstid mellem fejl (MTBF) | 205689 t |
| Strømstyring | |
| DC indgangsspænding | 46 - 54 V |
| Strømforbrug (maks.) | 260 W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ja |
| Power over Ethernet (PoE) porte, antal | 8 |
| Power over Ethernet (PoE) effekt pr. port | 30 W |
| Total Power over Ethernet (PoE) | 240 W |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -40 - 65 °C |
| Opbevaringstemperatur (T-T) | -40 - 85 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
| Varmeafgivelse | 887,16 BUT/t |
| Vægt & størrelser | |
| Bredde | 171,2 mm |
| Dybde | 53 mm |
| Højde | 210 mm |
| Vægt | 1,76 kg |
| Godkendelser | |
| Certificering | CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
