Varenummer: ES0154-AX-G
Mere information
-

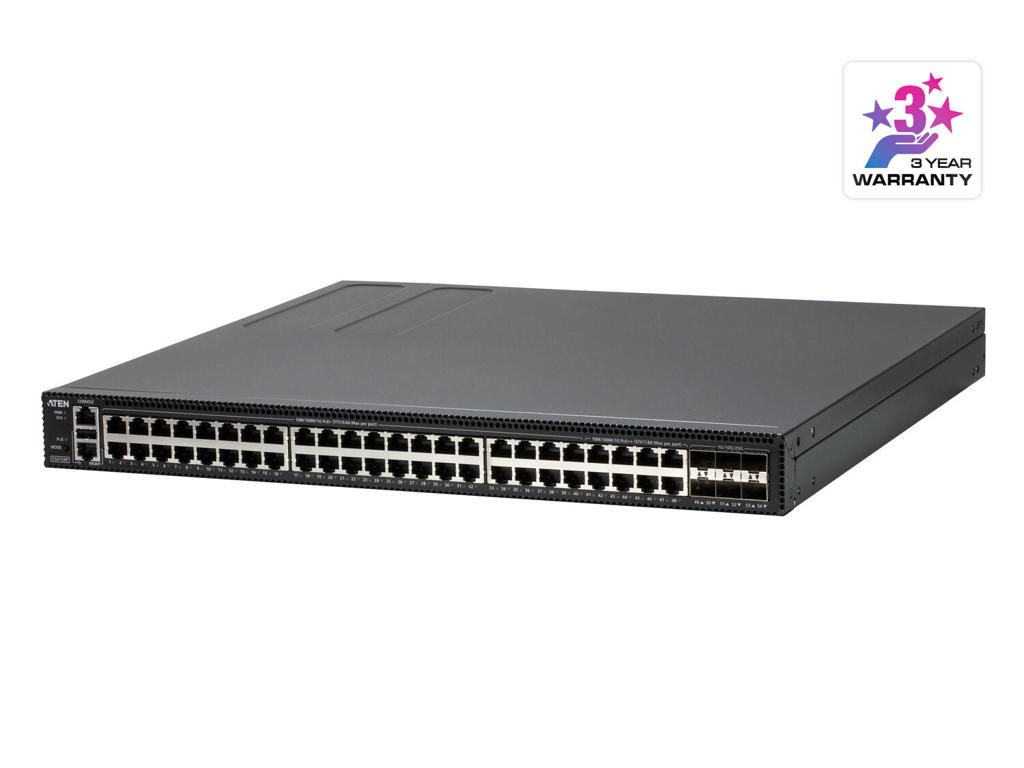

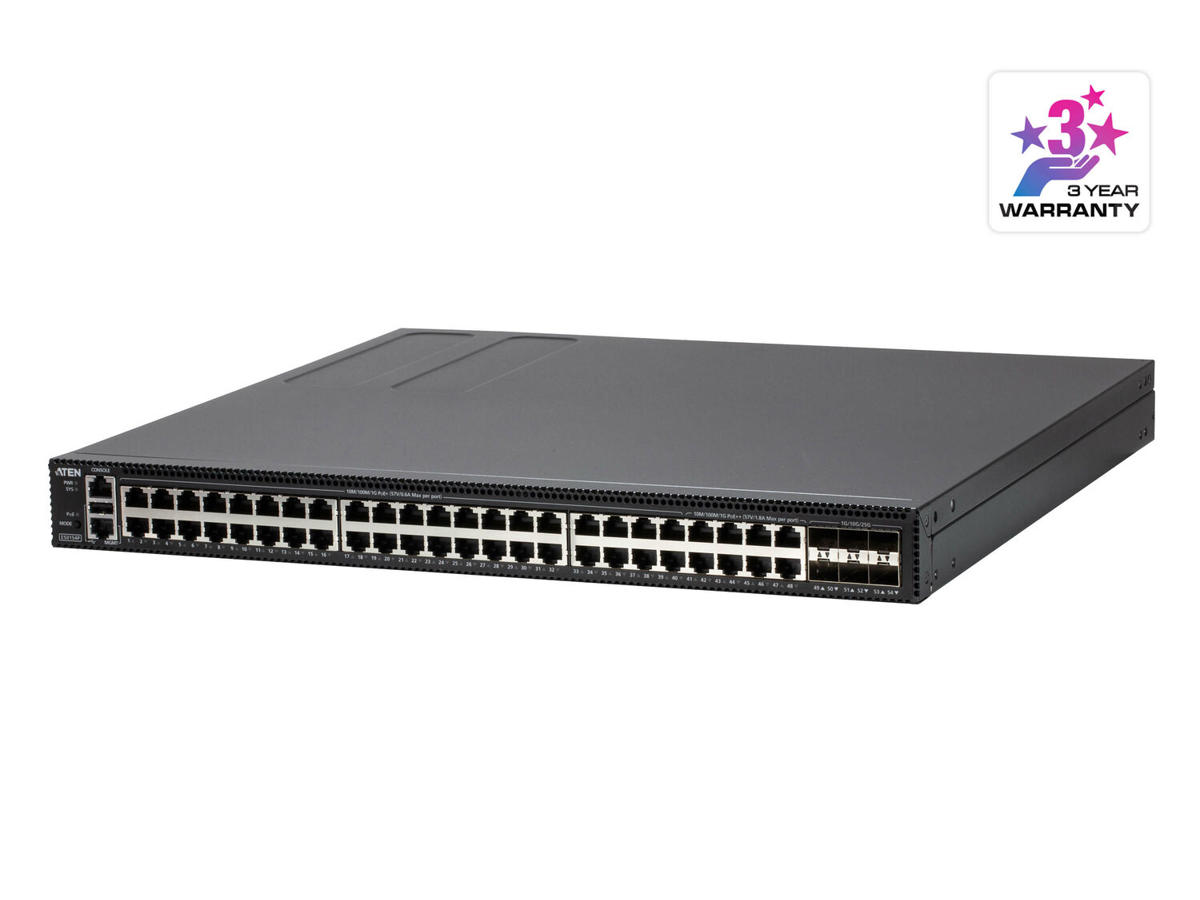

The ES0154P 54-Port Layer 2+ Gigabit Ethernet Managed Switch is ideal for installation with ATEN KVM over IP products. It simplifies the process of building OT infrastructure with the ATEN KVM over IP series by eliminating the complexities of setup. It provides a high-performance 54-port configuration, a complete array of L2+ features, and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support, and LLDP, making it a versatile solution for enhancing network performance. It offers a combination of SFP28 (fiber) and RJ-45 (copper) ports for servicing a range of network needs.
The ES0154P supports 6 (1G/10G/25G) SFP28, 48 (10M/100M/1G) RJ-45 with PoE+ (Support 802.3at/af) ports, and PoE++ (Support 802.3bt) ports (41-48 ports only). The ES0154P is equipped with Power over Ethernet (PoE) functionality, featuring a substantial 740 Watts power budget distributed across its 48 RJ-45 ports. This eliminates the necessity for external power adapters and leads to a substantial reduction in power configuration expenses.
Deploying the ES0154P is quick and hassle-free. Its plug-and-play design eliminates the need for software installation or device configuration. Just connect the transmitters and receivers to the ES0154P using Cat 5e/6 cables. With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0154P serves as an ideal network switch solution. It is particularly valuable in applications where connected devices play a critical role in network operation, including OT infrastructure for both SMBs and enterprises. -
Administrationsfunktioner Switch-type Administreret Switch lag L2+ Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal SFP modulslots 6 Fiber optisk strømstik SFP28 Port til konsol RJ-45 Antal USB 2.0-porte 1 Netværk Netværksstandarder IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 10G understøttelse Ja Flowkontrol support Ja Auto-forhandling Ja Dataoverførsel MAC adresselabel 32000 entries Switch kapacitet 396 Gbit/sek. Hastighed for videresendelse 295 Mpps Jumbo Frames support Ja Jumbo rammer 10000 Sikkerhed IGMP snooping Ja Protokoller Understøttede netværksprotokoller IGMP v1/v2/v3, IGMP v1/v2 Design Stativ-montering Ja Produktfarve Sort Husmateriale Metal Præstation Intern hukommelse 1000 MB Flashhukommelse 256 MB Strømstyring Strømkilde Vekselstrøm Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Strømforbrug (maks.) 54 W Driftsbetingelser Driftstemperatur (T-T) -5 - 45 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 420 mm Dybde 442 mm Højde 43,6 mm Vægt 4,68 kg Emballeringsdata Pakkebredde 550 mm Pakkedybde 650 mm Pakkehøjde 150 mm Pakkevægt 7,18 kg Logistik data Oprindelsesland Taiwan Hovedkassens bredde (udvendigt) 550 mm Hovedkassens længde (udvendigt) 650 mm Hovedkassen højde (udvendigt) 150 mm Harmoniseret systemkode (HS) 85176200 Hovedkassens bruttovægt (udvendigt) 7,18 kg
