Varenummer: MS108EUP-100EUS
Mere information
-

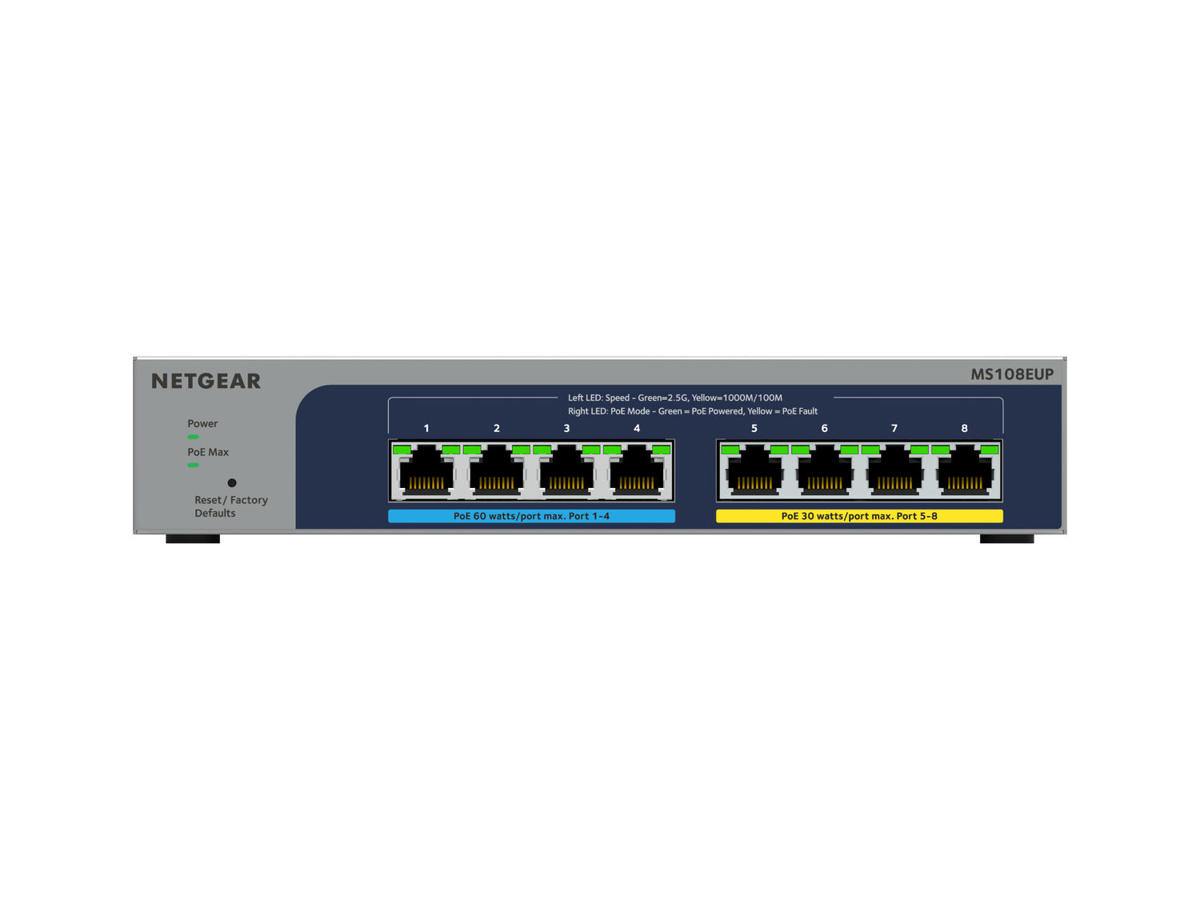

Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more.
Multi-Gigabit Ethernet
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.
PoE Support
4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.
Advanced PoE Controls
Manage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.
Non-Blocking Switching
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.
Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box. -
Administrationsfunktioner Switch-type Administreret Switch lag L2/L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype 2.5G Ethernet (100/1000/2500) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 100BASE-T, 1000BASE-T Port-spejlning Ja Fuld duplex Ja Flowkontrol support Ja Link aggregering Ja Begrænsning af hastighed Ja VLAN understøttelse Ja Vituelle LAN funktioner Port-based VLAN, Tagged VLAN Antal VLAN'er 64 Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 40 Gbit/sek. Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 12000 Pakke bufferlager 1,5 MB Sikkerhed DHCP funktioner DHCP client IGMP snooping Ja Beskyttelse af adgangskode Ja Algoritmer for køplanlægning Strict Priority Queue (SPQ), Weighted Round Robin (WRR) Multicast funktioner Multicast-understøttelse Ja Antal filtrerede multicast-grupper 128 Design Stativ-montering Ingen Stabelbar Ingen Produktfarve Grå Husmateriale Metal LED-indikatorer Ja Præstation Gennemsnitstid mellem fejl (MTBF) 373644 t Strømstyring Strømkilde PoE Strømforsyning inkluderet Ja Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Total Power over Ethernet (PoE) 230 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Relativ luftfugtighed ved opbevaring (H-H) 0 - 95% Driftshøjde 0 - 3000 m Ikke-drift højde 0 - 3000 m Vægt & størrelser Bredde 210 mm Dybde 140 mm Højde 40 mm Vægt 900 g Godkendelser Certificering CE FCC 15 B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI Logistik data Harmoniseret systemkode (HS) 85176990
