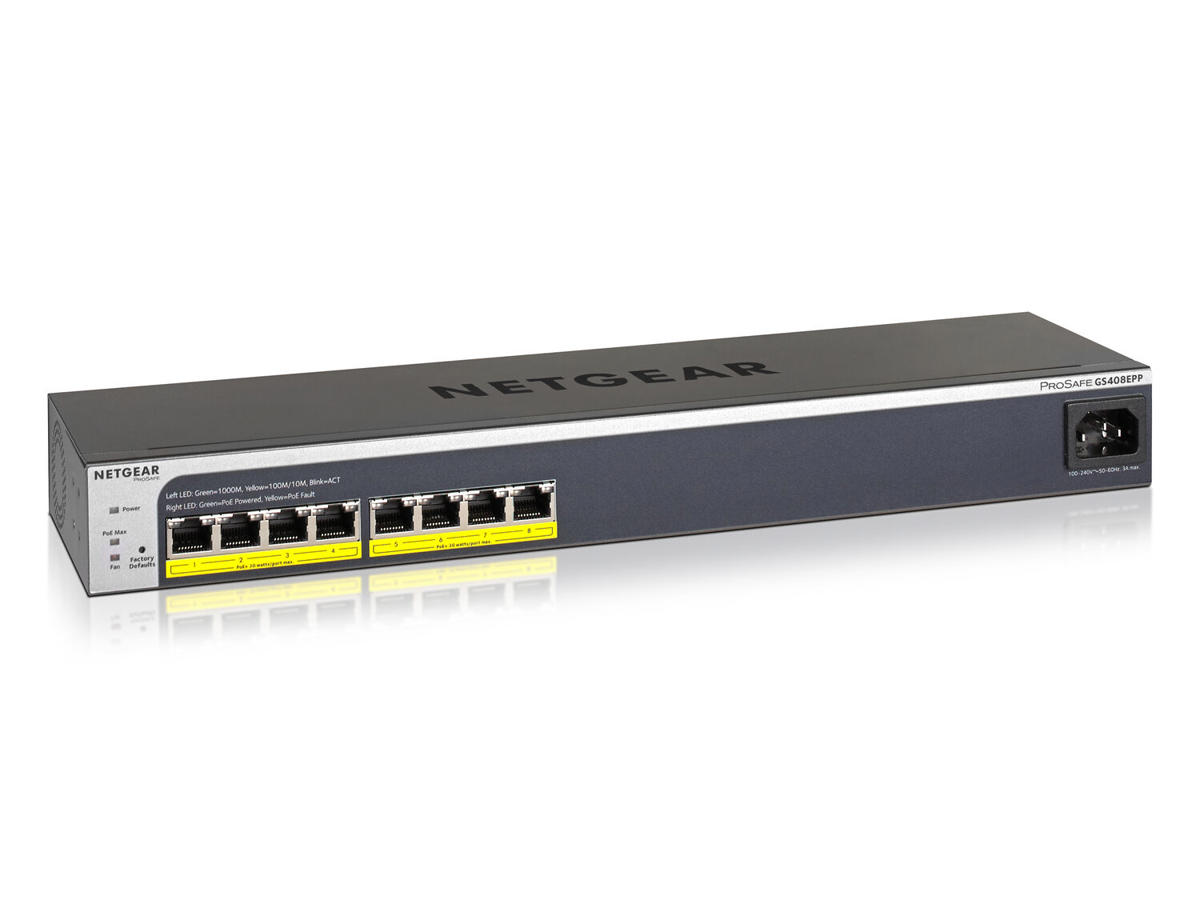

The NETGEAR Easy-Mount Switch Family Overview The NETGEAR Easy-Mount Switch allows you to put more PoE/PoE+ ports Virtually Anywhere™ with its unique mounting system. The Easy-Mount Switch family comes with a full set of software features such as traffic prioritization, VLANs, QoS and PoE power allocation. Moreover the Easy-Mount switches comes with Energy Efficient Ethernet for maximum power savings. Easy-Mount and Low Noise Operation Deploy your PoE/PoE+ switch closest to your PoE/PoE+ devices and put your PoE/PoE+ ports exactly where you need them. Install your ports up in the ceiling, strapped to a pole, mounted under a desk or tabletop. If you wish you also can rack mount the GS408EPP switch on a 19-inch standard rack. You can even rack mount 2 GS408EPP switches back to back in a single 1U. Thanks to the active fans the GS408EPP is a silent switch, well below offices ambient background noise. PoE/PoE+ Support Power-Over-Ethernet (PoE) option available for powering IP Security Cameras, VOIP phones, wireless access points, and other PD-powered devices. With eight (8) PoE/PoE+ Gigabit Ethernet ports (802.3af, 802.3at) providing up to 30W per port, and a power budget of 124W, provide power and connectivity across one wire to power-hungry PoE devices like 802.11ac Wave 2 Access Points, Pan/Tilt/Zoom/HD Security Cameras, security door locks, and other IoT devices. Easy-Mount "Virtually Anywhere" Mounting System The innovative mounting system gives you the flexibility to place the Easy-Mount Switch in locations where other switches will not go. Whether it's directly on a wall, strapped to a pole, under the meeting table in a conference room or in a server closet, vertical or horizontal, flat or perpendicular, the unique mounting system allow you to control exactly how and where your ports and cables are deployed. Networking Management Features The Easy-Mount Switches can go beyond plug-and-play connectivity with additional Switch networking features, allowing businesses to segment the network with VLANs or prioritize voice and video traffic with QoS. IGMP Snooping allows for optimized multimedia delivery and port trunking adds redundancy to uplinks and servers. Setup and configuration is simple using the web browser-based configuration GUI. NETGEAR Warranty Easy-Mount switches are backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2 |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Netværk | |
Netværksstandarder | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Port-spejlning | Ja |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Link aggregering | Ja |
Begrænsning af hastighed | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Voice VLAN, Tagged VLAN, Port-based VLAN |
Antal VLAN'er | 64 |
Dataoverførsel | |
MAC adresselabel | 4000 entries |
Switch kapacitet | 16 Gbit/sek. |
Hastighed for videresendelse | 11,9 Mpps |
Opbevar-og-frem | Ja |
Latens (10-100 Mbps) | 9,1 µs |
Latens (1 Gbps) | 2,7 µs |
Antal køer | 4 |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Sikkerhed | |
DHCP funktioner | DHCP client |
IGMP snooping | Ja |
Beskyttelse af adgangskode | Ja |
DoS angrebsforebyggelse | Ja |
Algoritmer for køplanlægning | Weighted Round Robin (WRR) |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Antal filtrerede multicast-grupper | 128 |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort, Grå |
LED-indikatorer | Aktivitet, Link, PoE, Strøm, Hastighed, Status |
Antal blæsere | 1 blæser(e) |
Sikkerhed | CB; IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013; UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013; AN/NZS 60950.1:2015; EAC |
Elektromagnetisk kompatibilitet | CE; 47 CFR FCC 15, B, A; ICES-003:2016 6, A; ANSI C63.4:2014; EN 55022:2010 + AC:2011, A EN 55024:2010; EN 61000-3-2:2014, A; EN 6100-3-3:2013; CISPR 22:2008, A; AS/NZS CISPR 22:2009 + A1:2010, A; VCCI V-3/2015.04, A; V-4/2012.4; EAC; KC; CNS 13438 |
Præstation | |
Støjniveau | 26,9 dB |
Firmware kan opgraderes | Ja |
Bufferstørrelse | 192 KB |
Gennemsnitstid mellem fejl (MTBF) | 2715369 t |
Strømstyring | |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Indgangsstrøm | 2 A |
Strømforbrug (maks.) | 148 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 8 |
Total Power over Ethernet (PoE) | 124 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
Driftshøjde | 0 - 3000 m |
Ikke-drift højde | 0 - 3000 m |
Varmeafgivelse | 505,27 BUT/t |
Vægt & størrelser | |
Bredde | 380 mm |
Dybde | 100 mm |
Højde | 43,2 mm |
Vægt | 1,6 kg |
Emballeringsdata | |
Hurtig start guide | Ja |
Monteringsbeslag inkluderet | Ja |
Rack monteringskit | Ja |
