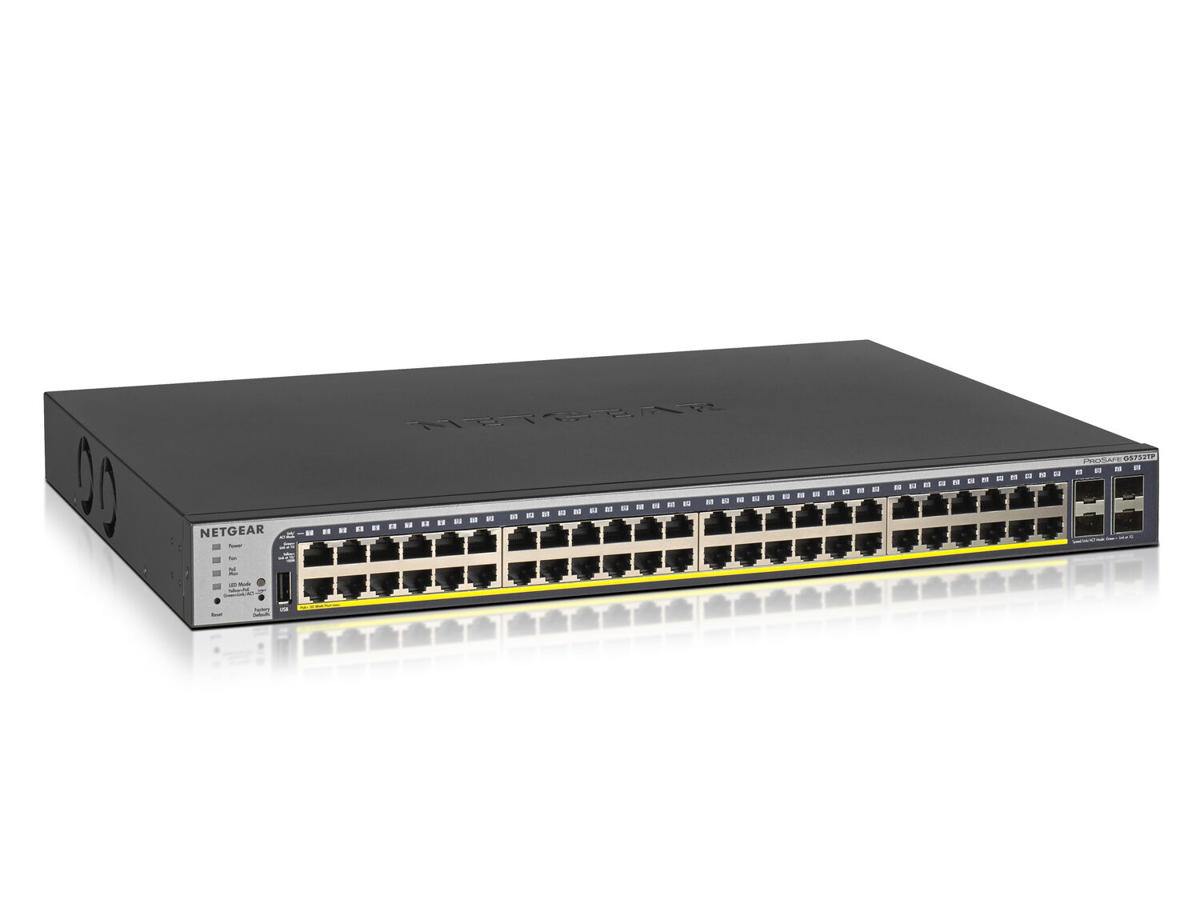

Varenummer: GS752TP-300EUS
Mere information
-
All ports PoE+ with up to 760W PoE budget – Select your new network engine!
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.
The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.
Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 31dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 35dBA, the GS752TPv2 at 38dBA and the GS752TPP at 43dBA -
Administrationsfunktioner Switch-type Administreret Switch lag L2/L3/L4 Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP modulslots 4 Antal USB 2.0-porte 1 Netværk 10G understøttelse Ingen VLAN understøttelse Ja Antal VLAN'er 256 Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 104 Gbit/sek. Latens (1 Gbps) 3,35 µs Statisk rute Ja Pakke bufferlager 1,5 MB Sikkerhed Adgangskontrolliste (ACL) Ja Adgangskontrolliste (ACL) regler 100 Multicast funktioner Multicast-understøttelse Ja MAC-adresse tabel (multicast) 512 entries Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort LED-indikatorer Ja Antal blæsere 2 blæser(e) Præstation Indbygget processer Ja Processorfrekvens 700 MHz Intern hukommelse 128 MB Flashhukommelse 32 MB Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 48 Total Power over Ethernet (PoE) 380 W
