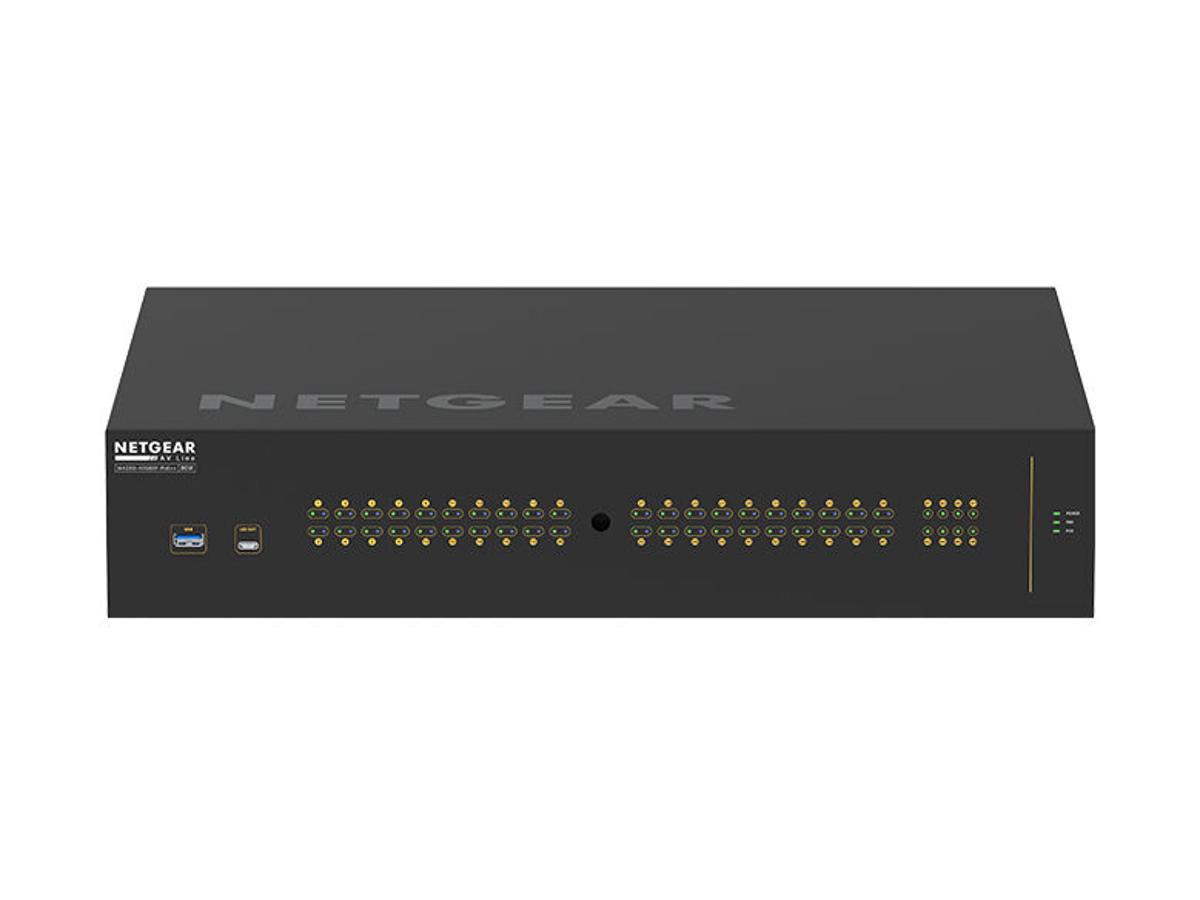

NETGEAR M4250-40G8XF-PoE++ Administreret L2/L3 Gigabit Ethernet (10/100/1000) Strøm over Ethernet (PoE) 2U Sort
Varenummer: GSM4248UX-100EUS
Kontakt kundeservice for yderligere information om køb af dette produkt.
NETGEAR M4250-40G8XF-PoE++. Switch-type: Administreret, Switch lag: L2/L3. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 40, Antal USB 2.0-porte: 1. MAC adresselabel: 16000 entries, Switch kapacitet: 240 Gbit/sek.. Netværksstandarder: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Strøm over Ethernet (PoE). Stativ-montering, Formfaktor: 2U


Mere information
  • Pre-configured for out-of-the-box use
    NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations

    Dedicated AV web-based GUI interface
    Unique interface designed for the AV professional with color-coded, port-based profiles

    Profiles for common audio protocols
    Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

    Video profiles built-in
    Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed

    Unique Automatic Configuration
    Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

    Easier configuration with new AV GUI
    The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.

    Use in noise-sensitive environments
    Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.

    Get up and running fast with little engineering time required
    Our NETGEAR IGMP PlusTM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations

    Multiple mounting options provide ultimate flexibility
    Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.

    M4250 AV Line Switches
    An entirely new series of switches developed and engineered for the growing AV over IP market.

  • Administrationsfunktioner
    Switch-type Administreret
    Switch lag L2/L3
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 40
    Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
    Antal SFP + modulslots 8
    Antal USB 2.0-porte 1
    Netværk
    Netværksstandarder IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
    10G understøttelse Ja
    Dataoverførsel
    MAC adresselabel 16000 entries
    Switch kapacitet 240 Gbit/sek.
    Gennnemløb 178,56 Mpps
    Latens (1 Gbps) 2,78 µs
    Latens (10 Gps) 0,73 µs
    Jumbo Frames support Ja
    Design
    Stativ-montering Ja
    Formfaktor 2U
    Produktfarve Sort
    Præstation
    Støjniveau 60 dB
    Ventilatorfri Ja
    Strømstyring
    Strømforsyning inkluderet Ja
    Strømforbrug (typisk) 912 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ja
    Power over Ethernet (PoE) -type understøttet Active PoE
    Power over Ethernet plus (PoE+) porte, antal 40
    Total Power over Ethernet (PoE) 2880 W
    Driftsbetingelser
    Varmeafgivelse 3113,57 BUT/t
    Vægt & størrelser
    Bredde 440 mm
    Dybde 86,4 mm
    Højde 350 mm
    Vægt 10,3 kg
    Emballage indhold
    Kabler inkluderet LAN (RJ-45), USB Type-C
    Brugervejledning Ja
    Rack monteringskit Ja
    Emballeringsdata
    Rack skinner Ja
    Logistik data
    Harmoniseret systemkode (HS) 85176990
