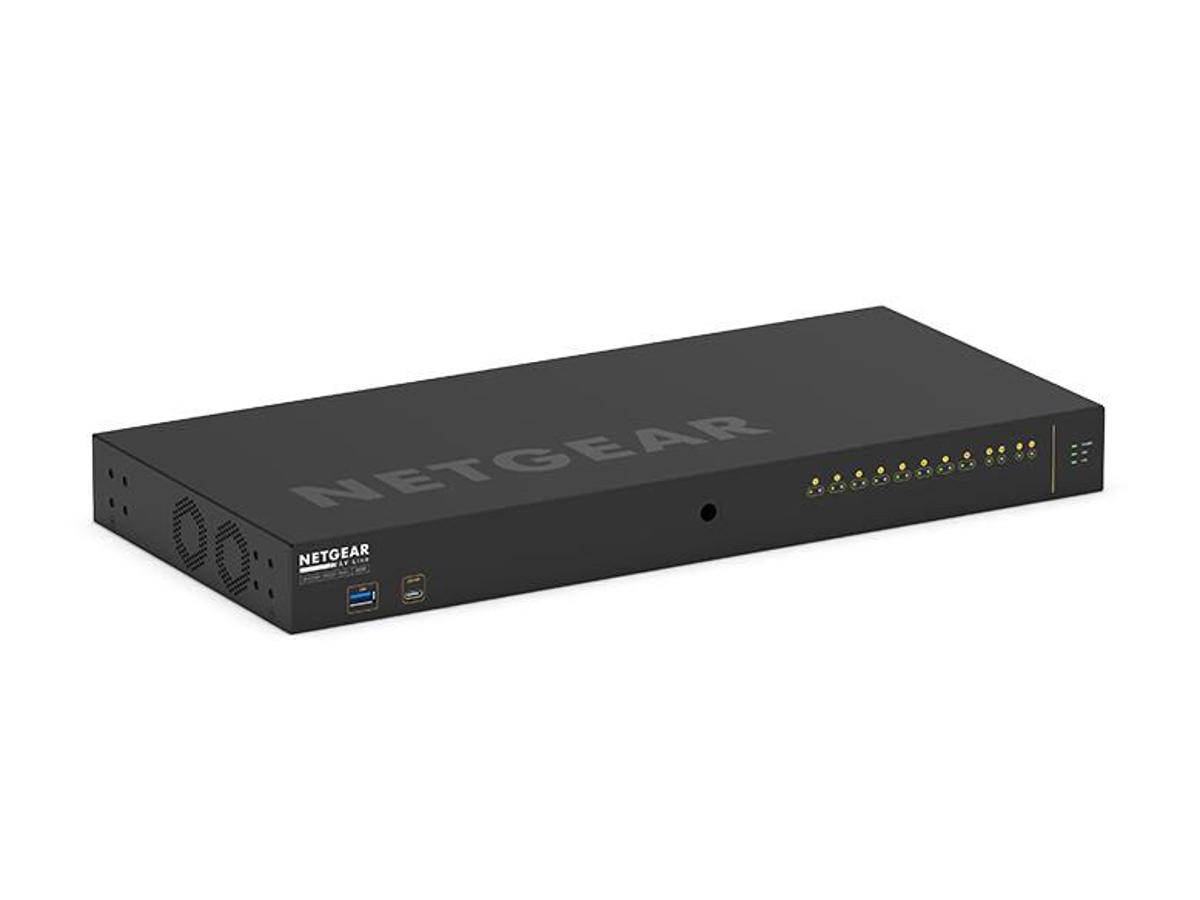

NETGEAR GSM4212P-111EUS netværksswitch Administreret L2/L3 Gigabit Ethernet (10/100/1000) Strøm over Ethernet (PoE) 1U Sort
Varenummer: GSM4212P-111EUS
Mere information
-
Designed with input from industry professionals, this switch is engineered for 1G AV over IP. Enjoy rear-facing ports that ensure a clean integration in AV racks, and pre-configuration for out-of-the-box functionality.
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY
Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks. -
Administrationsfunktioner Switch-type Administreret Switch lag L2/L3 Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 10 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP modulslots 2 Netværk Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x 10G understøttelse Ingen Fuld duplex Ja Link aggregering Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja Spanning tree protokol Ja VLAN understøttelse Ja Vituelle LAN funktioner MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN Antal VLAN'er 4093 Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 24 Gbit/sek. Gennnemløb 17,86 Mpps Opbevar-og-frem Ja Latens (1 Gbps) 2,27 µs Sikkerhed DHCP funktioner DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping Adgangskontrolliste (ACL) Ja IGMP snooping Ja SSH/SSL support Ja Loop beskyttelse Ja BPDU filtrering/beskyttelse Ja Godkendelse MAC-baseret godkendelse Godkendelsestype RADIUS Multicast funktioner Multicast-understøttelse Ja IPv4 multicast indtastninger 2000 IPv6 multicast indtastninger 2000 Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort LED-indikatorer PoE, Strøm, Status Præstation Indbygget processer Ja Processormodel ARM Cortex-A9 Processorfrekvens 1250 MHz Intern hukommelse 2048 MB Støjniveau 30,06 dB Gennemsnitstid mellem fejl (MTBF) 778769 t Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 150 W Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Relativ luftfugtighed ved opbevaring (H-H) 0 - 95% Driftshøjde 0 - 3000 m Ikke-drift højde 0 - 3000 m Varmeafgivelse 559,555 BUT/t Vægt & størrelser Bredde 440 mm Dybde 200 mm Højde 43,2 mm Vægt 2,85 kg Emballage indhold Brugervejledning Ja
