Varenummer: TD2760
Mere information
-

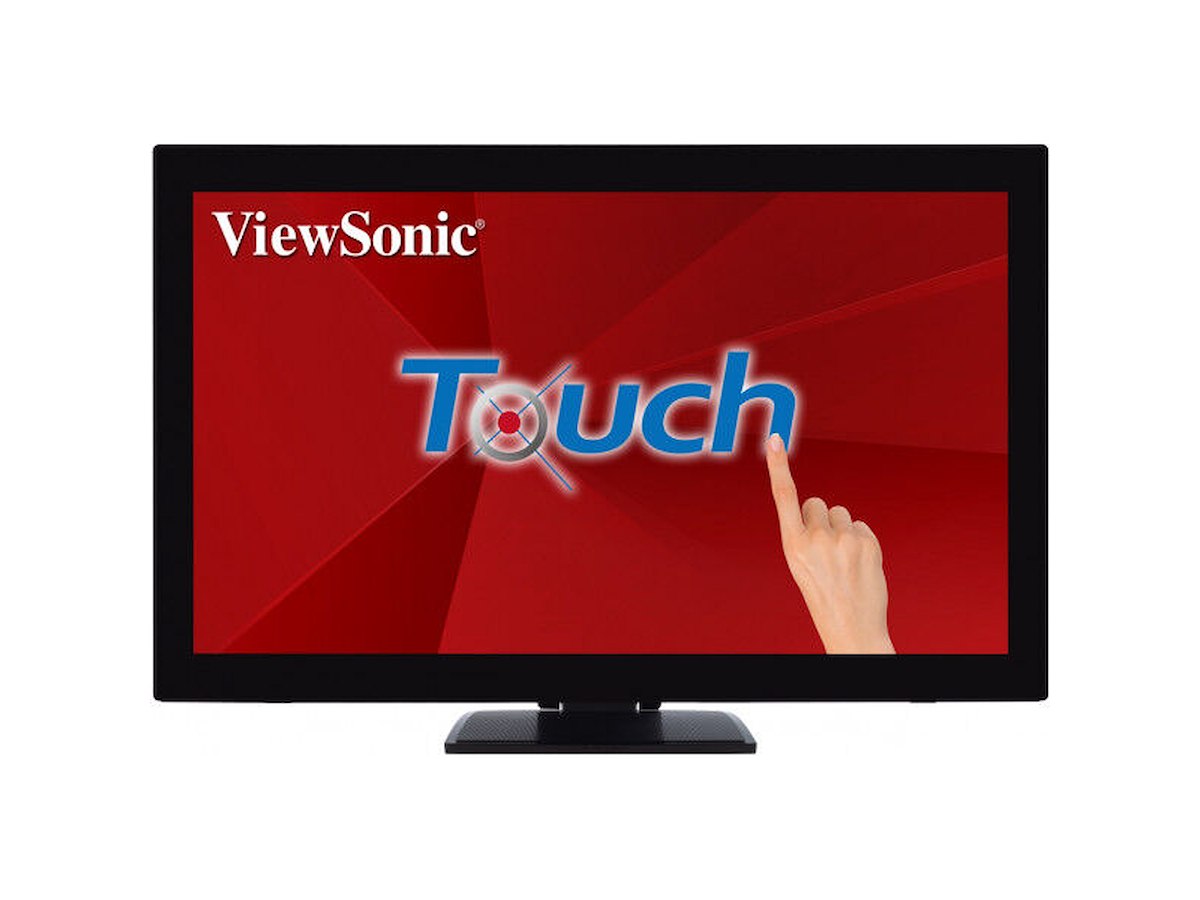

The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.
10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller. -
Display Skærm diagonal 68,6 cm (27") Skærmopløsning 1920 x 1080 pixel Naturligt aspektforhold 16:9 Skærmteknologi LED Berøringsskærm Ja HD-type Fuld HD Paneltype VA Responstid 6 ms Skærm form Flad Kontrastforhold (typisk) 3000:1 Vis antal farver 16,78 millioner farver LED-baggrundsbelysning Ja Type af baggrundslys LED Berøringsskærmstype Multibruger Berøringsskærm teknologi Projekteret kapacitivt systemet Berøringsteknologi Multi-touch Antal simultane touchpunkter 10 Skærmens lysstyrke 300 cd/m² Antirefleksskærm Ja Billedformat 16:9 Kontrastforhold (dynamisk) 50000000:1 Synsvinkel, horisontal 178° Synsvinkel, vertikal 178° Pixel pitch 0,311 x 0,311 mm Horisontal scanningsområde 15 - 90 kHz Vertikalt scanningsområde 50 - 76 Hz Synlig størrelse, horisontal 59,8 cm Synlig størrelse, vertikal 33,6 cm Skærm diagonal (metrisk) 68,58 cm Overfladehårdhed 6H Separat H/V-synkronisering Ja Præstation NVIDIA G-SYNC Ingen AMD FreeSync Ingen Multimedie Indbyggede højttaler(e) Ja Indbygget kamera Ingen Antal højttalere 2 Udgangseffekt (RMS) 4 W Indbygget mikrofon Ingen Design Produktfarve Sort Glas tykkelse 1,88 mm Porte & Grænseflader Indbygget USB-hub Ja HDMI Ja USB-hub-version 3.2 Gen 1 (3.1 Gen 1) USB upstream port type USB Type-B Antal upstream-porte 1 Antal USB Type-B opstrømsporte 1 Antal USB type-A downstream-porte 2 Antal VGA-porte (D-sub) 1 Antal HDMI-porte 1 HDMI-version 1.4 Antal DisplayPorts 1 DisplayPort-version 1.2 Lydindgang 1 Lydudgang 1 HDCP Ja RS-232-porte 1 Ergonomisk VESA montering Ja Slot til kabellås Ja Panel montering grænseflade 100 x 100 mm Kan monteres på væggen Ja Kabellåseslids type Kensington Hældningsindstilling Ja Hældningsvinkelområde -4 - 90° Skærmvisning (OSD) Ja Antal OSD sprog 14 Strømstyring Energieffektivitetsklasse (SDR) F Energiforbrug (SDR) pr. 1000 timer 19 kWh Strømforbrug (typisk) 26 W Strømforbrug (standby) 0,3 W Strømforbrug (slukket) 0,3 W Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforsyningstype Vekselstrøm Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Relativ luftfugtighed ved drift (H-H) 20 - 90% Vægt & størrelser Bredde (med stativ) 660 mm Dybde (med stativ) 239 mm Højde (med stativ) 443 mm Vægt (med stativ) 7,9 kg Bredde (uden stativ) 660 mm Dybde (uden stativ) 58 mm Højde (uden stativ) 410 mm Vægt (uden stativ) 5,5 kg Emballeringsdata Pakkebredde 753 mm Pakkedybde 204 mm Pakkehøjde 525 mm Pakkevægt 10,2 kg Emballage indhold Kabler inkluderet Strøm, VGA, HDMI, USB, Lyd Hurtig start guide Ja Andre funktioner Vægt 7,9 kg Gennemsnitstid mellem fejl (MTBF) 30000 t Certificering MX-CoC, Mexico Energy, CE, CE EMC, CB Medfølgende AC-adaptertype Ja Logistik data Produkter pr. hovedkasse (udvendigt) 1 stk Pallens bruttobredde 120 cm Pallens bruttolængde 100 cm Pallens bruttohøjde 2,24 m Harmoniseret systemkode (HS) 8528521000
