Varenummer: TD2423
Mere information
-

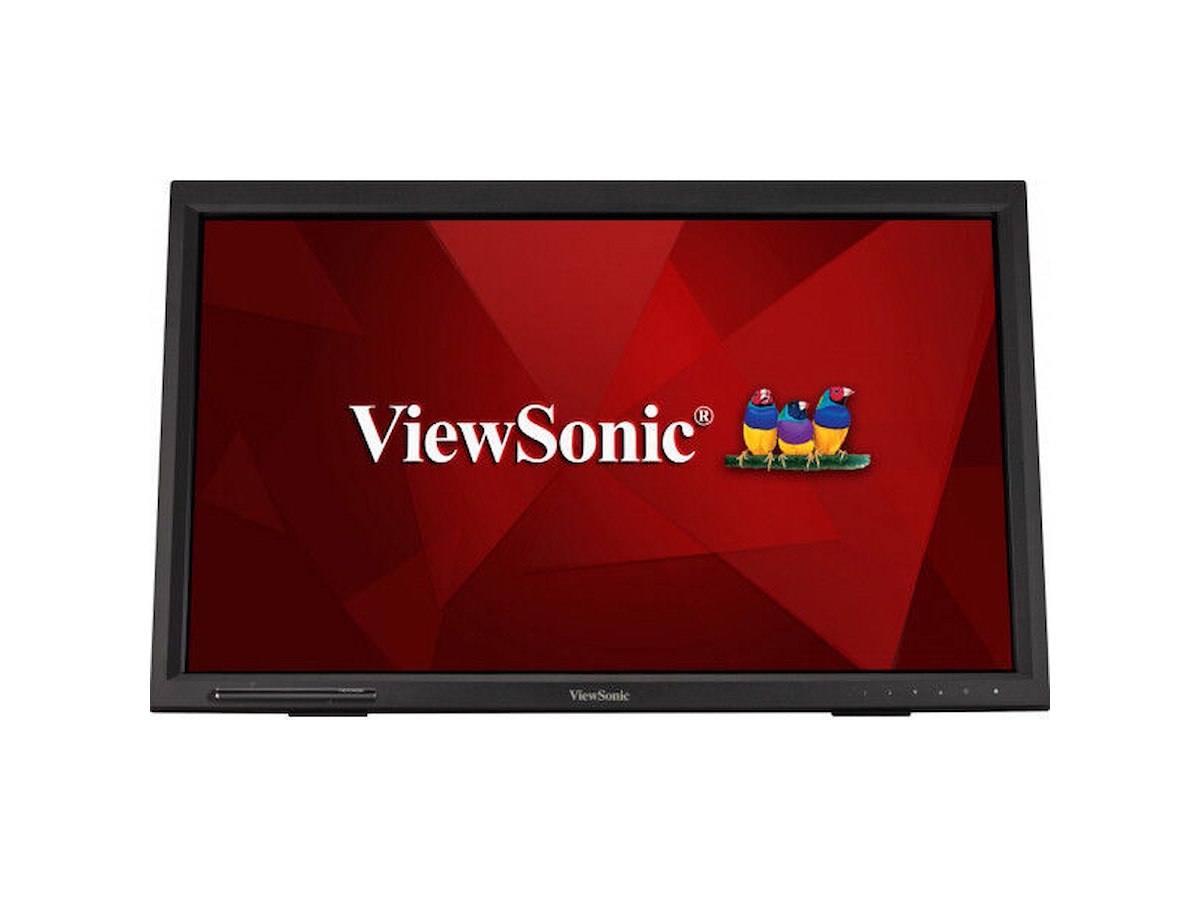

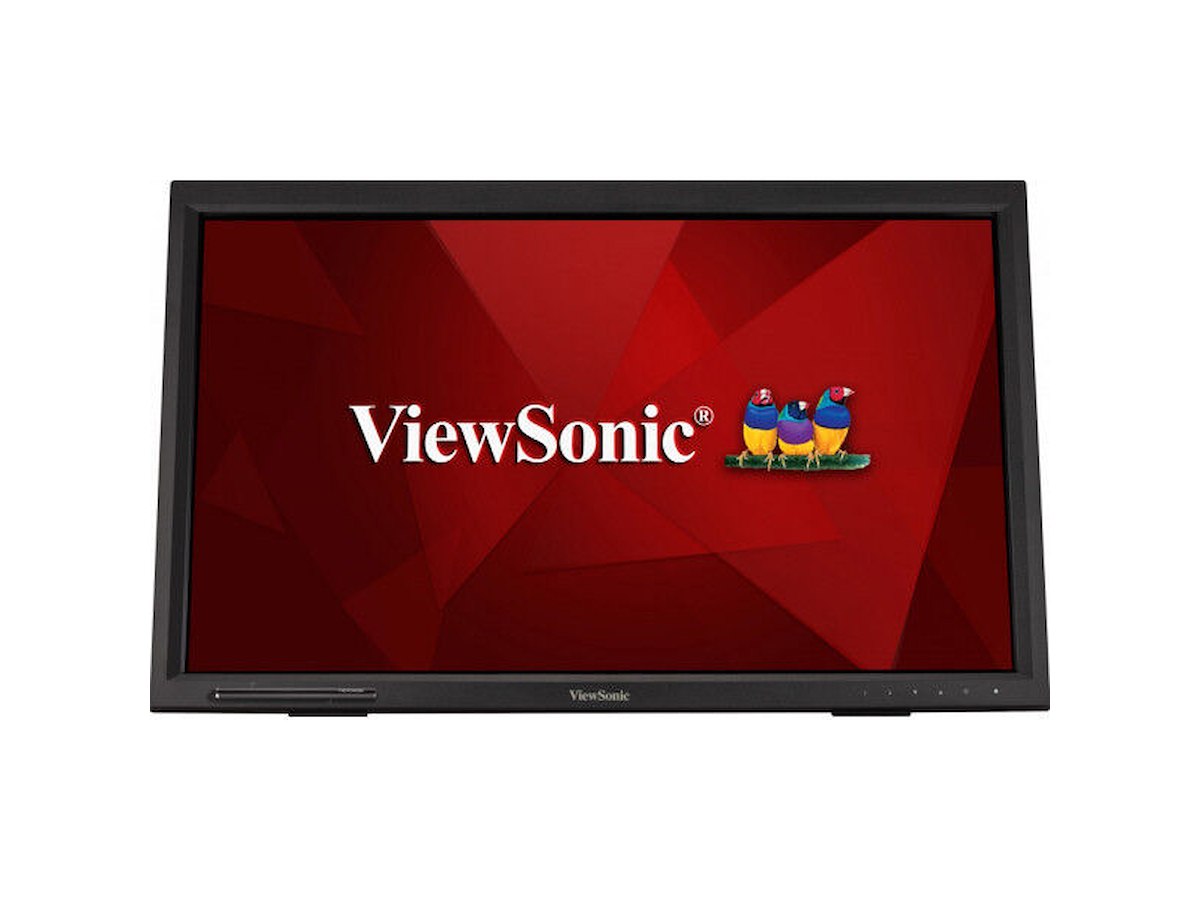

The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
7H Hardness Screen
Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Full HD 1080p Resolution
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use. -
Display Skærm diagonal 59,9 cm (23.6") Skærmopløsning 1920 x 1080 pixel Naturligt aspektforhold 16:9 Skærmteknologi LED Berøringsskærm Ja HD-type Fuld HD Paneltype VA Responstid 7 ms Skærm form Flad Kontrastforhold (typisk) 1000:1 Maksimal opdateringshastighed 60 Hz Vis antal farver 16,78 millioner farver Berøringsskærmstype Multibruger Berøringsskærm teknologi Infrarød Berøringsteknologi Multi-touch Antal simultane touchpunkter 10 Skærmens lysstyrke 250 cd/m² Synsvinkel, horisontal 178° Synsvinkel, vertikal 178° Pixel pitch 0,271 x 0,271 mm Digital horisontal frekvens 24 - 82 kHz Digital vertikal frekvens 50 - 75 Hz Skærm diagonal (metrisk) 59,94 cm Præstation NVIDIA G-SYNC Ingen AMD FreeSync Ingen Multimedie Indbyggede højttaler(e) Ja Indbygget kamera Ingen Antal højttalere 2 Udgangseffekt (RMS) 4 W Indbygget mikrofon Ingen Design Produktfarve Sort Glas tykkelse 1,85 mm Porte & Grænseflader Indbygget USB-hub Ja HDMI Ja USB upstream port type USB Type-B Antal upstream-porte 1 Antal USB type-A downstream-porte 2 Antal VGA-porte (D-sub) 1 DVI-port Ja Antal DVI-D-porte 1 Antal HDMI-porte 1 HDMI-version 1.4 Lydindgang 1 Lydudgang 1 HDCP Ja Ergonomisk VESA montering Ja Slot til kabellås Ja Panel montering grænseflade 100 x 100 mm Kan monteres på væggen Ja Kabellåseslids type Kensington Hældningsindstilling Ja Hældningsvinkelområde 22 - 38° Strømstyring Energieffektivitetsklasse (SDR) D Energiforbrug (SDR) pr. 1000 timer 14 kWh Strømforbrug (typisk) 15,5 W Strømforbrug (standby) 0,5 W Strømforbrug (maks.) 16,5 W Vekselstrømsindgangsspænding 100-240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforsyningstype Vekselstrøm Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Relativ luftfugtighed ved drift (H-H) 20 - 90% Vægt & størrelser Bredde (med stativ) 571 mm Dybde (med stativ) 101 mm Højde (med stativ) 348 mm Vægt (med stativ) 5,2 kg Bredde (uden stativ) 571 mm Dybde (uden stativ) 61 mm Højde (uden stativ) 348 mm Vægt (uden stativ) 4,7 kg Emballeringsdata Pakkebredde 645 mm Pakkedybde 166 mm Pakkehøjde 422 mm Pakkevægt 7 kg Emballage indhold Kabler inkluderet Vekselstrøm, Lyd (3ˌ5 mm), HDMI, USB Type-A til USB Type-B Bæredygtighed Bæredygtighedscertifikater EPEAT Silver Andre funktioner Vis synligt område (HxL) 521 x 293 mm Vægt 5,2 kg Compliance-certifikater CE, REACH, RoHS Certificering cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP Logistik data Pallens bruttobredde 120 cm Pallens bruttolængde 100 cm Pallens bruttohøjde 2,24 m Produkter pr. hovedkasse (udvendigt) 1 stk Harmoniseret systemkode (HS) 8528521000
