Varenummer: TD2230
Mere information
-

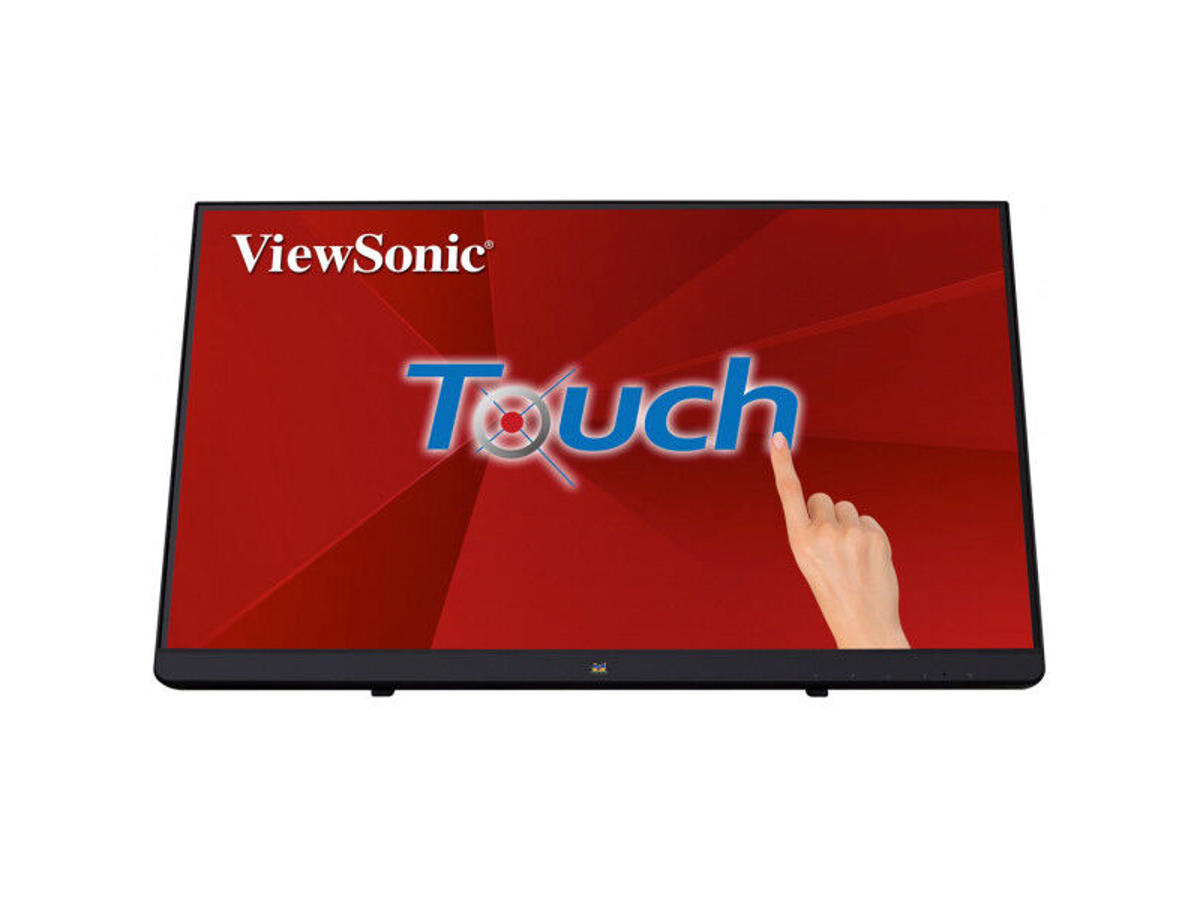

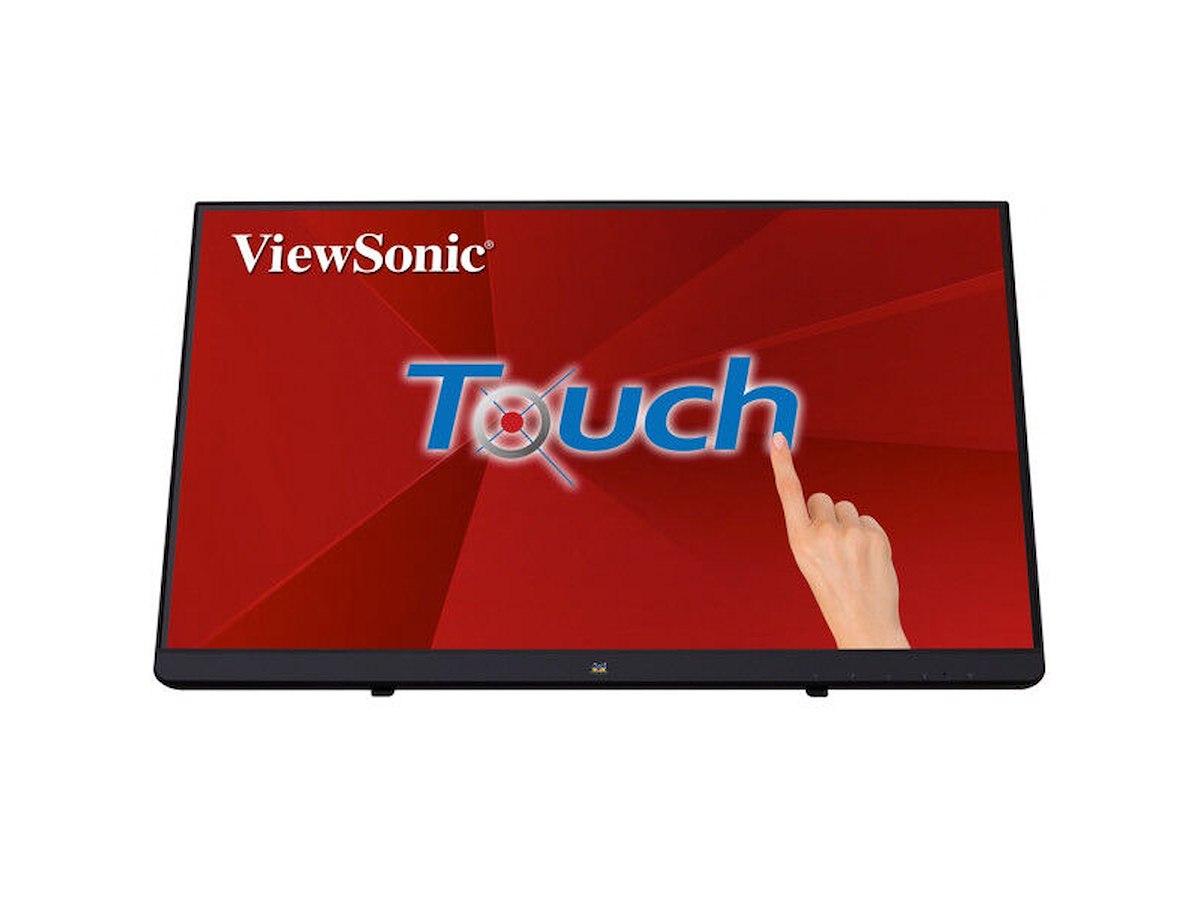

10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
SuperClear IPS Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.
Versatile Connectivity
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Durable, Scratch-resistant Screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.
Stable Bookstand Design
A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilted or laid completely flat on a tabletop for a more comfortable work environment.
Enhanced ViewingComfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Cross-platform Compatibility
Cross compatibility with a wide range of operating systems include Windows 10, and certain Android and Linux versions.
VESA-CompatibleMount
Mount the monitor as you see fit using its convenient VESA-compatible mount design.
3-year LimitedWarranty
Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty. -
Display Skærm diagonal 54,6 cm (21.5") Skærmopløsning 1920 x 1080 pixel Naturligt aspektforhold 16:9 Skærmteknologi LCD Berøringsskærm Ja HD-type Fuld HD Paneltype ADS Responstid 5 ms Skærm form Flad Kontrastforhold (typisk) 1000:1 Maksimal opdateringshastighed 76 Hz Berøringsskærmstype Multibruger Berøringsskærm teknologi Projekteret kapacitivt systemet Berøringsteknologi Multi-touch Antal simultane touchpunkter 10 Skærmens lysstyrke 250 cd/m² Understøttede grafikopløsninger 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) Kontrastforhold (dynamisk) 50000000:1 Synsvinkel, horisontal 178° Synsvinkel, vertikal 178° Pixel pitch 0,24825 x 0,24825 mm Horisontal scanningsområde 24 - 82 kHz Vertikalt scanningsområde 50 - 76 Hz Skærm diagonal (metrisk) 54,6 cm Præstation NVIDIA G-SYNC Ingen AMD FreeSync Ingen Understøttede Windows-operativsystemer Windows 10, Windows 7, Windows 8, Windows 8.1 Understøttede Mac-operativsystemer Ja Understøttede Linux-operativsystemer Ja Andre understøttede operativsystemer Android Multimedie Indbyggede højttaler(e) Ja Indbygget kamera Ingen Antal højttalere 2 Udgangseffekt (RMS) 6 W Indbygget mikrofon Ingen Design Produktfarve Sort Porte & Grænseflader Indbygget USB-hub Ja HDMI Ja USB-hub-version 3.2 Gen 1 (3.1 Gen 1) USB upstream port type USB Type-B Antal upstream-porte 1 Antal USB Type-B opstrømsporte 1 Antal USB type-A downstream-porte 2 Antal HDMI-porte 1 HDMI-version 1.4 Antal DisplayPorts 1 DisplayPort-version 1.2 Lydindgang 1 Lydudgang 1 Ergonomisk VESA montering Ja Panel montering grænseflade 100 x 100 mm Kan monteres på væggen Ja Hældningsindstilling Ja Hældningsvinkelområde 20 - 70° Skærmvisning (OSD) Ja Antal OSD sprog 12 Strømstyring Energieffektivitetsklasse (SDR) F Energiforbrug (SDR) pr. 1000 timer 19 kWh Strømforbrug (typisk) 25 W Vekselstrømsindgangsspænding 100-240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforsyningstype Vekselstrøm Energieffektivitetsskala A til G Kode for europæisk produktregister for energimærkning (EPREL) 389769 Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 20 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde (med stativ) 490 mm Dybde (med stativ) 47 mm Højde (med stativ) 299 mm Vægt (med stativ) 3,58 kg Emballeringsdata Pakkebredde 550 mm Pakkedybde 114 mm Pakkehøjde 371 mm Pakkevægt 4,7 kg Emballage indhold Kabler inkluderet Vekselstrøm, Lyd (3ˌ5 mm), HDMI, USB Bæredygtighed Bæredygtighedscertifikater EPEAT Bronze, ErP Andre funktioner Vis synligt område (HxL) 476,64 x 268,11 mm Vægt 3,6 kg Compliance-certifikater CE, REACH, RoHS Certificering cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP Logistik data Pallens bruttobredde 120 cm Pallens bruttolængde 100 cm Pallens bruttohøjde 197,5 cm Produkter pr. hovedkasse (udvendigt) 1 stk Harmoniseret systemkode (HS) 8528521000
