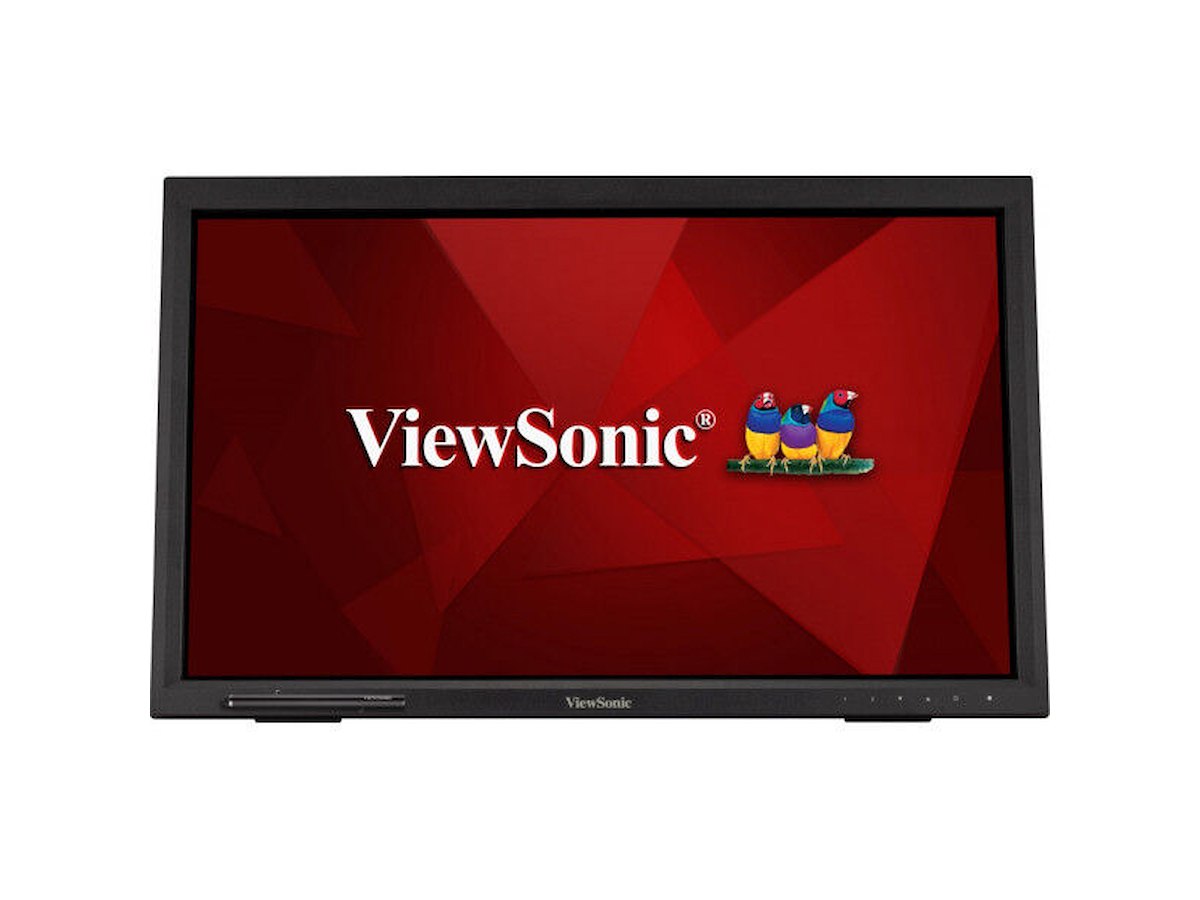

The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
| Display | |
| Skærm diagonal | 54,6 cm (21.5") |
| Skærmopløsning | 1920 x 1080 pixel |
| Naturligt aspektforhold | 16:9 |
| Skærmteknologi | LED |
| Berøringsskærm | Ja |
| HD-type | Fuld HD |
| Paneltype | TN |
| Responstid | 5 ms |
| Skærm form | Flad |
| Kontrastforhold (typisk) | 1000:1 |
| Maksimal opdateringshastighed | 75 Hz |
| Vis antal farver | 16,78 millioner farver |
| Berøringsskærmstype | Multibruger |
| Berøringsskærm teknologi | Infrarød |
| Berøringsteknologi | Multi-touch |
| Antal simultane touchpunkter | 10 |
| Skærmens lysstyrke | 250 cd/m² |
| Kontrastforhold (dynamisk) | 20000000:1 |
| Synsvinkel, horisontal | 170° |
| Synsvinkel, vertikal | 160° |
| Pixel pitch | 0,248 x 0,248 mm |
| Horisontal scanningsområde | 24 - 82 kHz |
| Vertikalt scanningsområde | 50 - 75 Hz |
| Præstation | |
| NVIDIA G-SYNC | Ingen |
| AMD FreeSync | Ingen |
| Multimedie | |
| Indbyggede højttaler(e) | Ja |
| Indbygget kamera | Ingen |
| Antal højttalere | 2 |
| Udgangseffekt (RMS) | 4 W |
| Indbygget mikrofon | Ingen |
| Design | |
| Produktfarve | Sort |
| Glas tykkelse | 2 mm |
| Porte & Grænseflader | |
| Indbygget USB-hub | Ja |
| HDMI | Ja |
| Udgang til hovedtelefoner | Ja |
| USB upstream port type | USB Type-B |
| Antal upstream-porte | 1 |
| Antal USB type-A downstream-porte | 2 |
| Antal VGA-porte (D-sub) | 1 |
| DVI-port | Ja |
| Antal DVI-D-porte | 1 |
| Antal HDMI-porte | 1 |
| HDMI-version | 1.4 |
| Udgange til hovedtelefoner | 1 |
| Mikrofonindgang | Ja |
| Ergonomisk | |
| Slot til kabellås | Ja |
| Panel montering grænseflade | 100 x 100 mm |
| Kan monteres på væggen | Ja |
| Kabellåseslids type | Kensington |
| Hældningsindstilling | Ja |
| Hældningsvinkelområde | 22 - 38° |
| Strømstyring | |
| Energieffektivitetsklasse (SDR) | E |
| Energiforbrug (SDR) pr. 1000 timer | 14 kWh |
| Strømforbrug (typisk) | 12,5 W |
| Strømforbrug (standby) | 0,5 W |
| Strømforbrug (maks.) | 14 W |
| Vekselstrømsindgangsspænding | 100-240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Strømforsyningstype | Vekselstrøm |
| Kode for europæisk produktregister for energimærkning (EPREL) | 368718 |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 20 - 90% |
| Vægt & størrelser | |
| Bredde (med stativ) | 521 mm |
| Dybde (med stativ) | 101 mm |
| Højde (med stativ) | 334 mm |
| Vægt (med stativ) | 4,5 kg |
| Bredde (uden stativ) | 521 mm |
| Dybde (uden stativ) | 61 mm |
| Højde (uden stativ) | 318 mm |
| Vægt (uden stativ) | 3,9 kg |
| Emballeringsdata | |
| Pakkebredde | 580 mm |
| Pakkedybde | 164 mm |
| Pakkehøjde | 405 mm |
| Pakkevægt | 6 kg |
| Emballage indhold | |
| Stativ inkluderet | Ja |
| Kabler inkluderet | Vekselstrøm, Lyd (3ˌ5 mm), HDMI, USB Type-A til USB Type-B |
| Bæredygtighed | |
| Bæredygtighedscertifikater | ENERGY STAR |
| Andre funktioner | |
| Compliance-certifikater | REACH, RoHS |
| Certificering | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85285210 |
