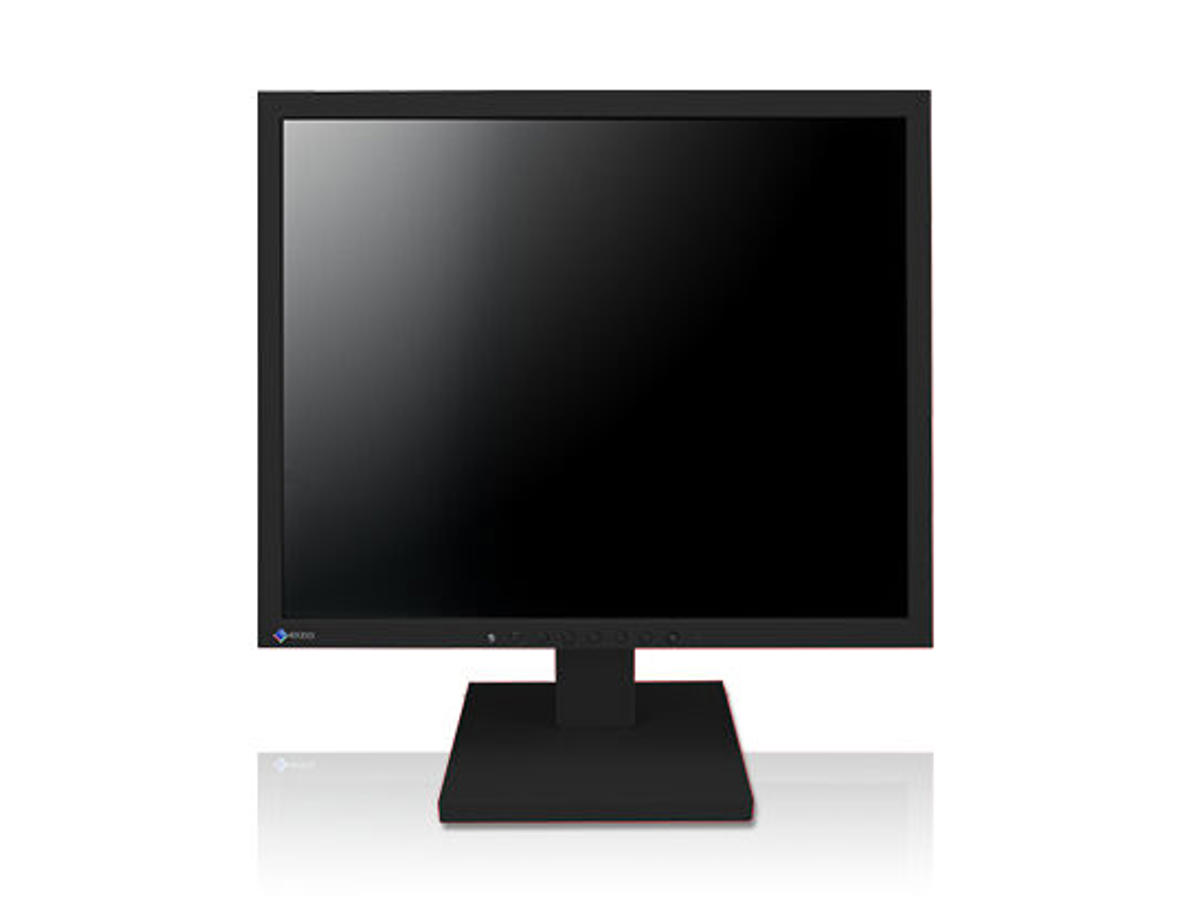

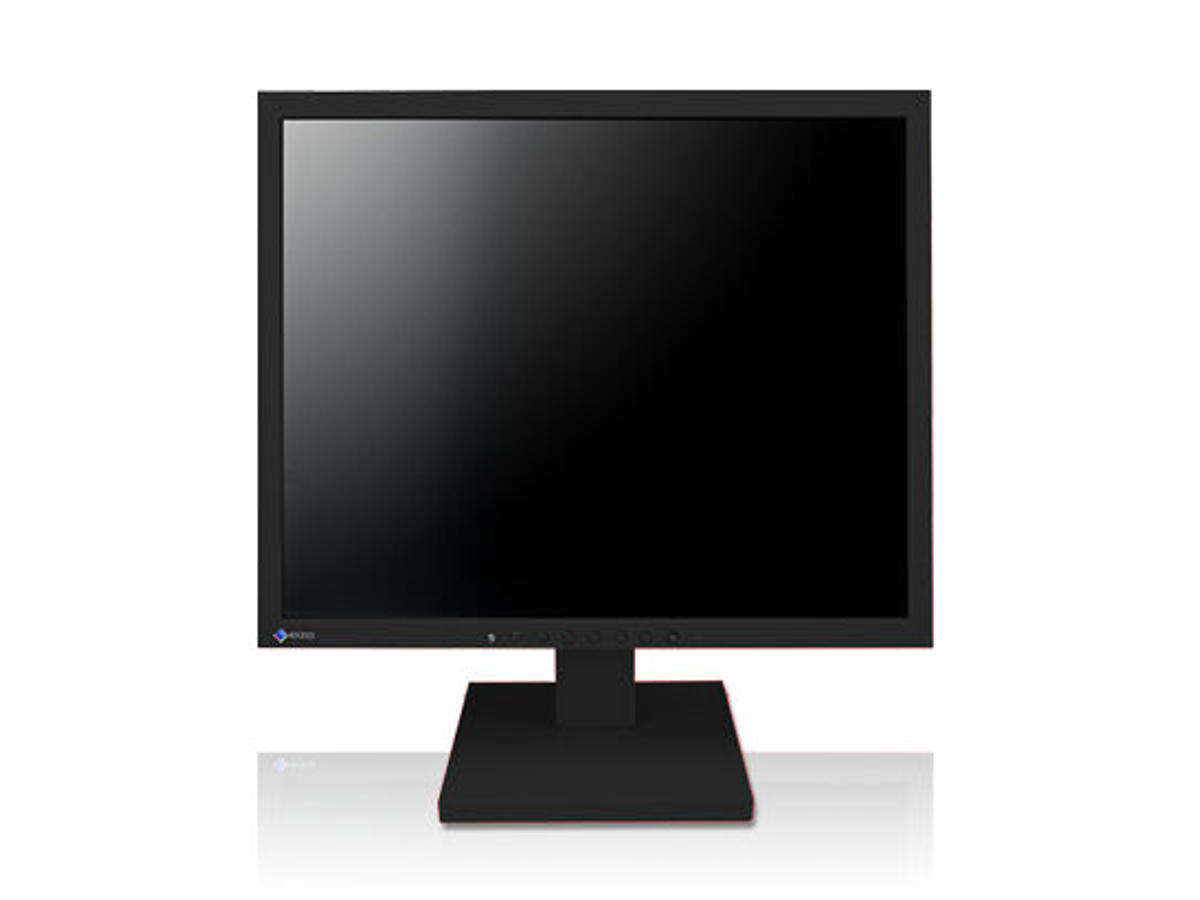

Varenummer: S1703-AHBK
Mere information
-
Digital and Analog Inputs
connectorsWith both DVI-D and D-Sub mini 15-pin inputs, you can use a computer that has either a digital or an analog graphics board (or both if connected to two computers), and quickly switch between the inputs via a front panel button.
Long-Term Supply
The S1703-A is the successor to the S1703. With this stable supply of 17-inch square model monitors it can be adopted with confidence with legacy equipment and systems.
Built to Last Five Years
5 year warrantyThe S1703-A comes with a 5 year warranty*. Even if the initial purchase price of the FlexScan S1703-A is higher than another 17-inch monitor, the TCO (total cost of ownership) will likely be lower due to the significantly longer buying cycle and less need for repair.
Automatic Image Adjustment
The Self Adjustment function automatically adjusts the display to suppress flicker and drift. Furthermore, monitor cables produced to minimize noise are bundled with the S1703-A.
Optimized Brightness with Auto EcoView
The Auto EcoView function measures ambient light and optimizes the screen’s brightness to minimize eye fatigue caused by bright screens in dark conditions.
Reduce Blue Light by 80%
The S1703-A has a display mode called Paper Mode which changes the color of the screen to resemble paper. In addition to using the Auto EcoView function to adjust the screen brightness, documents and electronic books can be viewed resembling physical paper. This significantly cuts blue light, reducing eyestrain.
Anti-Glare Treatment
A non-glare screen reduces eye fatigue by dissipating reflective light that otherwise makes the screen difficult to view. Furthermore, the surface of the bezels is treated to prevent light reflection.
Flicker Prevention
A modulated light adjustment function prevents flicker at low brightness settings to reduce eye fatigue. -
Display Skærm diagonal 43,2 cm (17") Skærmopløsning 1280 x 1024 pixel Naturligt aspektforhold 5:4 Skærmteknologi LED Berøringsskærm Ingen HD-type SXGA Paneltype TN Responstid 5 ms Skærm form Flad Kontrastforhold (typisk) 1000:1 Vis antal farver 16,78 millioner farver Type af baggrundslys LED Skærmens lysstyrke (typisk) 250 cd/m² Understøttede grafikopløsninger 1280 x 1024 (SXGA) Billedformat 5:4 Synsvinkel, horisontal 170° Synsvinkel, vertikal 160° Pixel pitch 0,264 x 0,264 mm Synlig størrelse, horisontal 33,8 cm Synlig størrelse, vertikal 27 cm Standard for farveskala sRGB 3D Ingen Præstation NVIDIA G-SYNC Ingen AMD FreeSync Ingen Multimedie Indbyggede højttaler(e) Ja Indbygget kamera Ingen Antal højttalere 2 Udgangseffekt (RMS) 1 W Design Markedspositionering Forretning Produktfarve Sort Porte & Grænseflader Indbygget USB-hub Ingen HDMI Ingen Udgang til hovedtelefoner Ja Antal VGA-porte (D-sub) 1 DVI-port Ja Antal DVI-D-porte 1 Antal DisplayPorts 0 Lydindgang Ja Ergonomisk VESA montering Ja Højdejustering Ja Panel montering grænseflade 100 x 100 mm Justerbar højde (maks.) 10 cm Akse Ja Pivot vinkel 0 - 90° Drejelig Ja Drejevinkel område -35 - 35° Hældningsindstilling Ja Hældningsvinkelområde 0 - 30° Strømstyring Strømforbrug (typisk) 8 W Strømforbrug (maks.) 18 W Strømforbrug (strømbesparelse) 0,5 W Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Driftsbetingelser Driftstemperatur (T-T) 5 - 35 °C Relativ luftfugtighed ved drift (H-H) 20 - 80% Vægt & størrelser Bredde (med stativ) 367 mm Dybde (med stativ) 205 mm Højde (med stativ) 491,5 mm Vægt (med stativ) 5,5 kg Bredde (uden stativ) 367 mm Dybde (uden stativ) 59 mm Højde (uden stativ) 304 mm Vægt (uden stativ) 3,6 kg Emballage indhold Kabler inkluderet Vekselstrøm, Lyd (3ˌ5 mm), DVI, VGA Andre funktioner TV-tuner, integreret Ingen Certificering TUV/Ergonomics, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, RoHS, WEEE, China RoHS, CCC, EAC
