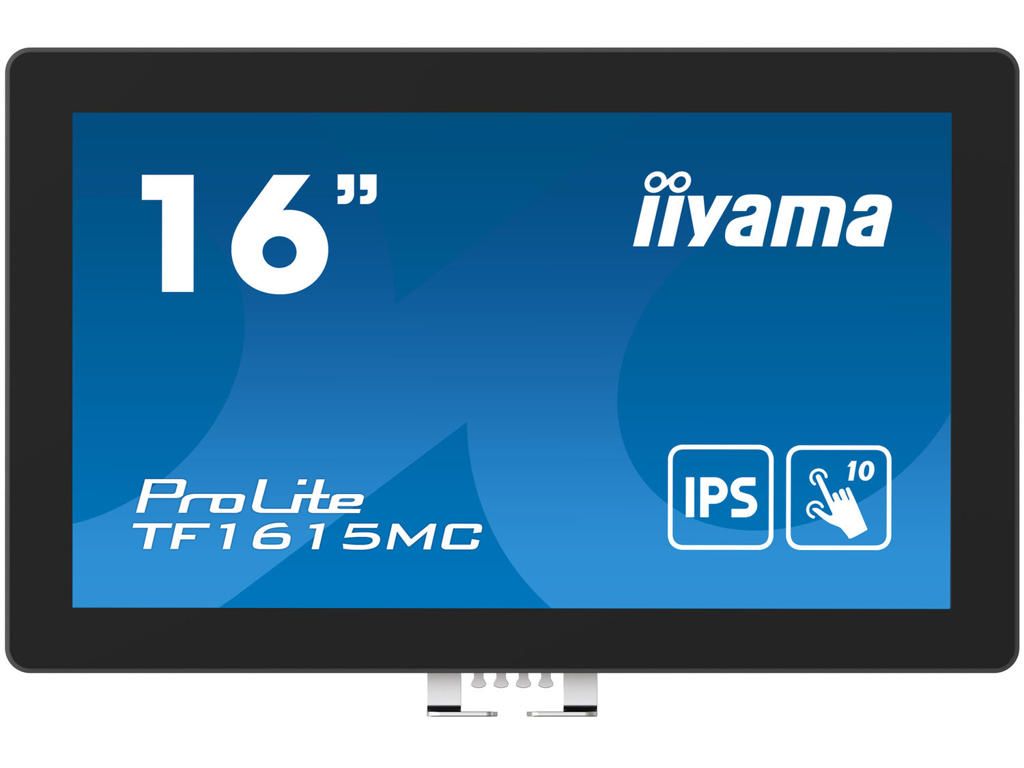

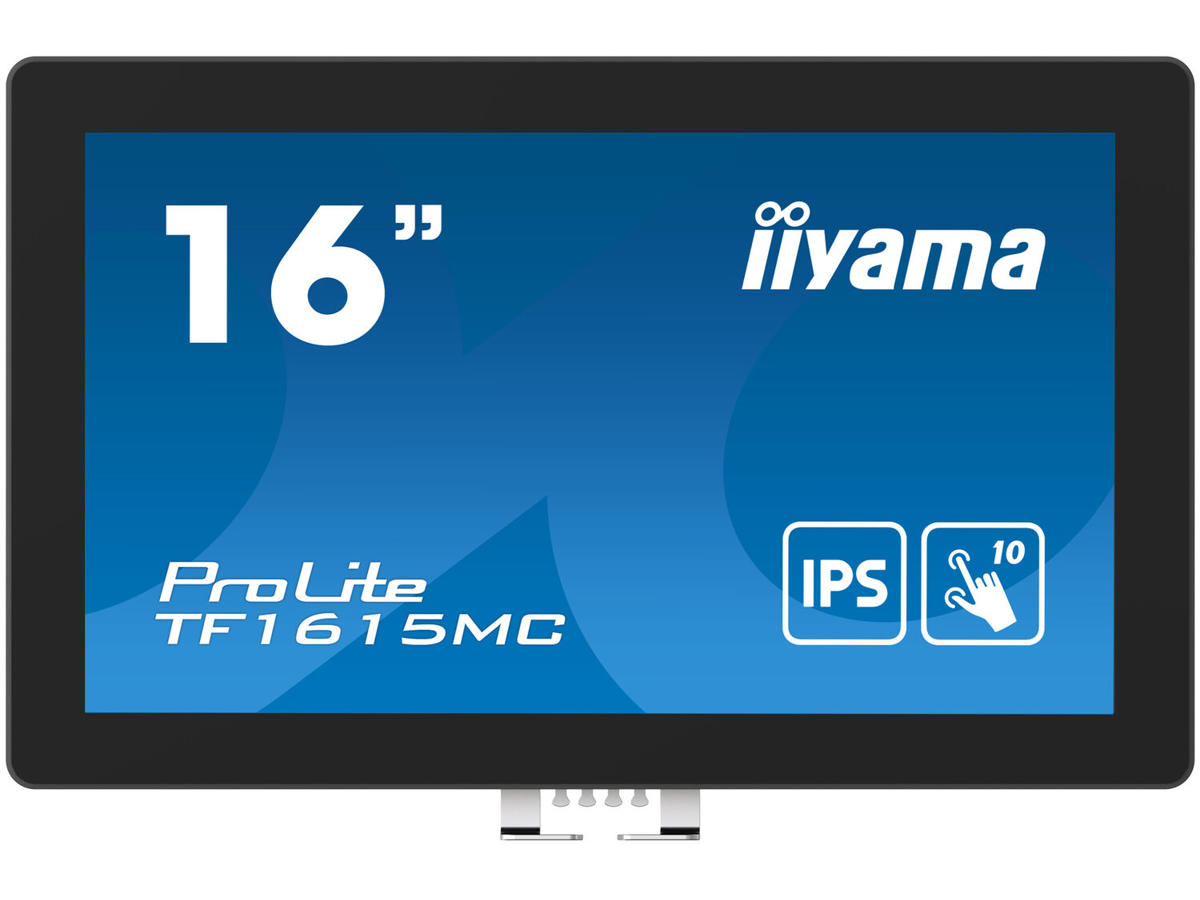

The ProLite TF1615MC-B1 (15.6 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the ProLite TF1615MC-B1 can be equipped with optional external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
FOAM SEAL
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
OPEN FRAME BRACKETS
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
Display | |
Skærm diagonal | 39,6 cm (15.6") |
Skærmopløsning | 1920 x 1080 pixel |
Naturligt aspektforhold | 16:9 |
Berøringsskærm | Ja |
HD-type | Fuld HD |
Paneltype | IPS |
Skærm form | Flad |
Kontrastforhold (typisk) | 1000:1 |
Berøringsskærm teknologi | Kapacitiv |
Antal simultane touchpunkter | 10 |
Skærmens lysstyrke (spidsbelastning) | 450 cd/m² |
Responstid | 25 ms |
Billedformat | 16:9 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Pixel pitch | 0,17925 x 0,17925 mm |
Horisontal scanningsområde | 31,5 - 67,5 kHz |
Skærm diagonal (metrisk) | 40 cm |
Design | |
Markedspositionering | Forretning |
Produktfarve | Sort |
Certificering | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
Porte & Grænseflader | |
Indbygget USB-hub | Ja |
HDMI | Ja |
Udgang til hovedtelefoner | Ja |
Antal VGA-porte (D-sub) | 1 |
Antal DisplayPorts | 1 |
HDCP | Ja |
Ergonomisk | |
VESA montering | Ja |
Panel montering grænseflade | 100 x 100 mm |
Skærmvisning (OSD) | Ja |
OSD-sprog | Tysk, Engelsk, Spansk, Fransk, Italiensk, Japansk |
Strømstyring | |
Energieffektivitetsklasse (SDR) | E |
Energieffektivitetsklasse (HDR) | Ikke tilgængelig |
Energiforbrug (SDR) pr. 1000 timer | 11 kWh |
Strømforbrug (typisk) | 18 W |
Strømforbrug (standby) | 1,5 W |
Strømforbrug (slukket) | 0,3 W |
Strømforsyningstype | Ekstern |
Energieffektivitetsskala | A til G |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Emballage indhold | |
Kabler inkluderet | DC, DisplayPort, HDMI |
Strømadapter inkluderet | Ja |
Hurtig start guide | Ja |
Vægt & størrelser | |
Bredde (uden stativ) | 398,5 mm |
Dybde (uden stativ) | 42 mm |
Højde (uden stativ) | 246 mm |
Vægt (uden stativ) | 2,5 kg |
Emballeringsdata | |
Pakkebredde | 470 mm |
Pakkedybde | 343 mm |
Pakkehøjde | 145 mm |
Pakkevægt | 4,3 kg |
Pakketype | Kasse |
