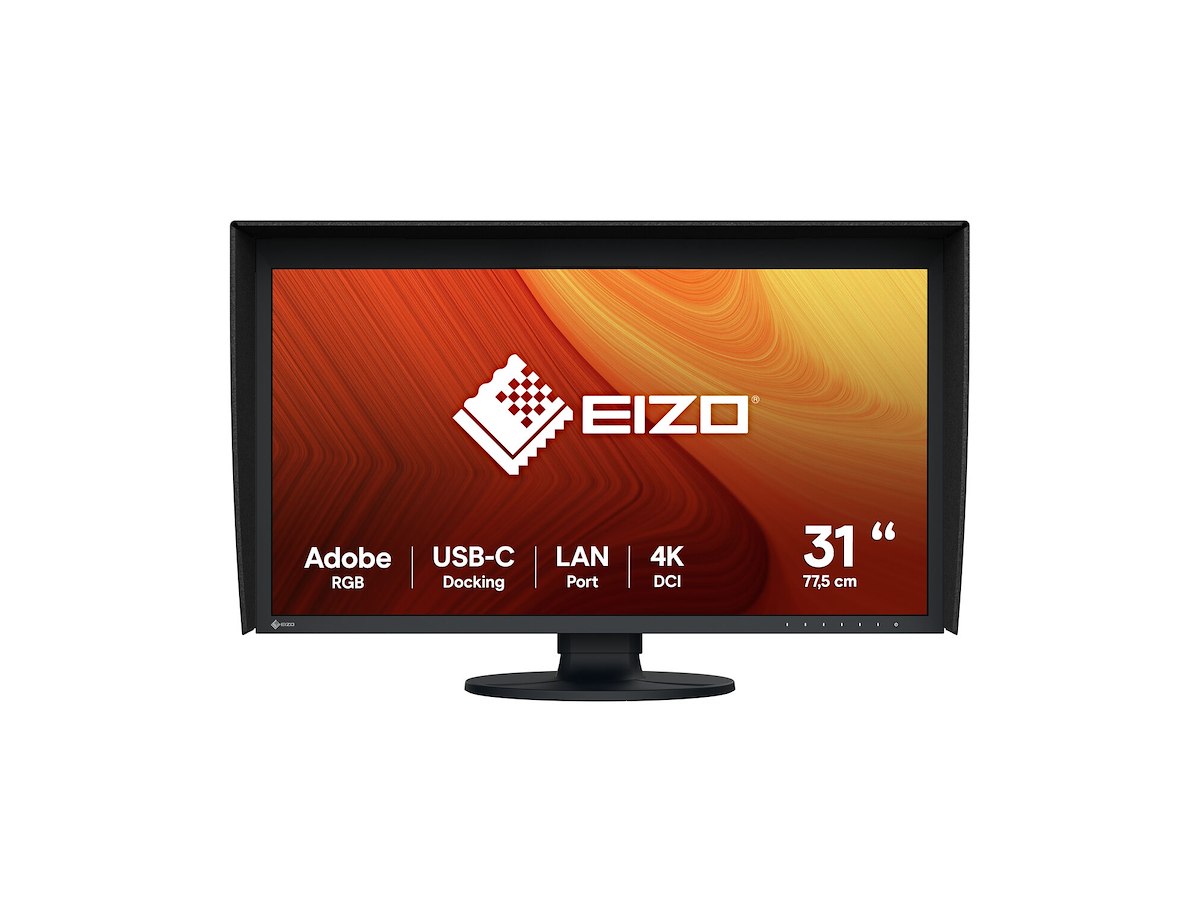

The ColorEdge CG3100X is the top model in the ColorEdge series. With a generous screen diagonal of 30.5 inches and DCI-4K resolution (4096 × 2160 pixels), it meets all the requirements of professional users in film post-production, color grading, and image editing. Thanks to pre-installed PQ and HLG HDR presets and a maximum brightness of 500 cd/m², the CG3100X can be seamlessly integrated into modern HDR workflows. Photographers, content creators, and digital artists benefit from the generous 17:9 format, which offers plenty of space for creative expression with a razor-sharp detail resolution of 152 ppi. The wide color gamut coverage of common standard color spaces such as Rec709, Rec2020, DCI-P3, and AdobeRGB, as well as the 24-bit 3D LUT, ensure realistic and high-contrast color reproduction with maximum precision. The CG3100X also impresses in terms of connectivity: Notebooks can be connected via USB-C with just one cable - including image and data transfer as well as power supply with up to 94 watts. In addition to a DisplayPort connection, there is also a powerful HDMI connection that even supports uncompressed DCI 4K (4:4:4) material in 12 bits at up to 60 Hz - ideal for HDMI-based production environments. An integrated calibration sensor enables effortless, automatic self-calibration, while the RJ45 LAN port, USB hub, and included light shield round out the CG3100X’s professional features.
| Display | |
| Skærm diagonal | 77,5 cm (30.5") |
| Skærmopløsning | 4096 x 2160 pixel |
| Naturligt aspektforhold | 17:9 |
| Skærmteknologi | LCD |
| Berøringsskærm | Ingen |
| HD-type | 4K DCI |
| Paneltype | IPS |
| Responstid | 15 ms |
| Skærm form | Flad |
| Kontrastforhold (typisk) | 1800:1 |
| Maksimal opdateringshastighed | 60 Hz |
| Vis antal farver | 1,07 milliarder farver |
| LED-baggrundsbelysning | Ja |
| Skærmens lysstyrke (spidsbelastning) | 500 cd/m² |
| Skærmens lysstyrke (typisk) | 120 cd/m² |
| Målingstype af responstid | GTG (Gray to Gray) |
| Understøttede grafikopløsninger | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160 |
| Synsvinkel, horisontal | 178° |
| Synsvinkel, vertikal | 178° |
| Pixel pitch | 0,167 x 0,167 mm |
| Pixeltæthed | 152 ppi |
| Horisontal scanningsområde | 15 - 136 kHz |
| Vertikalt scanningsområde | 23 - 61 Hz |
| Synlig størrelse, horisontal | 68,6 cm |
| Synlig størrelse, vertikal | 36,2 cm |
| Digital horisontal frekvens | 25 - 137 kHz |
| Digital vertikal frekvens | 23 - 61 Hz |
| Skærm diagonal (metrisk) | 77,5 cm |
| HDR-teknologi (High Dynamic Range) | Hybrid Log-Gamma (HLG) |
| Farvedybde | 10 Bit |
| Standard for farveskala | Adobe RGB, DCI-P3, Rec. 709, sRGB |
| sRGB-dækning (typisk) | 100% |
| Adobe RGB dækning | 97% |
| Farveskala DCI-P3 | 99% |
| Præstation | |
| NVIDIA G-SYNC | Ingen |
| AMD FreeSync | Ingen |
| Flimmerfri teknologi | Ja |
| Multimedie | |
| Indbyggede højttaler(e) | Ingen |
| Indbygget kamera | Ingen |
| Design | |
| Markedspositionering | Grafisk design |
| Produktfarve | Sort |
| Farve | Sort |
| Porte & Grænseflader | |
| Indbygget USB-hub | Ja |
| HDMI | Ja |
| Udgang til hovedtelefoner | Ja |
| USB-hub-version | 3.2 Gen 1 (3.1 Gen 1) |
| Antal USB Type-B opstrømsporte | 1 |
| Antal USB Type-C opstrømsporte | 1 |
| Antal USB type-A downstream-porte | 4 |
| USB type-C DisplayPort alternativ tilstand | Ja |
| USB strømforsyning | Ja |
| USB strømforsyning op til | 94 W |
| Antal HDMI-porte | 1 |
| Antal DisplayPorts | 1 |
| Tilslutning af hovedtelefoner | 3,5 mm |
| Indbygget KVM switch | Ja |
| HDCP | Ja |
| HDCP-version | 2.3 |
| Netværk | |
| Ethernet LAN | Ja |
| Ergonomisk | |
| VESA montering | Ja |
| Slot til kabellås | Ja |
| Højdejustering | Ja |
| Panel montering grænseflade | 100 x 100 mm |
| Kabellåseslids type | Kensington |
| Justerbar højde (maks.) | 15,5 cm |
| Drejelig | Ja |
| Drejevinkel område | 0 - 344° |
| Hældningsindstilling | Ja |
| Hældningsvinkelområde | -5 - 35° |
| Skærmvisning (OSD) | Ja |
| OSD-sprog | Tysk, Engelsk, Spansk, Fransk, Italiensk, Svensk |
| Strømstyring | |
| Energieffektivitetsklasse (SDR) | G |
| Energieffektivitetsklasse (HDR) | Ikke tilgængelig |
| Energiforbrug (SDR) pr. 1000 timer | 52 kWh |
| Strømforbrug (typisk) | 86 W |
| Strømforbrug (standby) | 0,5 W |
| Strømforbrug (maks.) | 270 W |
| Strømforbrug (slukket) | 0 W |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50/60 Hz |
| Energieffektivitetsskala | A til G |
| Vægt & størrelser | |
| Bredde (med stativ) | 721 mm |
| Dybde (med stativ) | 290 mm |
| Højde (med stativ) | 428,1 mm |
| Vægt (med stativ) | 12,3 kg |
| Bredde (uden stativ) | 721 mm |
| Dybde (uden stativ) | 87,2 mm |
| Højde (uden stativ) | 413,9 mm |
| Vægt (uden stativ) | 8,9 kg |
| Emballage indhold | |
| Stativ inkluderet | Ja |
| Kabler inkluderet | HDMI, Strøm, USB Type-A til USB Type-B, USB Type-C til USB Type-C |
| Hurtig start guide | Ja |
| Brugervejledning | Ja |
| Andre funktioner | |
| Compliance-certifikater | CB, CE, Federal Communications Commission (FCC), PSE, RCM, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Ethernet LAN-porte (RJ-45) | 1 |
| Certificering | CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), FograCert Softproofing System (class A), RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-A, RoHS, WEEE |
