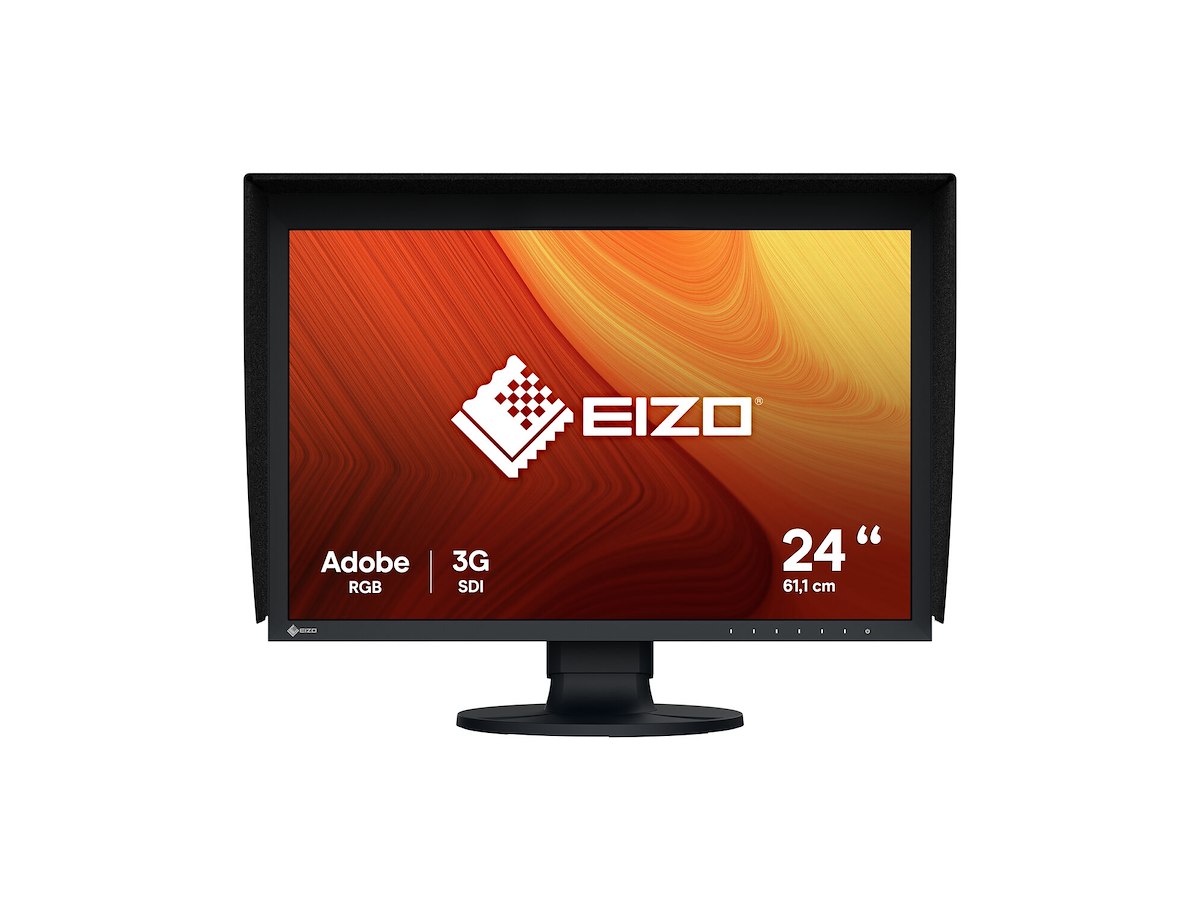

With its compact 24" size, SDI connectivity, and HDR support, the ColorEdge CG2400SV is the ideal monitor for editing suites, studios, and mobile productions in the film and broadcast industry. The SDI input and output (3G-SDI Level A and HD-SDI) enable loss-free transmission of uncompressed video signals ś perfect for use with camera systems and live feeds. HDMI and DisplayPort are also available. With a maximum brightness of 400 cd/m² and a contrast ratio of 1800:1, the CG2400SV meets the requirements of the DCI standard. Support for HLG and PQ gamma curves ensures accurate HDR display ś ideal for postproduction and on-set monitoring. The Wide Gamut IPS panel covers 98% of the DCI-P3 color space and supports the BT.2020 standard. With 10-bit display and a 16-bit 3D LUT, the monitor delivers accurate color reproduction and smooth transitions - essential for color-critical applications. The integrated calibration sensor enables effortless, automatic calibration. With the Pixel Inspection function, users can directly check whether the signal processing is correctly set throughout the entire workflow. The integrated USB hub, headphone jack, and included light shield round out the CG2400SV’s extensive features.
| Display | |
| Skærm diagonal | 61,2 cm (24.1") |
| Skærmopløsning | 1920 x 1200 pixel |
| Naturligt aspektforhold | 16:10 |
| Skærmteknologi | LCD |
| Berøringsskærm | Ingen |
| HD-type | WUXGA |
| Paneltype | IPS |
| Responstid | 11 ms |
| Skærm form | Flad |
| Kontrastforhold (typisk) | 1800:1 |
| Maksimal opdateringshastighed | 60 Hz |
| Vis antal farver | 1,07 milliarder farver |
| LED-baggrundsbelysning | Ja |
| Skærmens lysstyrke (spidsbelastning) | 400 cd/m² |
| Skærmens lysstyrke (typisk) | 120 cd/m² |
| Synsvinkel, horisontal | 178° |
| Synsvinkel, vertikal | 178° |
| Pixel pitch | 0,27 x 0,27 mm |
| Pixeltæthed | 94 ppi |
| Synlig størrelse, horisontal | 51,8 cm |
| Synlig størrelse, vertikal | 32,4 cm |
| Digital horisontal frekvens | 26 - 76 kHz |
| Digital vertikal frekvens | 23 - 61 Hz |
| Skærm diagonal (metrisk) | 61,1 cm |
| HDR-teknologi (High Dynamic Range) | Hybrid Log-Gamma (HLG) |
| Farvedybde | 10 Bit |
| Standard for farveskala | Adobe RGB, DCI-P3, Rec. 709, sRGB |
| sRGB-dækning (typisk) | 100% |
| Adobe RGB dækning | 99% |
| Farveskala DCI-P3 | 98% |
| Præstation | |
| NVIDIA G-SYNC | Ingen |
| AMD FreeSync | Ingen |
| Flimmerfri teknologi | Ja |
| Multimedie | |
| Indbyggede højttaler(e) | Ingen |
| Indbygget kamera | Ingen |
| Design | |
| Markedspositionering | Grafisk design |
| Produktfarve | Sort |
| Farve | Sort |
| Porte & Grænseflader | |
| Indbygget USB-hub | Ja |
| HDMI | Ja |
| Udgang til hovedtelefoner | Ja |
| USB-hub-version | 3.2 Gen 1 (3.1 Gen 1) |
| Antal USB Type-B opstrømsporte | 2 |
| Antal USB type-A downstream-porte | 4 |
| Antal HDMI-porte | 1 |
| Antal DisplayPorts | 1 |
| Tilslutning af hovedtelefoner | 3,5 mm |
| Indbygget KVM switch | Ja |
| HDCP | Ja |
| Ergonomisk | |
| VESA montering | Ja |
| Højdejustering | Ja |
| Panel montering grænseflade | 100 x 100 mm |
| Justerbar højde (maks.) | 15,5 cm |
| Akse | Ja |
| Pivot vinkel | -90 - 90° |
| Drejelig | Ja |
| Drejevinkel område | 0 - 344° |
| Hældningsindstilling | Ja |
| Hældningsvinkelområde | -5 - 35° |
| Skærmvisning (OSD) | Ja |
| OSD-sprog | Tysk, Engelsk, Spansk, Fransk, Italiensk, Svensk |
| Strømstyring | |
| Energieffektivitetsklasse (SDR) | Ikke tilgængelig |
| Energieffektivitetsklasse (HDR) | Ikke tilgængelig |
| Strømforbrug (typisk) | 17 W |
| Strømforbrug (standby) | 0,5 W |
| Strømforbrug (maks.) | 150 W |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 Hz |
| Vægt & størrelser | |
| Bredde (med stativ) | 554,4 mm |
| Dybde (med stativ) | 245 mm |
| Højde (med stativ) | 408,1 mm |
| Vægt (med stativ) | 8,5 kg |
| Bredde (uden stativ) | 554,4 mm |
| Dybde (uden stativ) | 70,2 mm |
| Højde (uden stativ) | 374,1 mm |
| Vægt (uden stativ) | 5,5 kg |
| Emballage indhold | |
| Stativ inkluderet | Ja |
| Kabler inkluderet | HDMI, Strøm, USB Type-A til USB Type-B |
| Hurtig start guide | Ja |
| Andre funktioner | |
| Compliance-certifikater | CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), ICES, PSE, RCM, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Certificering | CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC |
