Varenummer: 6-MONITOR-ARM-A
Mere information
-

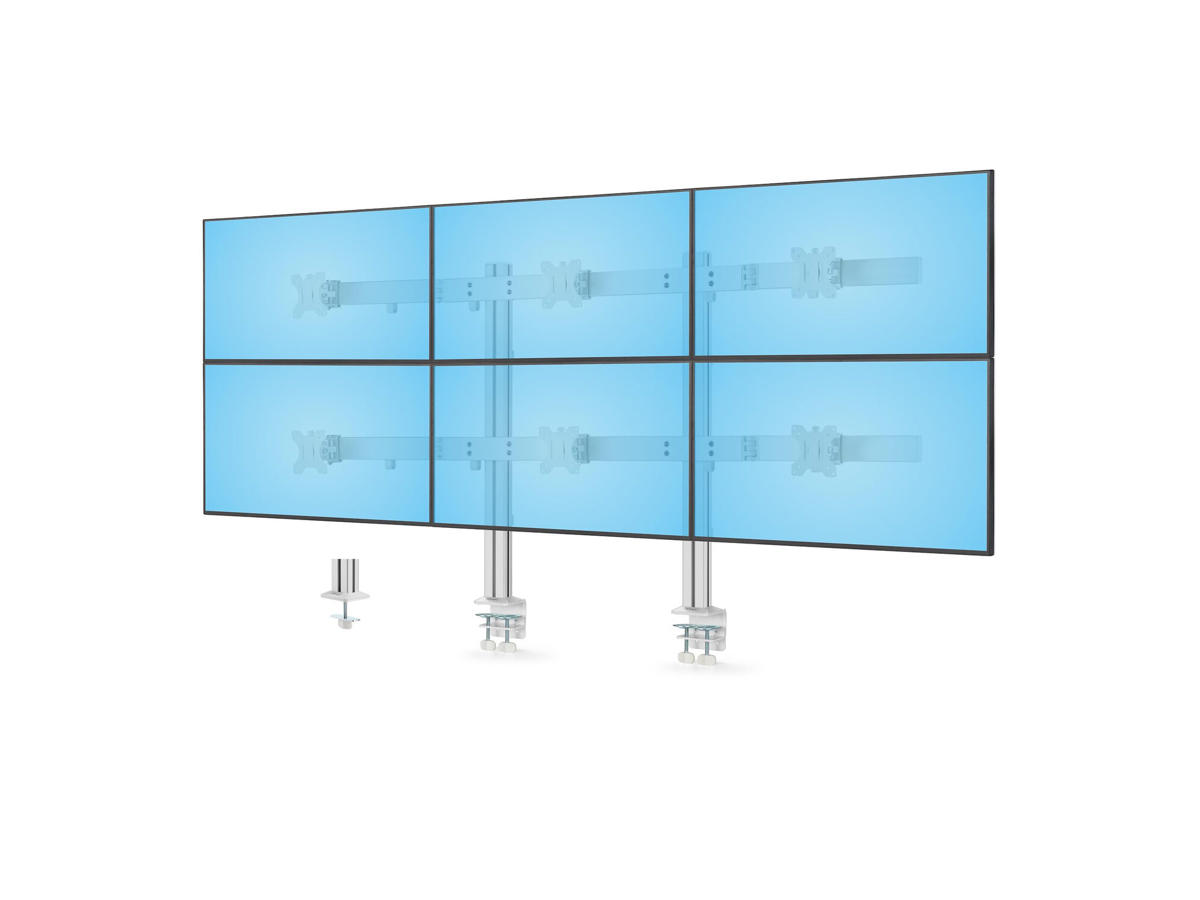

Six monitor desk mount with support up to 32" displays with articulation and height adjustment. VESA compatible 75x75/100x100
This monitor desk mount is designed to support up to six 32-inch displays, creating an ergonomic multi-monitor setup that provides a vast viewing area for productivity.
Dual-Column Stability
The dual-column design, sturdy aluminum construction, and enhanced c-clamp base ensure long-lasting stability. This design prevents tilting over time and evenly distributes weight across the desk for reliable support.
Perfect 3x2 Setup
This monitor setup is ideal for data aggregation and monitoring applications such as financial analysis, security monitoring, control rooms, and other activities that require an extensive viewing area.
Individual micro-height adjustment enables precise alignment of each monitor.
Display Adjustment
The ergonomic VESA plate support +/-17° swivel, +/-34° tilt, and 360° screen rotation for portrait or landscape orientation, and 75x75/100 patterns. Each display mount can support up to 17.6lb (8kg).
Every monitor can be positioned along the 71.1-inch (1.8m) wide crossbars. The outer monitors can be angled (+/-16°) toward the user.
Convenient Installation
The mount offers dual mounting options: robust C-clamps for desks from 0.4 to 2.9in (1 to 7.5cm) thick or grommet hole mounts for desks from 0.4 to 1.7in (1 to 4.5cm) thick.
Each crossbar can be positioned along the two 33.5-inch (85.3cm) columns, providing flexible height options.
All VESA plates are removable for easy installation or removal of the monitors.
Organized Workspace
To maintain an organized workspace, the mount includes cable clips for the crossbars and columns to keep cables neatly tucked away and out of sight. Combine accessories such as cable ties and hooks (parts HKLP25GN and CBMZT8B) for a tidier setup.
The StarTech.com Advantage -
Montering Antal understøttede skærme 6 Maksimal vægtkapacitet (pr. skærm) 32 kg Maksimal skærmstørrelse kompatibilitet 81,3 cm (32") Monteringstype Skrivebord Maksimal vægtkapacitet 48 kg Minimal skærmstørrelse kompatibilitet 43,2 cm (17") Montering interface kompatibilitet (min.) 75 x 75 mm Montering interface kompatibilitet (maks.) 100 x 100 mm Montering Klemme/strømpe Forlængelsesarm (max.) 180,6 cm Skrivebord tykkelse (min) 2 cm Skrivebord tykkelse (maks.) 7,5 cm Klemmemontering skrivebordstykkelse (maks.) 7,5 cm Grommet montering skrivebordstykkelse (maks.) 4,5 cm Ergonomisk Højdejustering Ja Hældningsindstilling Ja Hældningsvinkelområde -34 - 34° Drejelig Ja Drejevinkel område -17 - 17° Rotation Ja Rotationsvinkel 360° Forbedret kabelstyring Ja Design Produktfarve Hvid Husmateriale Aluminium, Plast, Stål Tyverisikring Ingen Vægt & størrelser Bredde 1800 mm Dybde 118 mm Højde 863 mm Vægt 14 kg Emballeringsdata Pakkebredde 1030 mm Pakkedybde 405 mm Pakkehøjde 120 mm Pakkevægt 15,8 kg Emballage indhold Nøgle inkluderet Ja Nøgletype Sekskantnøgle Inklusiv klemme Ja Antal kabelclips 12 Antal inkluderede gummipuder 10 stk Antal inkluderede endehætter 2 stk Monteringsbeslag inkluderet Ja Skruer inkluderet Ja Antal skruer 138 Antal spændeskiver inkluderet 24 Antal afstandsstykker inkluderet 24 Skivebasisplade inkluderet Ja Skiveplade inkluderet Ja Brugervejledning Ja Logistik data Hovedkassens bredde (udvendigt) 1030 mm Hovedkassens længde (udvendigt) 405 mm Hovedkassen højde (udvendigt) 120 mm Produkter pr. hovedkasse (udvendigt) 1 stk
