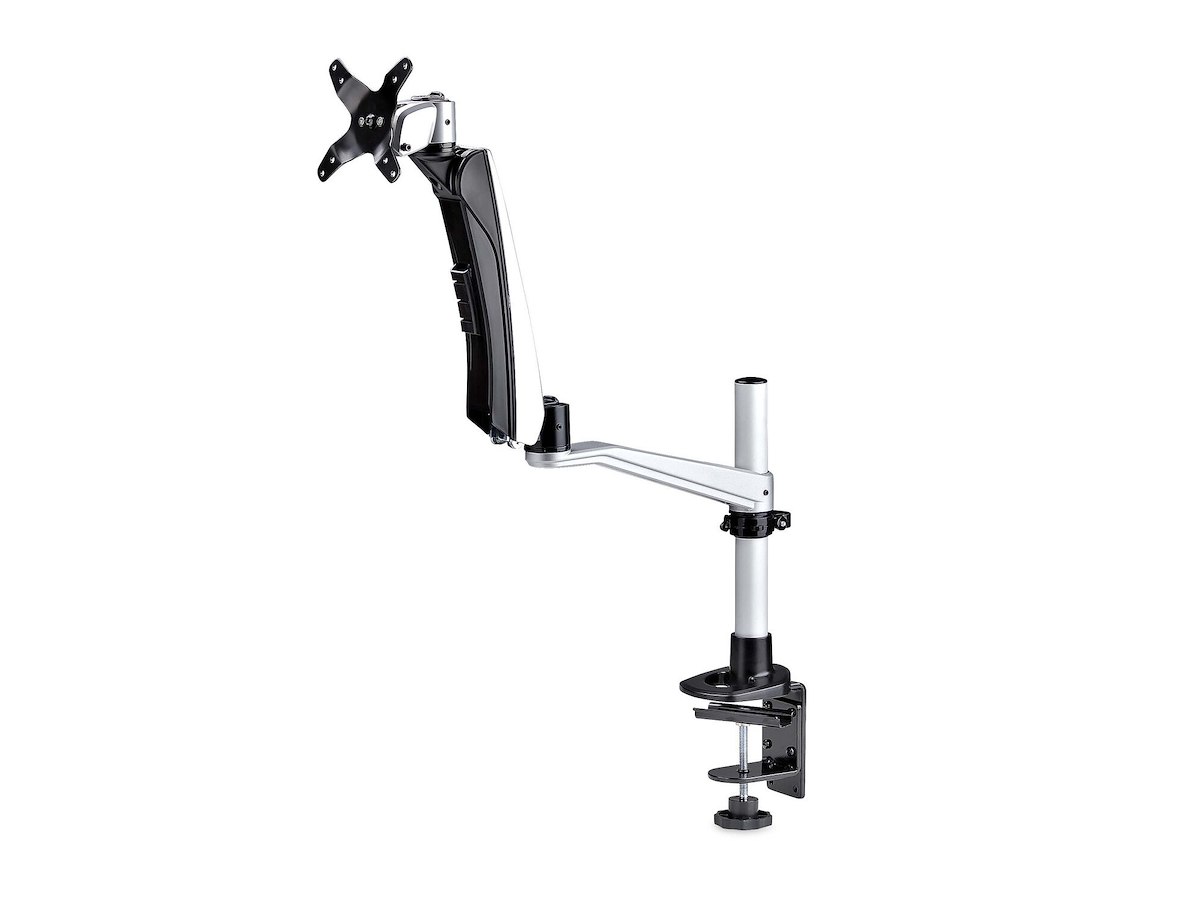

Single monitor desk mount with support up to 30" monitors and height-adjustable articulating arm
This monitor desk mount is designed to support up to 27-inch 16:9 or 30-inch 21:9 display, creating an ergonomic area for productivity. The mechanical spring-assisted arm enables multiple adjustment to suit different ergonomic needs.
Height Adjustment with One Smooth Motion
The spring arm enables toolless height adjustment of up to 10.6in (270mm) with effortless one-touch motion. Adjust the height of the arm along the 10.2in (261mm) pole. The arm can extend up to 22.2in (590mm) from the pole.
Toolless Assembly
The quick toolless slide and click design makes assembly quick and simple. The pre-assembled desk clamp and pole can be easily secured by hand to the desk, saving total installation time.
Range of Motion
The articulating arm enables toolless adjustments of +/-180° horizontal swivel, 105° tilt, 240° pan, and 360° screen rotation on the VESA plate for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Durable Construction
With its steel and aluminum construction, the premium monitor arm supports a weight capacity of 19.8 lb. (9 kg). Die-cast aluminum arms with mechanical springs that passed 10,000 cycle test and are backed for 10 years for long-lasting performance.
Cable Management
To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip on the pole also helps maintain an organized workspace.
The StarTech.com Advantage
| Montering | |
| Antal understøttede skærme | 1 |
| Maksimal skærmstørrelse kompatibilitet | 76,2 cm (30") |
| Monteringstype | Skrivebord |
| Maksimal vægtkapacitet | 9 kg |
| Minimal skærmstørrelse kompatibilitet | 43,2 cm (17") |
| Montering interface kompatibilitet (min.) | 75 x 75 mm |
| Montering interface kompatibilitet (maks.) | 100 x 100 mm |
| Montering | Klemme/strømpe |
| Forlængelsesarm (max.) | 59 cm |
| Skrivebord tykkelse (min) | 1 cm |
| Klemmemontering skrivebordstykkelse (maks.) | 11 cm |
| Grommet montering skrivebordstykkelse (maks.) | 6 cm |
| Ergonomisk | |
| Højdejustering | Ja |
| Højdejusteringsområde | 270 - 302 mm |
| Hældningsvinkelområde | -15 - 90° |
| Drejelig | Ja |
| Drejelig vinkel | 120° |
| Rotation | Ja |
| Rotationsvinkel | 90° |
| Pivot vinkel | -180 - 180° |
| Forbedret kabelstyring | Ja |
| Design | |
| Produktfarve | Sort, Sølv |
| Husmateriale | Aluminium, Plast, Stål |
| Tyverisikring | Ingen |
| Vægt & størrelser | |
| Bredde | 674 mm |
| Dybde | 103 mm |
| Højde | 361 mm |
| Vægt | 3 kg |
| Emballeringsdata | |
| Pakkebredde | 290 mm |
| Pakkedybde | 136 mm |
| Pakkehøjde | 462 mm |
| Pakkevægt | 3,8 kg |
| Emballage indhold | |
| Nøgle inkluderet | Ja |
| Nøgletype | Sekskantnøgle |
| VESA-beslag inkluderet | Ja |
| Antal kabelclips | 1 |
| Skruer inkluderet | Ja |
| Antal skruer | 4 |
| Brugervejledning | Ja |
| Andre funktioner | |
| Compliance-certifikater | Lov om handelsaftaler (TAA) |
| Logistik data | |
| Hovedkassens bredde (udvendigt) | 706 mm |
| Hovedkassens længde (udvendigt) | 136 mm |
| Hovedkassen højde (udvendigt) | 312 mm |
| Produkter pr. hovedkasse (udvendigt) | 5 stk |
