Enterprise enabled, ROBO ready

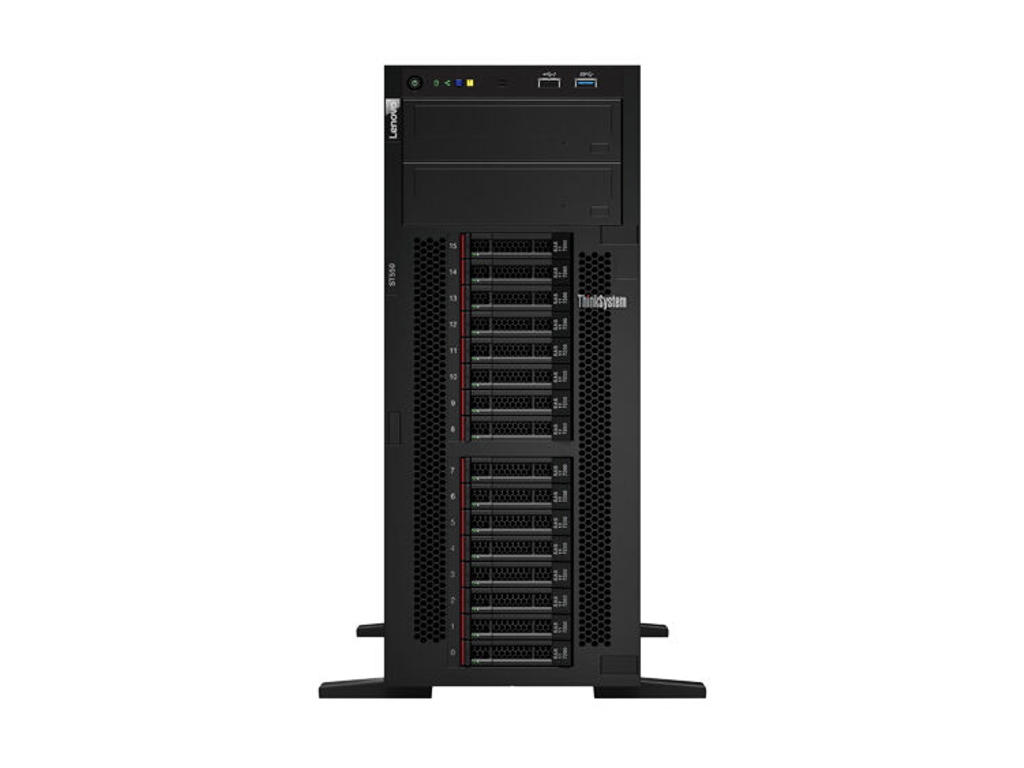

The Lenovo ThinkSystem ST550 is a scalable 4U tower server that features powerful Intel® Xeon® processor Scalable family CPUs. It provides the performance and reliability you expect from the data center, but optimized for office environments, with physical security and whisper-quiet operation. Its compact footprint uses 37 percent less space than its predecessor*, making it ideal for under-desk, deskside, or rack-mount use. ST550 is ideal for email/file/print and web serving, IT infrastructure, virtualization, VDI, and private cloud.
Compact, secure, flexible
ST550 supports up to 96.4TB of internal storage capacity, and Lenovo AnyBay technology enables the mixing and matching of storage types (U.2/SAS/SATA) in the same bays. Up to 6x PCIe adapter slots and multiple hardware and software RAID options offer the flexibility you need for NICs, GPUs, and other adapters.
Physical and software security technologies, including lockable security bezel, Kensington lock slot, chassis intrusion switch, and TPM 1.2/2.0, are ideal for remote locations without the protection of a data center. ST550 also offers money-saving features, such as highly energy-efficient 80 PLUS Platinum and Titanium hot-swap PSUs, continuous operation up to 45°C, and easy centralized management via XClarity software.
High-performance, reliable, manageable
ST550 features more processor cores, memory, and I/O bandwidth than previous generations. It also provides more memory channels; 12Gb SAS interconnects; and support for HDD, SSD, NVMe, and M.2 drives; as well as high-performance GPUs—all at a lower price than previous generations.
Faster processors and memory, more cores, and support for NVMe and M.2 drives contribute to significantly better performance than the previous generation. In addition, optional NVMe drives provide ultra-fast storage that can be tiered for greater application performance. Combining enterprise-class RAS features and shared components across the server portfolio increases reliability, promotes greater peace of mind, and reduces TCO.
XClarity Controller is the management hardware engine inside every ThinkSystem server, and XClarity Administrator centralizes management of your ThinkSystem and ThinkAgile infrastructure. With Redfish APIs and XClarity integrators you can easily integrate the Lenovo infrastructure into higher-level IT applications.
Processor | |
Processorserie | Intel® Xeon Silver |
Processorproducent | Intel |
Processormodel | 4214 |
Processorfrekvens | 2,2 GHz |
Processorgeneration | Intel Xeon skalerbar 2. generation |
Processor boost frekvens | 3,2 GHz |
Processorkerner | 12 |
Processor-cache | 16,5 MB |
Bundkort chipsæt | Intel® C624 |
Antal installerede processorer | 1 |
Thermal Design Power (TDP) | 85 W |
Processor cache type | Smart cache |
Maksimalt antal SMP-processorer | 2 |
Kompatibel processor serie | Intel® Xeon® |
Processor sokkel | LGA 3647 (Socket P) |
Understøttede procesorsokler | LGA 3647 (Socket P) |
Processor litografi | 14 nm |
Processortråde | 24 |
Processor driftstilstande | 64-bit |
Processor kodenavn | Cascade Lake |
Tcase | 77 °C |
Maksimal intern hukommelse understøttet af processor | 1,02 TB |
Hukommelsestyper understøttet af processor | DDR4-SDRAM |
Hukommelsesurhastigheder understøttet af processor | 2400 Mhz |
Udfør deaktivering af bit | Ja |
Maksimalt antal PCI Express-kanaler | 48 |
Processor-pakke størrelse | 76.0 x 56.5 mm |
Understøttede instruktionssæt | AVX-512 |
Skalerbarhed | 2S |
Indlejret tilgængelige muligheder | Ja |
Hukommelse | |
Intern hukommelse | 16 GB |
Intern hukommelsestype | DDR4-SDRAM |
Maksimal intern hukommelse | 768 GB |
Hukommelsesstik | 12x DIMM |
Fejlkorrigerende kode | Ja |
Hukommelsesur hastighed | 2666 Mhz |
Hukommelseslayout (slots x størrelse) | 1 x 16 GB |
Lagring | |
Maksimal lagerkapacitet | 153,6 TB |
Understøtter RAID | Ja |
Optisk drevtype | Ingen |
Understøttede HDD-størrelser | 2.5" |
RAID-niveauer | 0, 1, 5, 6, 10, 50, 60 |
Understøttede RAID-kontroller | 930-8i |
Hot-swap | Ja |
Interne drevbåse | 8 |
Understøttede lagerdrev brugerflader | SAS, Serial ATA III |
Grafik | |
On-board grafikkort | Ja |
On-board grafikkort, model | Ikke tilgængelig |
Indbygget grafikadapterhukommelse | 0,016 GB |
Netværk | |
LAN Kontroller | Intel® X722 |
Ethernet LAN | Ja |
Kabelteknologi | 10/100/1000Base-T(X) |
Ethernet-grænsefladetype | Gigabit Ethernet |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 3 |
Antal USB 2.0-porte | 5 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
Antal VGA-porte (D-sub) | 1 |
Udvidelsessokler | |
PCI Ekspres x8 (Gen 3.x) slots | 2 |
PCI Ekspres x16 (Gen 3.x) slots | 2 |
PCI Express slots version | 3.0 |
Design | |
Kabinettype | Tower |
Produktfarve | Sort |
Præstation | |
Målstyring | XClarity Standard |
Trusted Platform Module (TPM) | Ja |
Trusted Platform Module (TPM) version | 2.0 |
Software | |
Kompatible operativsystemer | Microsoft Windows Server 2016 Microsoft Windows Server 2019 Red Hat Enterprise Linux 7.6 Red Hat Enterprise Linux 7.7 Red Hat Enterprise Linux 8.0 Red Hat Enterprise Linux 8.1 SUSE Linux Enterprise Server 12 SP4 SUSE Linux Enterprise Server 12 Xen SP4 SUSE Linux Enterprise Server 15 SUSE Linux Enterprise Server 15 SP1 SUSE Linux Enterprise Server 15 Xen SUSE Linux Enterprise Server 15 Xen SP1 VMware ESXi 6.5 U2 VMware ESXi 6.5 U3 VMware ESXi 6.7 U1 VMware ESXi 6.7 U2 VMware ESXi 6.7 U3 |
Processor særlige funktioner | |
Enhanced Intel SpeedStep Teknologi | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ja |
Intel® Turbo Boost Teknologi | 2.0 |
Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
Intel® Trusted Execution Teknologi | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® TSX-NI | Ja |
Intel® 64 | Ja |
Intel® Virtualization Technology (VT-x) | Ja |
Processor ARK ID | 193385 |
Strømstyring | |
Redundant strømforsyning | Ja |
Strømforsyning | 550 W |
Antal af hovedstrømforsyninger | 1 |
Strømforsyningens indgangsfrekvens | 50 - 60 Hz |
Logistik data | |
Harmoniseret systemkode (HS) | 84714100 |
Vægt & størrelser | |
Bredde | 176 mm |
Dybde | 670 mm |
Højde | 438 mm |
Vægt | 36 kg |
Tekniske detaljer | |
Bæredygtighedscertifikater | ENERGY STAR |
