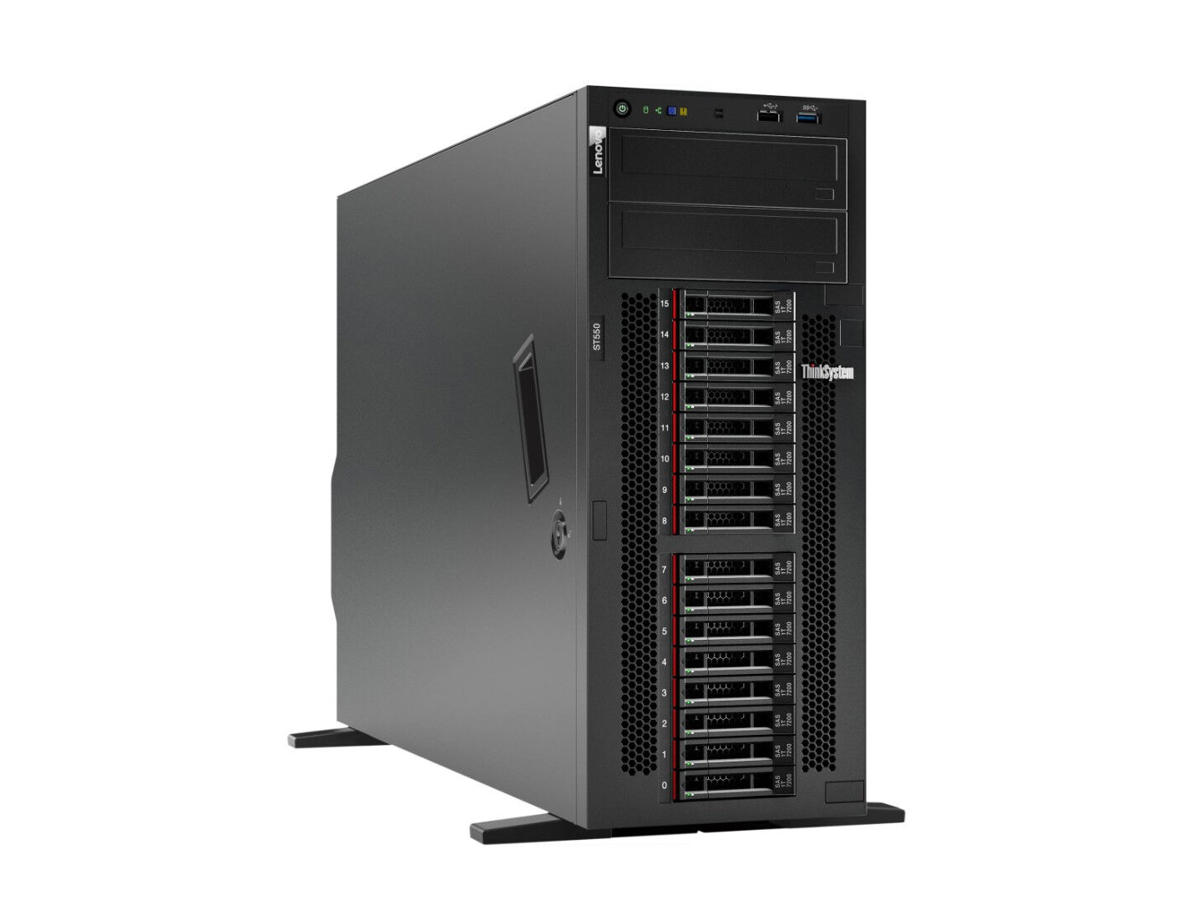

Lenovo ThinkSystem ST550 server Tower Intel® Xeon Silver 4208 2,1 GHz 16 GB DDR4-SDRAM 1100 W
Varenummer: 7X10A07TEA
.
DKK 65.287,50 / Stk
DKK 52.230,00 ekskl. moms
  •
Lenovo ThinkSystem ST550. Processorserie: Intel® Xeon Silver, Processorfrekvens: 2,1 GHz, Processormodel: 4208. Intern hukommelse: 16 GB, Intern hukommelsestype: DDR4-SDRAM, Hukommelseslayout (slots x størrelse): 1 x 16 GB. HDD-grænseflade: SATA, Serial Attached SCSI (SAS). Ethernet LAN, Kabelteknologi: 10/100/1000Base-T(X). Strømforsyning: 1100 W, Redundant strømforsyning. Kabinettype: Tower


Mere information

  • Enterprise enabled, ROBO ready
    The Lenovo ThinkSystem ST550 is a scalable 4U tower server that features powerful Intel® Xeon® processor Scalable family CPUs. It provides the performance and reliability you expect from the data center, but optimized for office environments, with physical security and whisper-quiet operation. Its compact footprint uses 37 percent less space than its predecessor*, making it ideal for under-desk, deskside, or rack-mount use. ST550 is ideal for email/file/print and web serving, IT infrastructure, virtualization, VDI, and private cloud.

    Compact, secure, flexible
    ST550 supports up to 96.4TB of internal storage capacity, and Lenovo AnyBay technology enables the mixing and matching of storage types (U.2/SAS/SATA) in the same bays. Up to 6x PCIe adapter slots and multiple hardware and software RAID options offer the flexibility you need for NICs, GPUs, and other adapters.

    Physical and software security technologies, including lockable security bezel, Kensington lock slot, chassis intrusion switch, and TPM 1.2/2.0, are ideal for remote locations without the protection of a data center. ST550 also offers money-saving features, such as highly energy-efficient 80 PLUS Platinum and Titanium hot-swap PSUs, continuous operation up to 45°C, and easy centralized management via XClarity software.

    High-performance, reliable, manageable
    ST550 features more processor cores, memory, and I/O bandwidth than previous generations. It also provides more memory channels; 12Gb SAS interconnects; and support for HDD, SSD, NVMe, and M.2 drives; as well as high-performance GPUs—all at a lower price than previous generations.

    Faster processors and memory, more cores, and support for NVMe and M.2 drives contribute to significantly better performance than the previous generation. In addition, optional NVMe drives provide ultra-fast storage that can be tiered for greater application performance. Combining enterprise-class RAS features and shared components across the server portfolio increases reliability, promotes greater peace of mind, and reduces TCO.

    XClarity Controller is the management hardware engine inside every ThinkSystem server, and XClarity Administrator centralizes management of your ThinkSystem and ThinkAgile infrastructure. With Redfish APIs and XClarity integrators you can easily integrate the Lenovo infrastructure into higher-level IT applications.

  • Processor
    Processorserie Intel® Xeon Silver
    Processorproducent Intel
    Processormodel 4208
    Processorfrekvens 2,1 GHz
    Processorgeneration Intel Xeon skalerbar 2. generation
    Processor boost frekvens 3,2 GHz
    Processorkerner 8
    Processor-cache 11 MB
    Antal installerede processorer 1
    Thermal Design Power (TDP) 85 W
    Processor sokkel LGA 3647 (Socket P)
    Processor litografi 14 nm
    Processortråde 16
    Processor driftstilstande 64-bit
    Processor kodenavn Cascade Lake
    Tcase 78 °C
    Maksimal intern hukommelse understøttet af processor 1,02 TB
    Hukommelsestyper understøttet af processor DDR4-SDRAM
    Hukommelsesurhastigheder understøttet af processor 2400 Mhz
    Udfør deaktivering af bit Ja
    Maksimalt antal PCI Express-kanaler 48
    Processor-pakke størrelse 76.0 x 56.5 mm
    Understøttede instruktionssæt AVX-512
    Skalerbarhed 2S
    Indlejret tilgængelige muligheder Ingen
    Intel® Optane™ Memory Ready Ingen
    Hukommelse
    Intern hukommelse 16 GB
    Intern hukommelsestype DDR4-SDRAM
    Maksimal intern hukommelse 768 GB
    Hukommelsesstik 12
    Fejlkorrigerende kode Ja
    Hukommelsesur hastighed 2666 Mhz
    Hukommelseslayout (slots x størrelse) 1 x 16 GB
    Lagring
    Understøtter RAID Ja
    Optisk drevtype Ingen
    HDD-grænseflade SATA, Serial Attached SCSI (SAS)
    RAID-niveauer 0, 1, 5, 6, 10, 50, 60
    Understøttede RAID-kontroller 930-8i
    Grafik
    On-board grafikkort, model Ikke tilgængelig
    Netværk
    Ethernet LAN Ja
    Kabelteknologi 10/100/1000Base-T(X)
    Porte & Grænseflader
    Antal USB 2.0-porte 3
    Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3
    Antal VGA-porte (D-sub) 1
    Udvidelsessokler
    PCI Ekspres x8 (Gen 3.x) slots 2
    PCI Ekspres x16 (Gen 3.x) slots 2
    PCI Express slots version 3.0
    Design
    Kabinettype Tower
    Præstation
    Trusted Platform Module (TPM) Ja
    Trusted Platform Module (TPM) version 2.0
    Software
    Operativsystem installeret Ingen
    Kompatible operativsystemer Microsoft Windows Server 2016/2012 R2 Red Hat Enterprise Linux 6/7 x64 Linux Enterprise Server 12 SP2/11 SP4 VMware vSphere (ESXi) 6.5/6.0 U3
    Processor særlige funktioner
    Enhanced Intel SpeedStep Teknologi Ja
    Intel® Virtualization Technology for Directed I/O (VT-d) Ja
    Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja
    Intel® Turbo Boost Teknologi 2.0
    Intel® AES Nye Instruktioner (Intel® AES-NI) Ja
    Intel® Trusted Execution Teknologi Ja
    Intel® VT-x with Extended Page Tables (EPT) Ja
    Intel® TSX-NI Ja
    Intel® 64 Ja
    Intel® Virtualization Technology (VT-x) Ja
    Processor ARK ID 193390
    Strømstyring
    Redundant strømforsyning Ja
    Strømforsyning 1100 W
    Vægt & størrelser
    Bredde 176 mm
    Dybde 670 mm
    Tekniske detaljer
    Bæredygtighedscertifikater ENERGY STAR
