Varenummer: 7D8JA043EA
Mere information
-
The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.
The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server supports one Intel Xeon E-2300 Series processor (formerly codenamed "Rocket Lake") or Intel Pentium ("Comet Lake Refresh") and up to 128 GB of 3200 MHz TruDDR4 ECC memory.

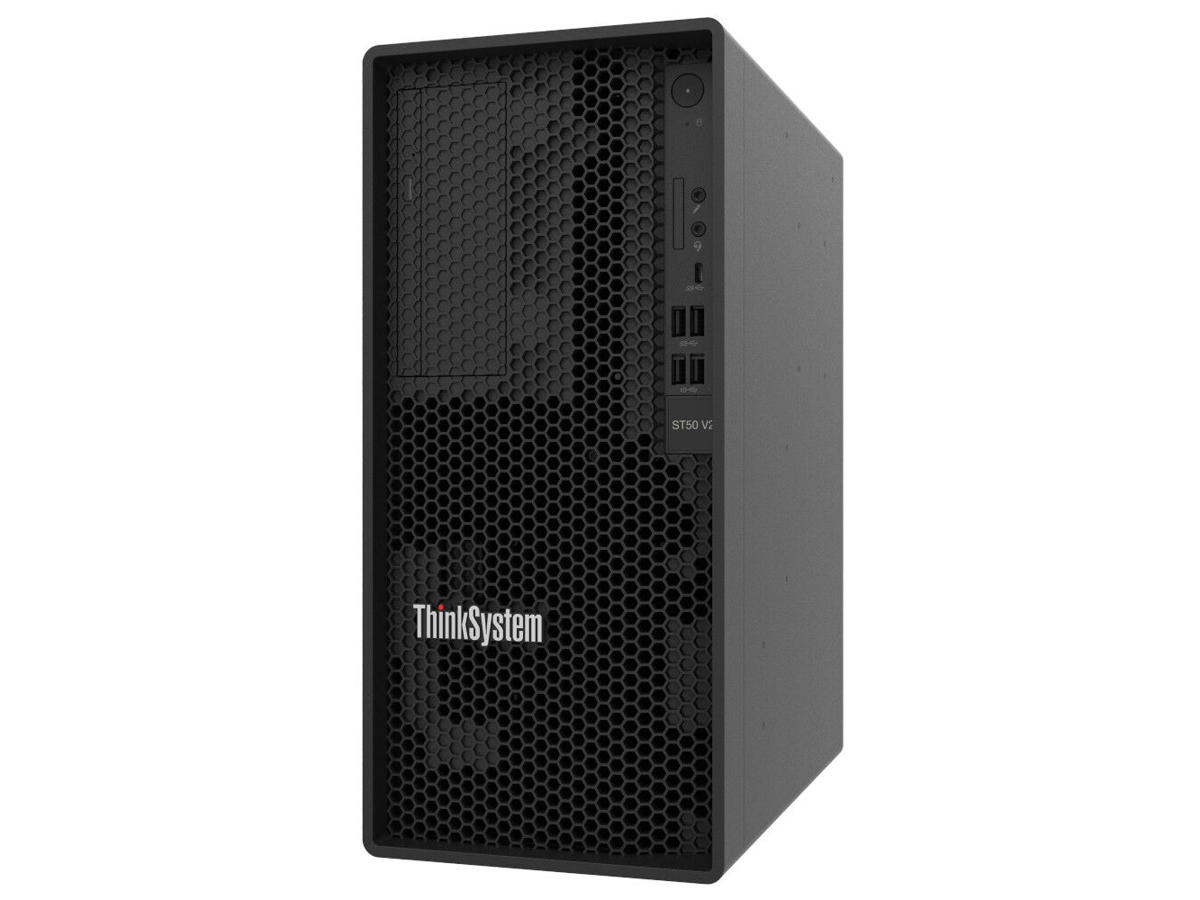

The following figure shows the ThinkSystem ST50 V2. -
Processor Processorserie Intel Xeon E Processorproducent Intel Processormodel E-2324G Processorfrekvens 3,1 GHz Processor boost frekvens 4,6 GHz Processorkerner 4 Processor-cache 8 MB Bundkort chipsæt Intel C256 Antal installerede processorer 1 Hukommelse Intern hukommelse 16 GB Intern hukommelsestype DDR4-SDRAM Maksimal intern hukommelse 128 GB Hukommelsesstik 4x DIMM Fejlkorrigerende kode Ja Hukommelseslayout (slots x størrelse) 1 x 16 GB Lagring Maksimal lagerkapacitet 16 TB Samlet lagringskapacitet 1,92 TB Understøtter RAID Ja Optisk drevtype Ingen Antal installerede SSD'er 2 SDD-kapacitet 960 GB SSD-størrelse 3.5" Understøttede SSD-størrelser 2.5", 3.5" Antal understøttede SSD'er 2 Hot-swap Ingen Grafik On-board grafikkort Ja On-board grafikkort, model Intel UHD Graphics P750 Netværk Wi-Fi Ingen LAN Kontroller Intel® I219-LM Ethernet LAN Ja Kabelteknologi 10/100/1000Base-T(X) Ethernet-grænsefladetype Gigabit Ethernet Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 6 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte 2 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte 1 Antal serielle porte 1 Antal DisplayPorts 2 Udvidelsessokler PCI Ekspres x1 (Gen 3.x) slots 1 PCU Ekspres x4 (Gen 3.x) slots 1 PCI Express x16 (Gen 4.x) slots 1 Design Kabinettype Tower Produktfarve Sort Præstation Trusted Platform Module (TPM) Ja Trusted Platform Module (TPM) version 2.0 Software Operativsystem installeret Ingen Kompatible operativsystemer Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi Processor særlige funktioner CPU-konfiguration (maks.) 1 Strømstyring Redundant strømforsyning Ingen Strømforsyning 500 W Driftsbetingelser Driftstemperatur (T-T) 5 - 45 °C Opbevaringstemperatur (T-T) -40 - 60 °C Relativ luftfugtighed ved drift (H-H) 8 - 90% Relativ luftfugtighed ved opbevaring (H-H) 8 - 90% Driftshøjde 0 - 3050 m Vægt & størrelser Bredde 170 mm Dybde 316 mm Højde 376 mm Andre funktioner Garantiperiode 3 År
