Varenummer: 7DG9A019EA
Mere information
-

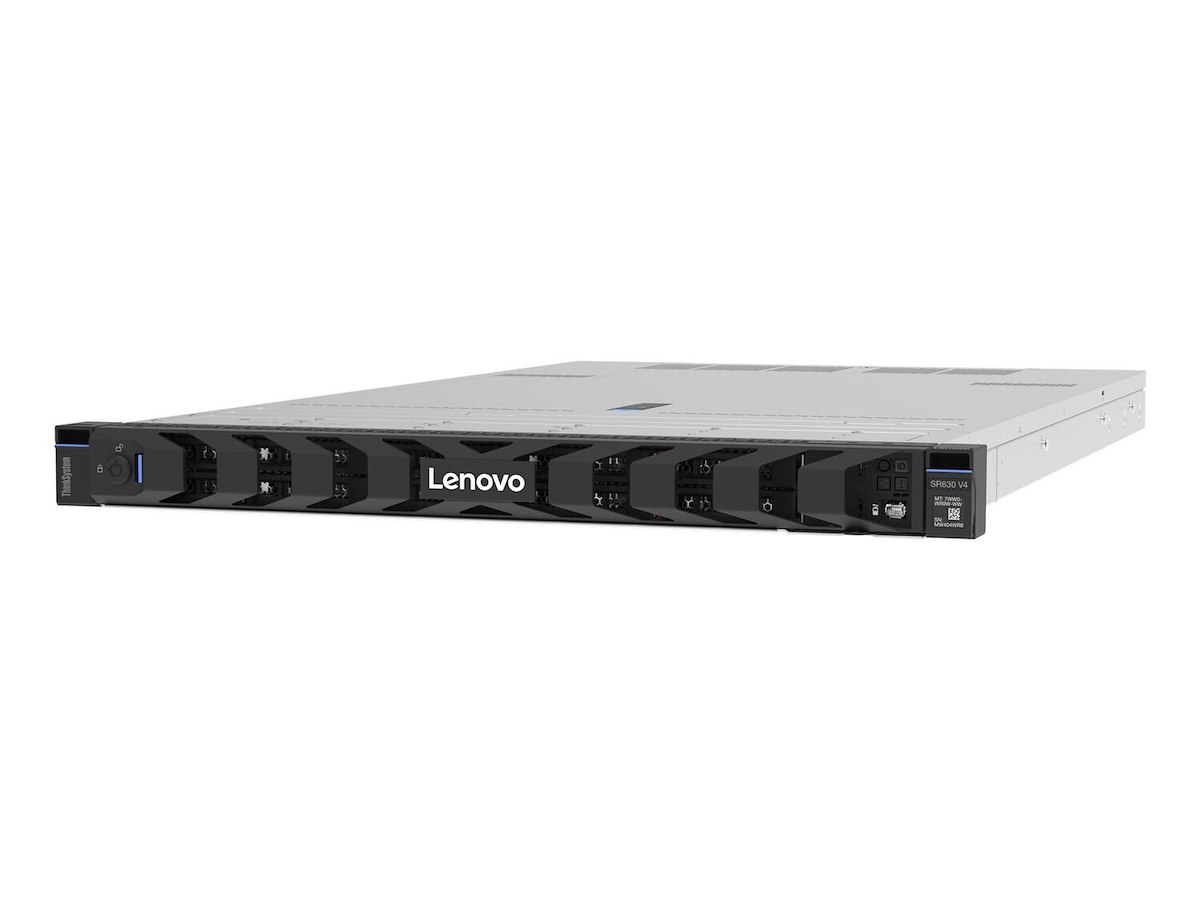

The Lenovo ThinkSystem SR630 V4 is an ideal 2-socket 1U rack server for customers that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. With two Intel Xeon 6700-series or 6500-series processors, the SR630 V4 is designed for high density and scale-out workloads in various customer segments.
This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V4 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V4 and consider its use in IT solutions. -
Processor Processorserie Intel Xeon 6 Processorproducent Intel Processorfrekvens 4 GHz Processor boost frekvens 4,3 GHz Processorkerner 8 Processor-cache 48 MB Antal installerede processorer 1 Processortråde 16 Hukommelse Intern hukommelse 256 GB Intern hukommelsestype DDR5-SDRAM Maksimal intern hukommelse 8 TB Hukommelsesstik 32x DIMM Fejlkorrigerende kode Ja Hukommelseslayout (slots x størrelse) 4 x 64 GB Lagring Understøtter RAID Ja Optisk drevtype Ingen Antal understøttede HHD'er 8 Understøttede HDD-størrelser 2.5" RAID-niveauer 0, 1, 5, 6, 10, 50, 60 Understøttede RAID-kontroller 940-8i 4GB Hot-swap Ja Interne drevbåse 8 Grafik On-board grafikkort Ja Maksimal grafikadapterhukommelse 16 MB Netværk Ethernet LAN Ja Kabelteknologi 10/100/1000Base-T(X) Ethernet-grænsefladetype Gigabit Ethernet Porte & Grænseflader Ethernet LAN-porte (RJ-45) 1 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 4 Antal VGA-porte (D-sub) 1 Design Kabinettype Stativ (1U) Produktfarve Sort, Stål Kølingstype Aktiv Stativ-montering Ja Præstation Målstyring XClarity Controller Platinum Trusted Platform Module (TPM) Ja Trusted Platform Module (TPM) version 2.0 Software Kompatible operativsystemer Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server Strømstyring Redundant strømforsyning Ja Strømforsyning 1300 W Antal understøttede overflødige strømforsyninger 1 Vægt & størrelser Bredde 440 mm Dybde 773 mm Højde 43 mm Tekniske detaljer Compliance-certifikater CCC, CE, CECP, Federal Communications Commission (FCC), RoHS, UKCA, UL
