Varenummer: 7Z71A07KEA
Mere information
-

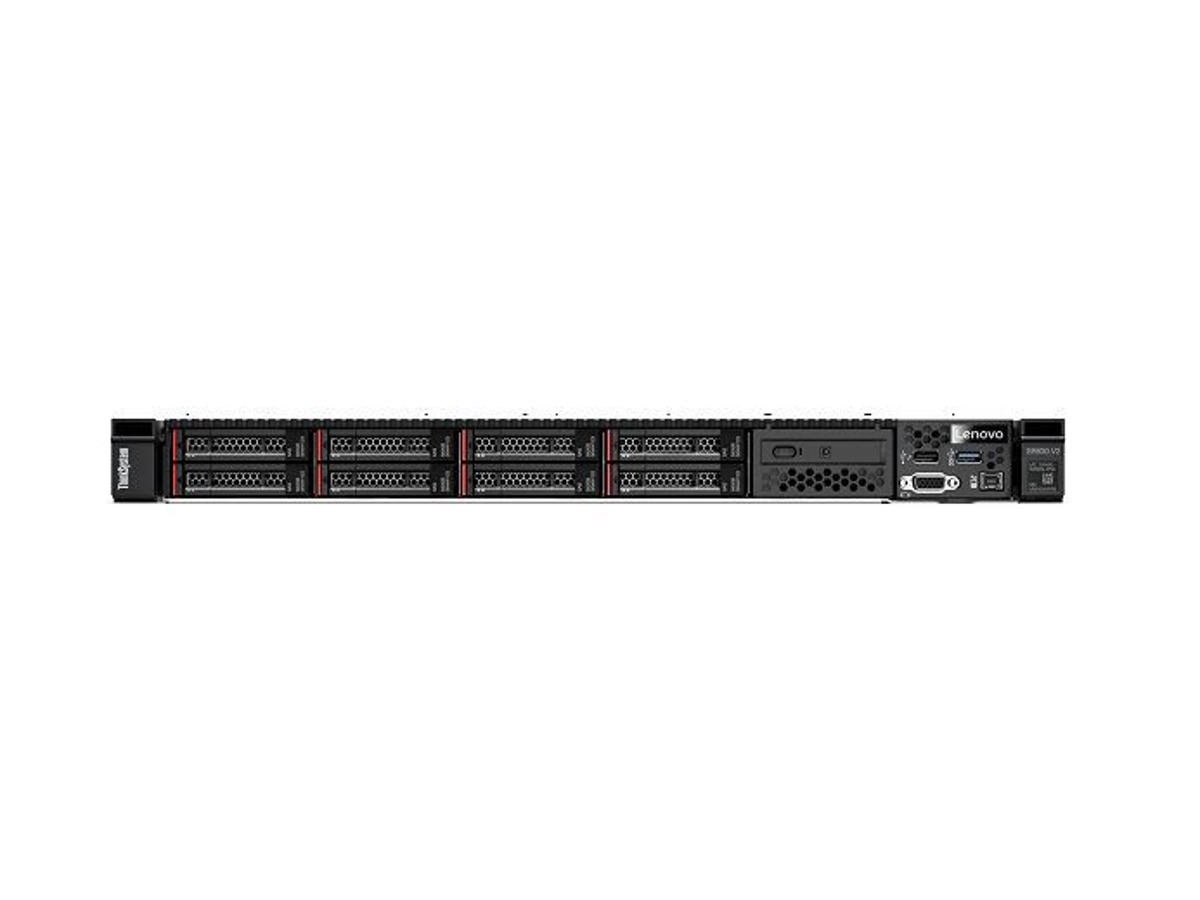

ThinkSystem SR630 V2 Rack Server
Built for business, with business-critical versatility
The versatile, highly reliable 1U ThinkSystem SR630 V2 2P rack server is designed to handle hybrid data center workloads, from IT infrastructure and HPC to cloud and hyperconverged.
Future defined data center
Lenovo delivers engineered, tested and certified IT solutions that are high performance, scalable and cost-effective. By combining industry-leading x86 server technology and reliability, partnering to deliver best-in class co-innovation and providing end-to-end peace of mind with Lenovo ThinkShield, XClarity, and Services, Lenovo solutions enable customers to use real-time data to drive actionable insights. As the compute for these solutions, ThinkSystem SR630 V2 makes businesses smarter by providing support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-optimized support
ThinkSystem SR630 V2 is tuned for Intel® Optane™ Persistent Memory 200 series. With this second generation of high performing persistent memory tier optimized for 3rd generation Intel® Xeon® Scalable processors, it offers significantly lower data latency, higher capacities and greater value. With data stored closer to the processor, applications can access data faster driving swifter response times for real-time analytics, financial transactions, electronic medical records, fraud detection, and much more.
Flexible storage
Industry leading backplane design for Lenovo AnyBay™ features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, U.2 & U.3 NVMe PCIe drives, or EDSFF-based SSDs. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed. -
Processor Processorserie Intel® Xeon® Gold Processorproducent Intel Processormodel 6326 Processorfrekvens 2,9 GHz Processorgeneration Intel Xeon skalerbar 3. generation Processor boost frekvens 3,5 GHz Processorkerner 16 Processor-cache 24 MB Bundkort chipsæt Intel C621A Antal installerede processorer 1 Hukommelse Intern hukommelse 32 GB Intern hukommelsestype DDR4-SDRAM Hukommelse rangering 2 Hukommelsesstik 32x DIMM Fejlkorrigerende kode Ja Hukommelsesur hastighed 3200 MHz Hukommelseslayout (slots x størrelse) 1 x 32 GB Lagring Understøtter RAID Ja Optisk drevtype Ingen Antal understøttede HHD'er 8 Understøttede HDD-størrelser 2.5" Understøttede RAID-kontroller 9350-8i Hot-swap Ja Interne drevbåse 8 Grafik On-board grafikkort Ja On-board grafikkort, model Matrox G200 Maksimal grafikadapterhukommelse 16 MB Netværk Wake-on-LAN klar Ja LAN Kontroller Broadcom 57416 Ethernet LAN Ja Ethernet-grænsefladetype 10 Gigabit Ethernet Porte & Grænseflader Ethernet LAN-porte (RJ-45) 2 Antal USB 2.0-porte 1 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 4 Antal VGA-porte (D-sub) 1 Udvidelsessokler PCI Express x16 (Gen 4.x) slots 2 Design Kabinettype Stativ (1U) Produktfarve Sort Stativ-montering Ja Understøttelse af redundante blæsere Ja Præstation Målstyring XClarity Enterprise BIOS-type UEFI Trusted Platform Module (TPM) Ja Trusted Platform Module (TPM) version 2.0 Software Operativsystem installeret Ingen Kompatible operativsystemer Microsoft Windows Server 2016 Microsoft Windows Server 2019 Microsoft Windows Server 2022 Red Hat Enterprise Linux 7.9 Red Hat Enterprise Linux 8.2 Red Hat Enterprise Linux 8.3 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 12 Xen SP5 SUSE Linux Enterprise Server 15 SP2 SUSE Linux Enterprise Server 15 Xen SP2 VMware ESXi 6.7 U3 VMware ESXi 7.0 U2 Strømstyring Redundant strømforsyning Ja Strømforsyning 1100 W Antal understøttede overflødige strømforsyninger 2 Driftsbetingelser Opbevaringstemperatur (T-T) -40 - 60 °C Relativ luftfugtighed ved opbevaring (H-H) 8 - 90% Vægt & størrelser Bredde 440 mm Dybde 773 mm Højde 43 mm
