Varenummer: 7X02A0ESEA
Mere information
-

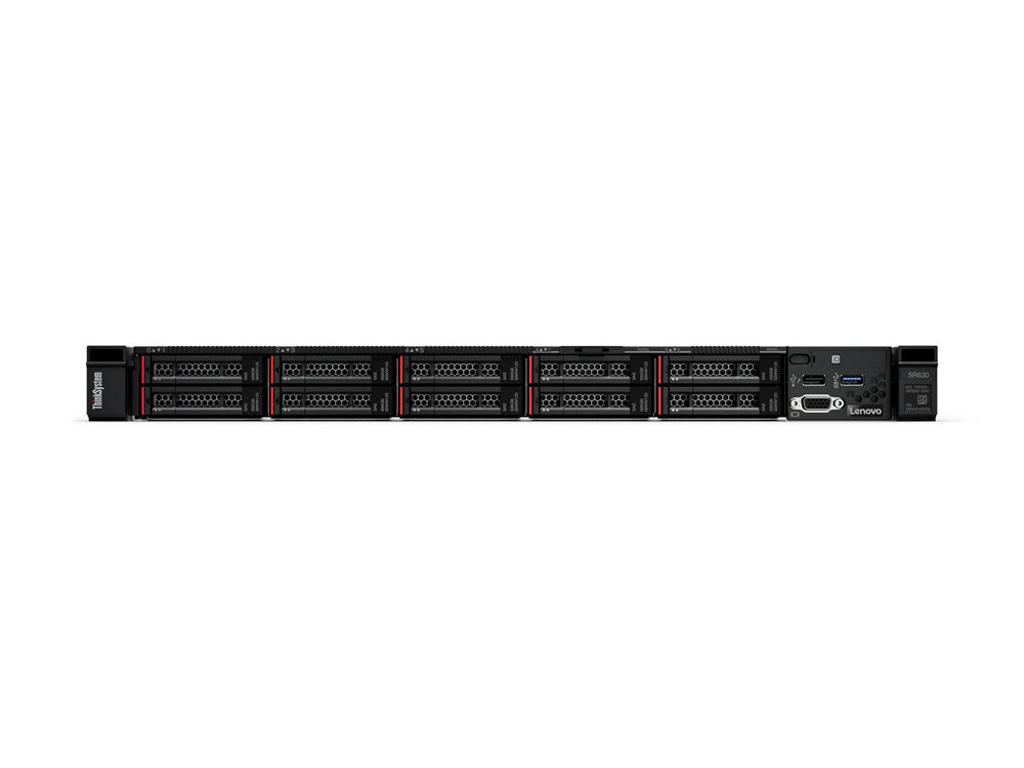

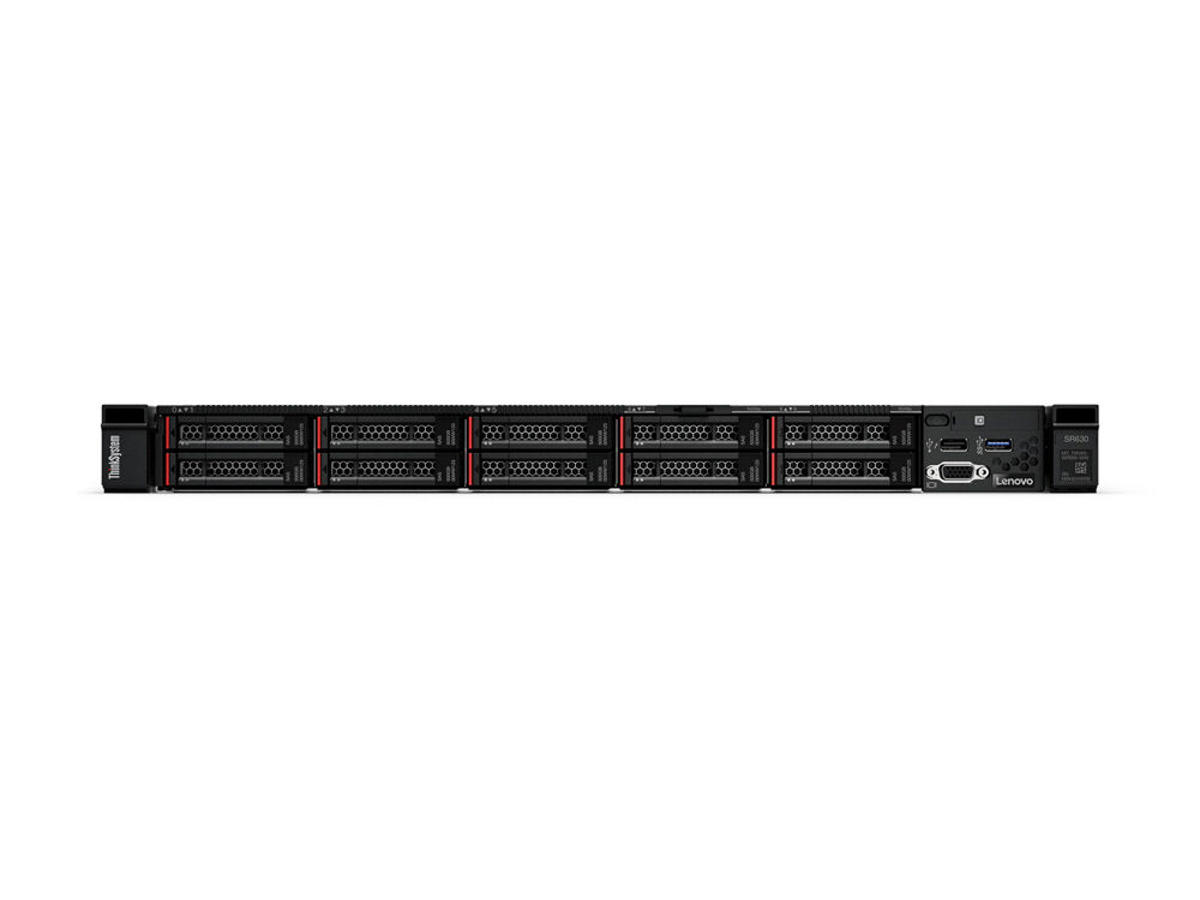

Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
This product guide provides essential technical and pre-sales information on the SR630 server, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 server and consider its use in IT solutions. -
Processor Processorserie Intel® Xeon® Gold Processorproducent Intel Processormodel 6240R Processorfrekvens 2,4 GHz Processorgeneration Intel Xeon skalerbar 2. generation Processor boost frekvens 4 GHz Processorkerner 24 Processor-cache 35,75 MB Bundkort chipsæt Intel® C624 Antal installerede processorer 1 Thermal Design Power (TDP) 165 W Processor sokkel LGA 3647 (Socket P) Processor litografi 14 nm Processortråde 48 Processor driftstilstande 64-bit Processor kodenavn Cascade Lake Tcase 90 °C Maksimal intern hukommelse understøttet af processor 1 TB Hukommelsestyper understøttet af processor DDR4-SDRAM Hukommelsesurhastigheder understøttet af processor 2933 MHz Udfør deaktivering af bit Ja Maksimalt antal PCI Express-kanaler 48 Processor-pakke størrelse 76.0 x 56.5 mm Understøttede instruktionssæt SSE4.2, AVX, AVX 2.0, AVX-512 Skalerbarhed 2S Indlejret tilgængelige muligheder Ingen Hukommelse Intern hukommelse 32 GB Intern hukommelsestype DDR4-SDRAM Hukommelsesstik 24 Fejlkorrigerende kode Ja Hukommelsesur hastighed 2933 MHz Hukommelseslayout (slots x størrelse) 1 x 32 GB Lagring Understøtter RAID Ja Optisk drevtype Ingen RAID-niveauer 0, 1, 5, 6, 10, 50, 60 Understøttede RAID-kontroller 930-8i 2GB Interne drevbåse 8 Grafik On-board grafikkort, model Ikke tilgængelig Netværk Wi-Fi Ingen Ethernet LAN Ja Kabelteknologi 10/100/1000Base-T(X) Udvidelsessokler PCI Ekspres x8 slots 2 PCI Express x16 slots 1 PCI Express slots version 3.0 Design Kabinettype Stativ (1U) Produktfarve Sort, Metallic Stativ-montering Ja Understøttelse af redundante blæsere Ja Rack skinner Ja Præstation Målstyring XClarity Enterprise Trusted Platform Module (TPM) Ja Software Kompatible operativsystemer Microsoft Windows Server 2016 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 7.4 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 6.9 Server x64 Edition SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 11 for AMD64/EM64TSP4 VMware vSphere 6.5 (ESXi) Update 1 VMware vSphere 6.5 (ESXi) VMware vSphere 6.0 (ESXi) Update 3 Processor særlige funktioner Enhanced Intel SpeedStep Teknologi Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Turbo Boost Teknologi 2.0 Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Intel® Trusted Execution Teknologi Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® 64 Ja Intel® Virtualization Technology (VT-x) Ja Processor ARK ID 199343 Strømstyring Redundant strømforsyning Ja Strømforsyning 750 W Antal installerede strømforsyninger 1 Strømforsyningens indgangsfrekvens 50 - 60 Hz Driftsbetingelser Driftstemperatur (T-T) 5 - 45 °C Opbevaringstemperatur (T-T) -40 - 60 °C Relativ luftfugtighed ved drift (H-H) 8 - 90% Relativ luftfugtighed ved opbevaring (H-H) 8 - 90% Driftshøjde 0 - 3050 m Logistik data Harmoniseret systemkode (HS) 84714100 Bæredygtighed Bæredygtighedscertifikater ENERGY STAR Vægt & størrelser Bredde 435 mm Dybde 750 mm Højde 43 mm
