Essential and priced within reach

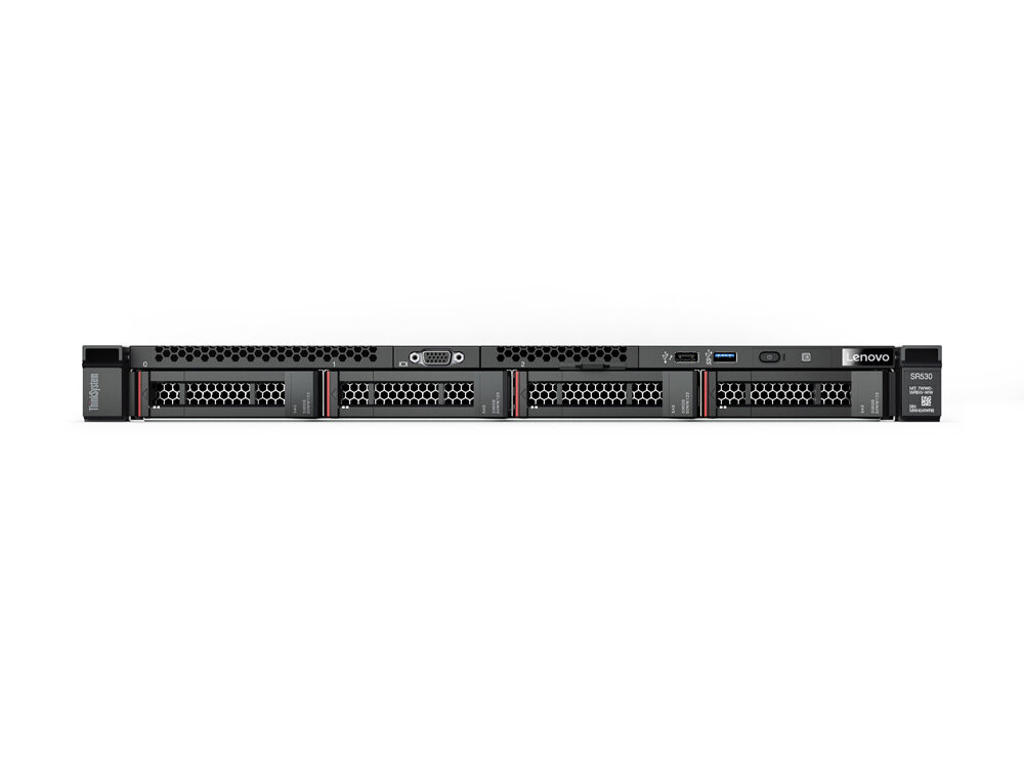

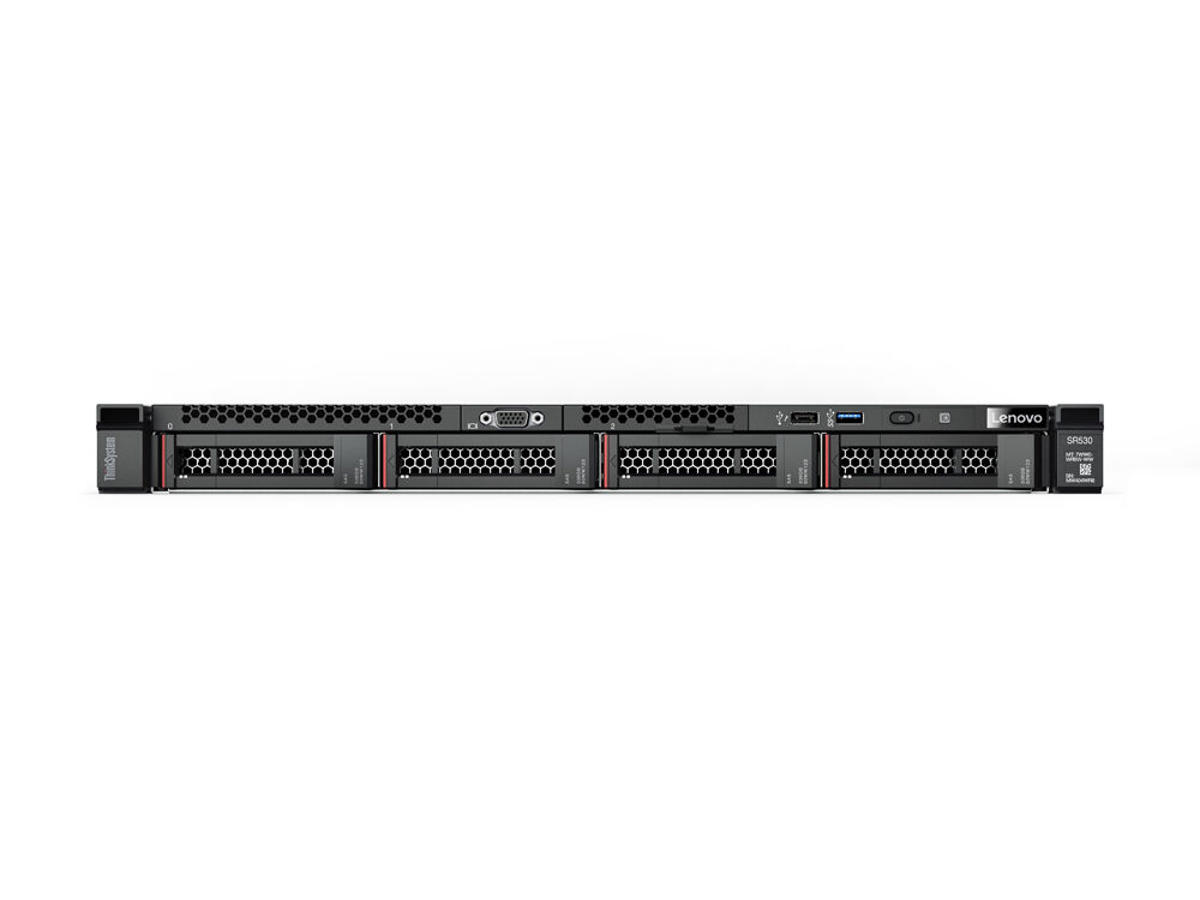

Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.
Flexible to grow with your business
ThinkSystem SR530 offers numerous features to increase performance and flexibility. Incorporating two Intel® Xeon® Scalable family CPUs with 43 percent more cores, faster memory, increased I/O, and more storage capacity than the previous generation*, SR530 offers a balance of performance, capacity and value. With M.2 storage support, it provides robust boot drive options, freeing up the other drive bays for additional storage capacity. SR530 supports up to three PCIe adapter slots; several choices of network options via embedded LOM, selectable LOM, ML2, and PCIe adapters for additional 1GbE/10GbE ports; and software and hardware RAID options for added configuration flexibility. In addition, features such as 80 PLUS Platinum and Titanium PSUs, continuous operation at 45°C (with limitations), and various technologies that speed upgrades and maintenance all combine to reduce your operating costs and increase uptime.
Easily managed
Lenovo XClarity Controller is an all-new hardware embedded management engine common in every ThinkSystem server. XClarity Controller features an uncluttered graphical user interface, industry standard Redfish-compliant REST APIs, and enables booting in half the time of prior generation servers, with up to 6x faster firmware updates.
Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking. Via reusable patterns and policies, it ramps up and scales infrastructure provisioning and maintenance. It serves as a central integration point to extend your data center management processes to physical IT. Running XClarity Integrators in external IT applications, or integrating through REST APIs, helps you further speed services provisioning, streamline IT management, and contain costs.
Lenovo servers continue to be the industry’s #1 most reliable†, with the industry’s highest customer satisfaction‡ rating. -
Processor Processorserie Intel® Xeon Silver Processorproducent Intel Processormodel 4210 Processorfrekvens 2,2 GHz Processorgeneration Intel Xeon skalerbar 2. generation Processor boost frekvens 3,2 GHz Processorkerner 10 Processor-cache 13,75 MB Antal installerede processorer 1 Thermal Design Power (TDP) 85 W Processor sokkel LGA 3647 (Socket P) Processor litografi 14 nm Processortråde 20 Processor driftstilstande 64-bit Processor kodenavn Cascade Lake Tcase 78 °C Maksimal intern hukommelse understøttet af processor 1 TB Hukommelsestyper understøttet af processor DDR4-SDRAM Hukommelsesurhastigheder understøttet af processor 2400 MHz Udfør deaktivering af bit Ja Maksimalt antal PCI Express-kanaler 48 Processor-pakke størrelse 76.0 x 56.5 mm Understøttede instruktionssæt AVX-512 Skalerbarhed 2S Indlejret tilgængelige muligheder Ja Hukommelse Intern hukommelse 16 GB Intern hukommelsestype DDR4-SDRAM Lagring Samlet lagringskapacitet 0 GB Understøtter RAID Ja Optisk drevtype Ingen Understøttede HDD-størrelser 2.5,3.5" Understøttede RAID-kontroller 930-8i 2GB Flash Hot-swap Ja Understøttede lagerdrev brugerflader SAS, Serial ATA III Grafik On-board grafikkort, model Ikke tilgængelig Netværk Ethernet LAN Ja Kabelteknologi 10/100/1000Base-T(X) Porte & Grænseflader Ethernet LAN-porte (RJ-45) 2 Udvidelsessokler PCI Ekspres x8 (Gen 3.x) slots 2 PCI Ekspres x16 (Gen 3.x) slots 1 PCI Express slots version 3.0 Design Kabinettype Stativ (1U) Stativ-montering Ja Understøttelse af redundante blæsere Ja Rack skinner Ja Præstation Målstyring XClarity Advanced Trusted Platform Module (TPM) Ja Trusted Platform Module (TPM) version 2.0 Processor særlige funktioner Enhanced Intel SpeedStep Teknologi Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Turbo Boost Teknologi 2.0 Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Intel® Trusted Execution Teknologi Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® TSX-NI Ja Intel® 64 Ja Intel® Virtualization Technology (VT-x) Ja Processor ARK ID 193384 Strømstyring Redundant strømforsyning Ja Strømforsyning 750 W Antal installerede strømforsyninger 1 Strømforsyningens indgangsfrekvens 50 - 60 Hz Driftsbetingelser Driftstemperatur (T-T) 5 - 45 °C Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 8 - 90% Relativ luftfugtighed ved opbevaring (H-H) 8 - 90% Driftshøjde 0 - 3048 m Logistik data Harmoniseret systemkode (HS) 84714100 Bæredygtighed Bæredygtighedscertifikater ENERGY STAR Vægt & størrelser Bredde 482 mm Dybde 778,3 mm Højde 43 mm Vægt 10,2 kg
