Varenummer: 5463E2G
Mere information
-
- Optimize your workloads with choice of flexible storage-based configurations, designed for infrastructure basics to business-critical applications
- Reduce unplanned downtime and minimize costs with industry-leading reliability features and tools
- Safeguard enterprise data with built-in System x® Trusted Platform Assurance, an exclusive set of security features and practices, plus optional self-encrypting drives and IBM Security Key Lifecycle Manager
- Gain superior performance with Intel Xeon E5-2600 v3 processors (up to 36 cores per server), end-to-end 12 Gbps RAID support—devices and infrastructure
- Run up to 131 percent greater java workload performance,1 up to 61 percent greater virtualization performance,2 and up to 59 percent greater database performance3 per system than the previous generation
- Reduce data center costs with smart energy-efficient features, including unique 40° C operating temperature, Titanium power supplies (up to 96 percent efficiency), active/standby power supply modes, dual fan zone design, and TruDDR4™ Memory (with up to 45 percent lower energy use over DDR3)4
- Run more virtual machines and workloads with up to 50 percent more cores and cache and 2x more memory capacity than previous generation

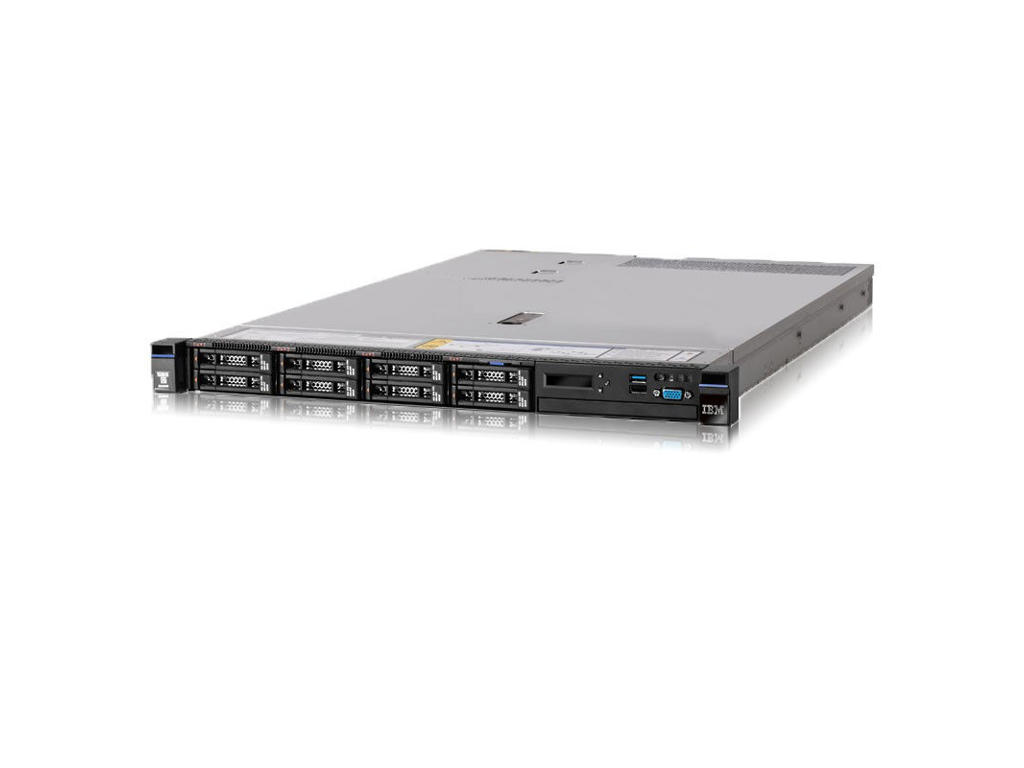

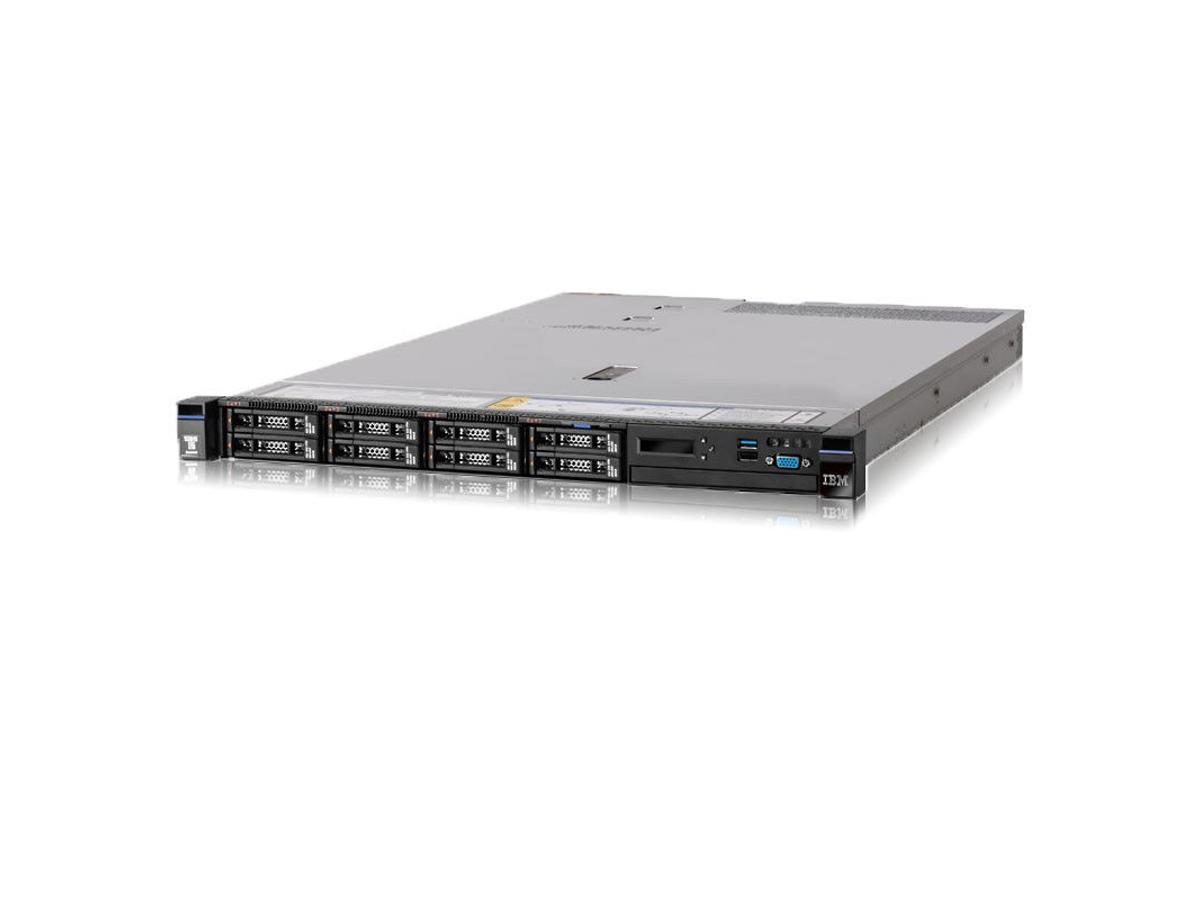

Designed in a compact, versatile 1U two-socket rack server, the System x3550 M5 rack server fuels almost any workload from infrastructure to high performance computing to Cloud or Big Data with leadership security, efficiency, and reliability. Integrated with up to two Intel E5-2600 v3 series CPUs with faster, energy-efficient TruDDR4™ Memory, the x3550 M5 delivers exceptional performance. Storage can include up to 12 drives in an impressive selection of sizes and types.
Smart design adds flexibility for workload-tuned performance
The x3550 M5 incorporates energy smart features for minimized costs and efficient performance. Dual fan zones support operation in up to 40° C environments. Available 80 PLUS® Titanium power supply units (PSUs) can deliver 96 percent efficiency at 50 percent load. With twice the memory, up to 131 percent greater performance,1 and 50 percent more cores and cache per system than the previous generation, the x3550 M5 lets your workloads fly. -
Processor Processorserie Intel® Xeon E5 v3, Intel Xeon E5-2600 v3 Processorproducent Intel Processormodel E5-2620V3 Processorfrekvens 2,4 GHz Processor boost frekvens 3,2 GHz Processorkerner 6 Processor-cache 15 MB Hukommelseskanaler understøttet af processor Quad Antal installerede processorer 1 Thermal Design Power (TDP) 85 W Processor cache type Smart cache Systembus-hastighed 8 GT/s Kompatibel processor serie Intel® Xeon® Processor sokkel LGA 2011-v3 Processor litografi 22 nm Processortråde 12 Processor driftstilstande 64-bit Stepping R2 FSB Paritet Ingen Bus type QPI Antal QPI-lins 2 Processor kodenavn Haswell Tcase 72,6 °C Maksimal intern hukommelse understøttet af processor 768 GB Hukommelsestyper understøttet af processor DDR4-SDRAM Hukommelsesurhastigheder understøttet af processor 1600,1866 MHz Hukommelsesbåndbredde understøttet af processor (maks.) 59 GB/sek. Fejlkorrigerende kode understøttet af processor Ja Udfør deaktivering af bit Ja Idle status Ja Termiske overvågningsteknologier Ja Maksimalt antal PCI Express-kanaler 40 PCI Express-konfigurationer x4, x8, x16 Processor-pakke størrelse 52.5 x 45 mm Understøttede instruktionssæt AVX Processor kode SR207 Skalerbarhed 2S Fysisk adresseudvidelse (PAE) Ja Fysisk adresse udvidelse (PAE) 46 Bit Indlejret tilgængelige muligheder Ja Konfliktfri processor Ingen Hukommelse Intern hukommelse 8 GB Intern hukommelsestype DDR3-SDRAM Maksimal intern hukommelse 1,5 TB Hukommelsesstik 24 Fejlkorrigerende kode Ja Hukommelsesur hastighed 1866 MHz Hukommelseslayout (slots x størrelse) 1 x 8 GB Lagring Samlet lagringskapacitet 0 GB Understøtter RAID Ja Optisk drevtype DVD Super Multi DL Antal installerede HDD'er 0 HDD-grænseflade Serial ATA III, Serial Attached SCSI (SAS) HDD-størrelse 2.5/3.5" SSD-grænsefladetype Serial Attached SCSI (SAS) RAID-niveauer 1, 5, 6, 10, 50, 60 Hot-swap Ja Grafik On-board grafikkort, model Ikke tilgængelig Netværk Ethernet LAN Ja Kabelteknologi 10/100/1000Base-T(X) Ethernet-grænsefladetype Hurtigt ethernet, Gigabit Ethernet Porte & Grænseflader Ethernet LAN-porte (RJ-45) 4 Udvidelsessokler PCI Express slots version 3.0 Design Kabinettype Stativ (1U) Understøttelse af redundante blæsere Ja Præstation Trusted Platform Module (TPM) Ja Software Operativsystem installeret Ingen Kompatible operativsystemer Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSpher Processor særlige funktioner CPU-konfiguration (maks.) 2 Intel® Rapid Storage Teknologi Ingen Enhanced Intel SpeedStep Teknologi Ja Intel® Identity Protection Teknologi (Intel® IPT) Ingen Intel® Wireless Display (Intel® WiDi) Ingen Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Anti-Theft Teknologi (Intel® AT) Ingen Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® My WiFi Teknologi (Intel® MWT) Ingen Intel® Turbo Boost Teknologi 2.0 Intel® Quick Sync Video Teknologi Ingen Intel® InTru™ 3D Teknologi Ingen Intel® Clear Video HD Teknologi (Intel® CVT HD) Ingen Intel® Insider™ Ingen Intel® Flex Memory Access Ingen Intel® Smart Cache Ja Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Intel® Trusted Execution Teknologi Ja Intel® Enhanced Halt State Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® Demand Based Switching Ja Intel® Sikker Nøgle Ja Intel® TSX-NI Ingen Intel® OS Guard Ja Intel® klar video teknologi Ingen Intel® Clear Video Teknologi til MID (Intel® CVT for MID) Ingen Intel® 64 Ja Intel® Identity Protection Technology version 0,00 Intel® Secure Key Technology version 1,00 Intel® Virtualization Technology (VT-x) Ja Intel® TSX-NI-version 0,00 Intel® Dual Display Capable Teknologi Ingen Intel® FDI Teknologi Ingen Intel® Fast Memory Access Ingen Processor ARK ID 83352 Strømstyring Redundant strømforsyning Ja Strømforsyning 550 W Antal af hovedstrømforsyninger 1 Vægt & størrelser Bredde 429 mm Dybde 734 mm Højde 43 mm Andre funktioner Understøtter S.M.A.R.T. Ja
