- Optimize your workloads with choice of flexible storage-based configurations, designed for infrastructure basics to business-critical applications
- Reduce unplanned downtime and minimize costs with industry-leading reliability features and tools
- Safeguard enterprise data with built-in System x Trusted Platform Assurance, an exclusive set of security features and practices, plus optional self-encrypting drives and IBM Security Key Lifecycle Manager
- Gain superior performance with Intel® Xeon® E5-2600 v3 processors (up to 36 cores per server), end-to-end 12 Gbps RAID support—devices and infrastructure
- Run up to 131 percent greater java workload performance, up to 61 percent greater virtualization performance, and up to 59 percent greater database performance per system than the previous generation
- Reduce data center costs with smart energy-efficient features, including unique 40° C operating temperature, Titanium power supplies (up to 96 percent efficiency), active/standby power supply modes, dual fan zone design, and TruDDR4 Memory (with up to 45 percent lower energy use over DDR3)
- Run more virtual machines and workloads with up to 50 percent more cores and cache and 2x more memory capacity than previous generation
- Simplify server management and administration with Lenovo XClarity

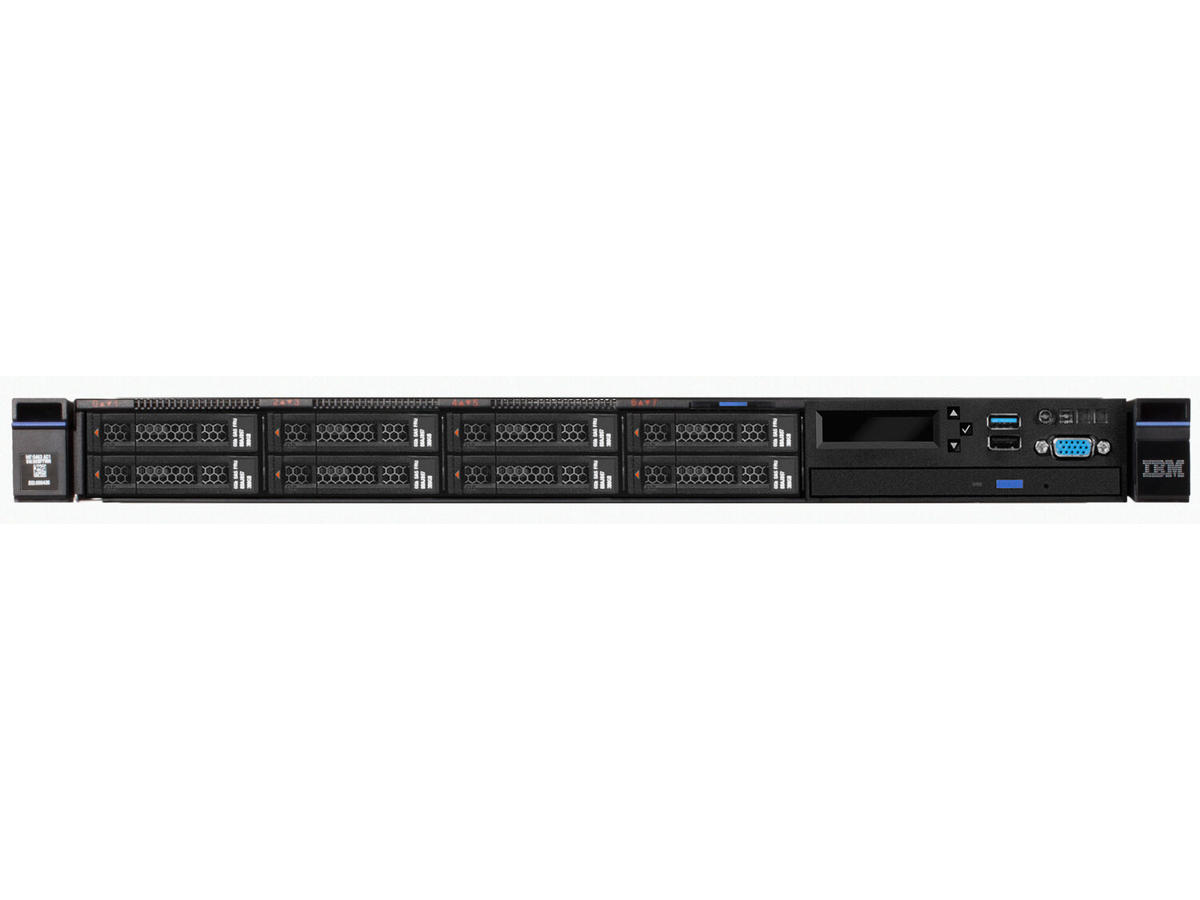

The versatile 1U dual-socket Lenovo System x3550 M5 rack server fuels almost any workload from infrastructure to big data with leading security, efficiency, and reliability. Integrated with up to two Intel® Xeon® processors E5-2600 v3 series, faster, energy-efficient TruDDR4 memory, and up to 12 drives of storage, the x3550 M5 delivers exceptional performance.
Workload-Tuned Performance.
The x3550 M5 incorporates energy smart features for minimized costs and efficient performance. Dual fan zones support operation in up to 40° C environments. The 80 PLUS® Titanium power supply units deliver 96-percent efficiency at 50-percent load. With twice the memory and 50 percent more cores and cache per system than the previous generation, the x3550 M5 lets your workloads fly.
| Processor | |
| Processorserie | Intel® Xeon E5 v3, Intel Xeon E5-2600 v3 |
| Processorproducent | Intel |
| Processormodel | E5-2670V3 |
| Processorfrekvens | 2,3 GHz |
| Processor boost frekvens | 3,1 GHz |
| Processorkerner | 12 |
| Processor-cache | 30 MB |
| Hukommelseskanaler understøttet af processor | Quad |
| Antal installerede processorer | 1 |
| Thermal Design Power (TDP) | 120 W |
| Processor cache type | Smart cache |
| Systembus-hastighed | 9,6 GT/s |
| Maksimalt antal SMP-processorer | 2 |
| Kompatibel processor serie | Intel® Xeon® |
| Processor sokkel | LGA 2011-v3 |
| Processor litografi | 22 nm |
| Processortråde | 24 |
| Processor driftstilstande | 64-bit |
| Stepping | M1 |
| FSB Paritet | Ingen |
| Bus type | QPI |
| Antal QPI-lins | 2 |
| Processor kodenavn | Haswell |
| Tcase | 84,5 °C |
| Maksimal intern hukommelse understøttet af processor | 768 GB |
| Hukommelsestyper understøttet af processor | DDR4-SDRAM |
| Hukommelsesurhastigheder understøttet af processor | 1600,1866,2133 MHz |
| Hukommelsesbåndbredde understøttet af processor (maks.) | 68 GB/sek. |
| Fejlkorrigerende kode understøttet af processor | Ja |
| Udfør deaktivering af bit | Ja |
| Idle status | Ja |
| Termiske overvågningsteknologier | Ja |
| Maksimalt antal PCI Express-kanaler | 40 |
| PCI Express-konfigurationer | x4, x8, x16 |
| Processor-pakke størrelse | 52.5 x 45 mm |
| Understøttede instruktionssæt | AVX 2.0 |
| Skalerbarhed | 2S |
| Fysisk adresse udvidelse (PAE) | 46 Bit |
| Indlejret tilgængelige muligheder | Ingen |
| Konfliktfri processor | Ingen |
| Understøttelse af Intelligent Platform Management Interface (IPMI) | Ja |
| Hukommelse | |
| Intern hukommelse | 16 GB |
| Intern hukommelsestype | DDR4-SDRAM |
| Maksimal intern hukommelse | 1,5 TB |
| Fejlkorrigerende kode | Ja |
| Hukommelsesur hastighed | 2133 MHz |
| Lagring | |
| Maksimal lagerkapacitet | 46 TB |
| Samlet lagringskapacitet | 0 GB |
| Understøtter RAID | Ja |
| Optisk drevtype | Ingen |
| Antal installerede HDD'er | 0 |
| HDD-grænseflade | Serial ATA III, Serial Attached SCSI (SAS) |
| HDD-størrelse | 2.5" |
| Understøttede HDD-størrelser | 2.5,3.5" |
| RAID-niveauer | 0, 1, 10 |
| Hot-swap | Ja |
| Grafik | |
| On-board grafikkort | Ja |
| Maksimal grafikadapterhukommelse | 16 MB |
| Netværk | |
| LAN Kontroller | Broadcom BCM5719 |
| Ethernet LAN | Ja |
| Kabelteknologi | 10/100/1000Base-T(X) |
| Ethernet-grænsefladetype | Gigabit Ethernet |
| Porte & Grænseflader | |
| Ethernet LAN-porte (RJ-45) | 4 |
| Antal USB 2.0-porte | 4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
| Antal VGA-porte (D-sub) | 1 |
| Antal serielle porte | 1 |
| Udvidelsessokler | |
| PCI Ekspres x8 slots | 1 |
| PCI Express x16 slots | 3 |
| PCI Express slots version | 3.0 |
| Design | |
| Kabinettype | Stativ (1U) |
| Stativ-montering | Ja |
| Understøttelse af redundante blæsere | Ja |
| Rack skinner | Ja |
| Præstation | |
| BIOS-type | UEFI |
| Trusted Platform Module (TPM) | Ja |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operativsystem installeret | Ingen |
| Kompatible operativsystemer | Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSpher |
| Processor særlige funktioner | |
| CPU-konfiguration (maks.) | 2 |
| Intel® Rapid Storage Teknologi | Ingen |
| Enhanced Intel SpeedStep Teknologi | Ja |
| Intel® Identity Protection Teknologi (Intel® IPT) | Ingen |
| Intel® Wireless Display (Intel® WiDi) | Ingen |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel® Anti-Theft Teknologi (Intel® AT) | Ingen |
| Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ja |
| Intel® My WiFi Teknologi (Intel® MWT) | Ingen |
| Intel® Turbo Boost Teknologi | 2.0 |
| Intel® Quick Sync Video Teknologi | Ingen |
| Intel® InTru™ 3D Teknologi | Ingen |
| Intel® Clear Video HD Teknologi (Intel® CVT HD) | Ingen |
| Intel® Insider™ | Ingen |
| Intel® Flex Memory Access | Ingen |
| Intel® Smart Cache | Ja |
| Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
| Intel® Trusted Execution Teknologi | Ja |
| Intel® Enhanced Halt State | Ja |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Intel® Demand Based Switching | Ja |
| Intel® Sikker Nøgle | Ja |
| Intel® TSX-NI | Ingen |
| Intel® OS Guard | Ja |
| Intel® klar video teknologi | Ingen |
| Intel® Clear Video Teknologi til MID (Intel® CVT for MID) | Ingen |
| Intel® 64 | Ja |
| Intel® Identity Protection Technology version | 0,00 |
| Intel® Secure Key Technology version | 1,00 |
| Intel® Virtualization Technology (VT-x) | Ja |
| Intel® TSX-NI-version | 0,00 |
| Intel® Dual Display Capable Teknologi | Ingen |
| Intel® FDI Teknologi | Ingen |
| Intel® Fast Memory Access | Ingen |
| Processor ARK ID | 81709 |
| Strømstyring | |
| Redundant strømforsyning | Ja |
| Strømforsyning | 750 W |
| Antal understøttede overflødige strømforsyninger | 2 |
| Antal installerede strømforsyninger | 1 |
| Antal af hovedstrømforsyninger | 2 |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 5 - 40 °C |
| Opbevaringstemperatur (T-T) | 5 - 45 °C |
| Relativ luftfugtighed ved drift (H-H) | 8 - 85% |
| Relativ luftfugtighed ved opbevaring (H-H) | 8 - 85% |
| Driftshøjde | 0 - 3050 m |
| Vægt & størrelser | |
| Bredde | 429 mm |
| Dybde | 734 mm |
| Højde | 43 mm |
| Vægt | 13,8 kg |
| Andre funktioner | |
| Grafikadapter | G200eR2 |
| Grafikadapter familie | Matrox |
| Intel® Virtualization Teknologi (Intel® VT) | VT-d, VT-x |
