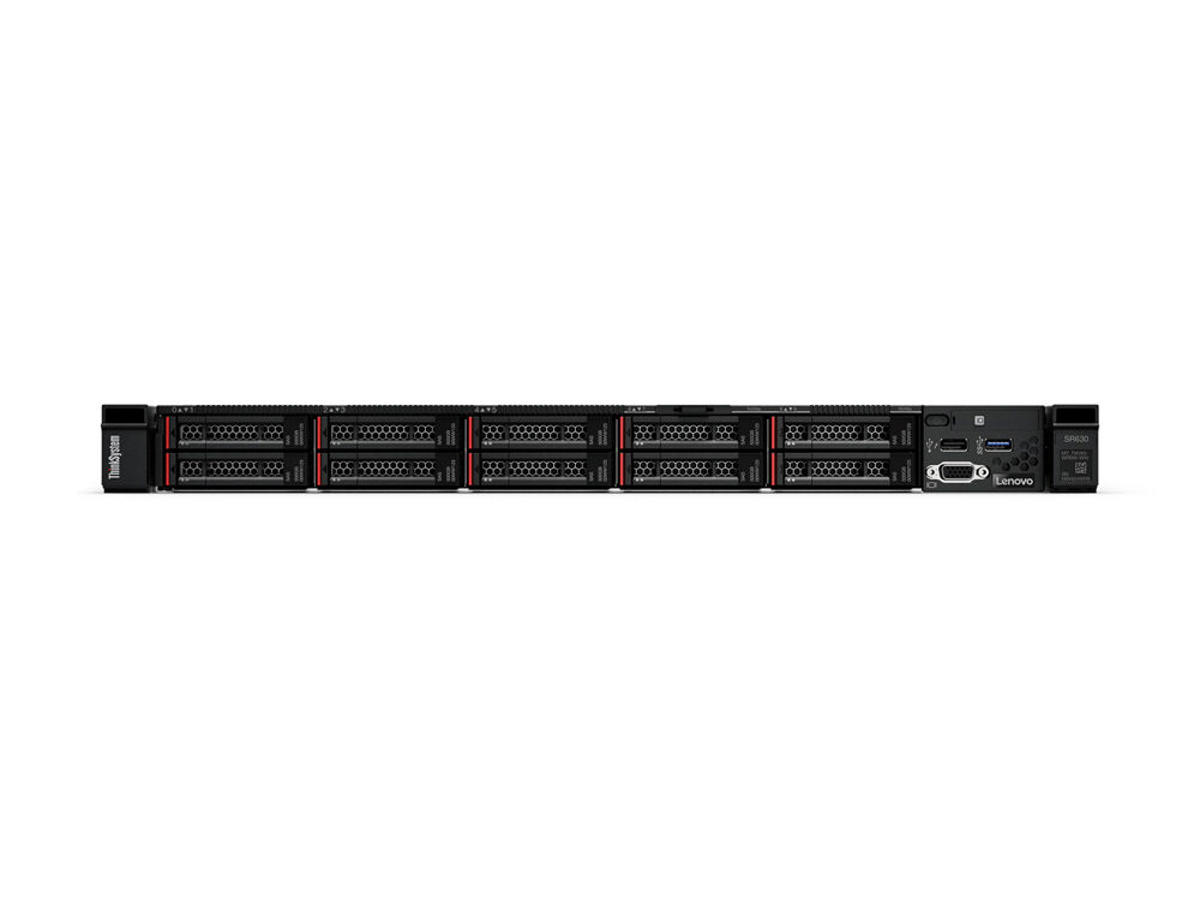

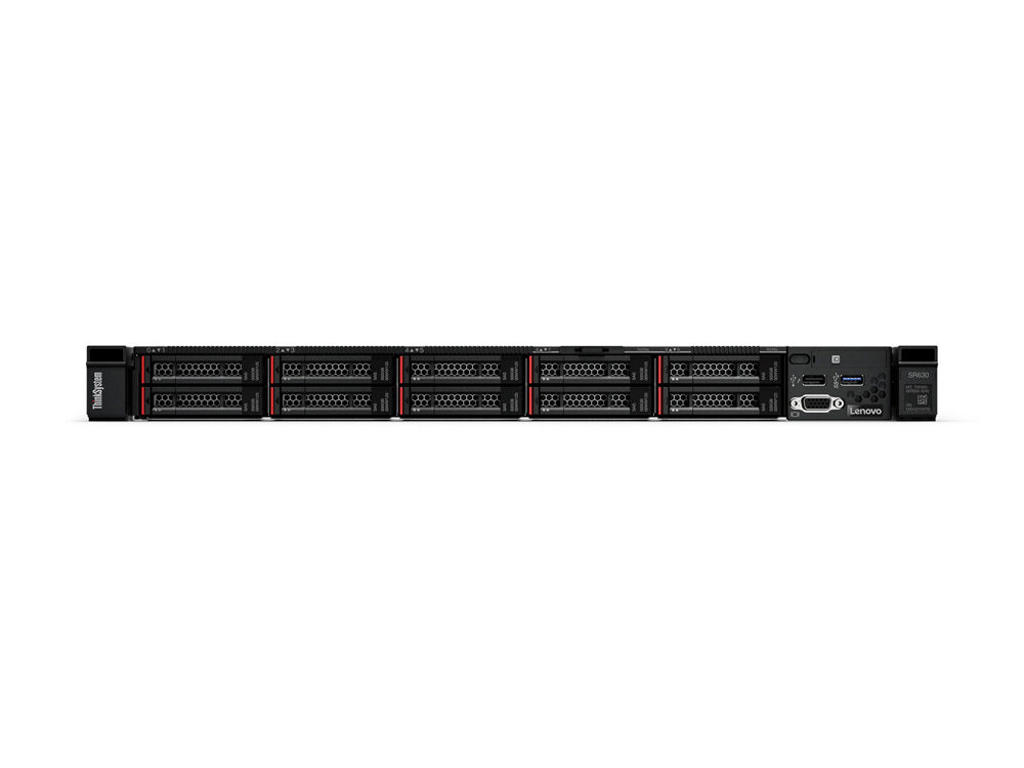

Lenovo ThinkSystem SR630 server Stativ (1U) Intel® Xeon® 2,1 GHz 16 GB DDR4-SDRAM 750 W
Varenummer: 7X02A042EA
DKK 56.575,00 / Stk
DKK 45.260,00 ekskl. moms
Lenovo ThinkSystem SR630. Processorserie: Intel® Xeon®, Processorfrekvens: 2,1 GHz, Processormodel: 4110. Intern hukommelse: 16 GB, Intern hukommelsestype: DDR4-SDRAM, Hukommelseslayout (slots x størrelse): 1 x 16 GB. HDD-størrelse: 2.5", HDD-grænseflade: SATA, Serial Attached SCSI (SAS). Ethernet LAN, Kabelteknologi: 10/100/1000Base-T(X). Strømforsyning: 750 W, Redundant strømforsyning. Kabinettype: Stativ (1U)

Mere information

Bedst sælgende i Servere
  • Highly versatile Featuring the largest storage capacity and highest performance in Lenovo’s 1U server portfolio, Lenovo ThinkSystem SR630 excels at many workloads. With a wide selection of processors, drives, and interconnects, it helps you: 1) transform resources into services, using validated designs for hybrid cloud; 2) perform analytics on streaming data, using validated designs for Big Data; 3) improve performance of virtualized transactional systems, using validated designs for OLTP databases; or 4) simplify storage scale-out, using configuration guides for hyperconverged infrastructure (HCI) or software-defined storage (SDS). Highly flexible ThinkSystem SR630 includes two powerful Intel® Xeon® processor Scalable family CPUs with 27 percent more cores, twice the memory capacity and 50 percent more bandwidth than the prior generation*. It has up to four§ PCIe 3.0 slots for I/O flexibility. Unique Lenovo AnyBay technology provides optimized storage flexibility and performance, with up to 12 SFF or 4 LFF SAS/SATA HDDs/SSDs. Four direct-connect NVMe ports on the motherboard provide ultra-fast read/writes with NVMe drives and reduce costs by eliminating PCIe switch adapters. Plus, storage can be tiered for greater application performance, to provide the most cost-effective solution. Optional mirrored M.2 boot drives ensure reliability and quick OS initialization. SR630 also supports modular LOM, ML2, and PCIe network adapters. To reduce energy costs, it features 80 PLUS Platinum and Titanium PSUs, and continuous operation at 45°C. Easily managed Lenovo XClarity Controller is an all-new hardware embedded management engine common in every ThinkSystem server. XClarity Controller features an uncluttered graphical user interface, industry standard Redfish-compliant REST APIs, and enables booting in half the time of prior generation servers, with up to 6x faster firmware updates. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking. Via reusable patterns and policies, it ramps up and scales infrastructure provisioning and maintenance. It serves as a central integration point to extend your data center management processes to physical IT. Running XClarity Integrators in external IT applications, or integrating through REST APIs, helps you further speed services provisioning, streamline IT management, and contain costs. Lenovo servers continue to be the industry’s #1 most reliableǂ, with the industry’s highest customer satisfaction** rating.

  • Processor
    Processorserie Intel® Xeon®
    Processorproducent Intel
    Processormodel 4110
    Processorfrekvens 2,1 GHz
    Processorgeneration Intel Xeon skalerbar 1. generation
    Processor boost frekvens 3 GHz
    Processorkerner 8
    Processor-cache 11 MB
    Bundkort chipsæt Intel® C624
    Hukommelseskanaler understøttet af processor Hepta
    Antal installerede processorer 1
    Thermal Design Power (TDP) 85 W
    Processor cache type L3
    Maksimalt antal SMP-processorer 2
    Kompatibel processor serie Intel® Xeon®
    Processor sokkel LGA 3647 (Socket P)
    Processor litografi 14 nm
    Processortråde 16
    Processor driftstilstande 64-bit
    Processor kodenavn Skylake
    Tcase 77 °C
    Maksimal intern hukommelse understøttet af processor 768 GB
    Hukommelsestyper understøttet af processor LPDDR4-SDRAM
    Hukommelsesurhastigheder understøttet af processor 2400 Mhz
    Fejlkorrigerende kode understøttet af processor Ja
    Udfør deaktivering af bit Ja
    Maksimalt antal PCI Express-kanaler 48
    Processor-pakke størrelse 76.0 x 56.5 mm
    Understøttede instruktionssæt AVX, AVX 2.0, AVX-512, SSE4.2
    Skalerbarhed 2S
    Indlejret tilgængelige muligheder Ja
    Konfliktfri processor Ja
    Intern hukommelse 16 GB
    Intern hukommelsestype DDR4-SDRAM
    Maksimal intern hukommelse 3072 GB
    Hukommelsesstik 24x DIMM
    Fejlkorrigerende kode Ja
    Hukommelsesur hastighed 2666 Mhz
    Hukommelseslayout (slots x størrelse) 1 x 16 GB
    Maksimal lagerkapacitet 61,4 TB
    Understøtter RAID Ja
    Optisk drevtype Ingen
    HDD-grænseflade SATA, Serial Attached SCSI (SAS)
    HDD-størrelse 2.5"
    Antal understøttede HHD'er 8
    Understøttede HDD-størrelser 2.5"
    RAID-niveauer 0, 1, 5, 6, 10, 50, 60, JBOD
    Understøttede RAID-kontroller 930-8i
    Hot-swap Ja
    Understøttede lagerdrev brugerflader SAS, Serial ATA III
    On-board grafikkort Ja
    On-board grafikkort, model Matrox G200
    Ethernet LAN Ja
    Kabelteknologi 10/100/1000Base-T(X)
    Porte & Grænseflader
    Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3
    Antal VGA-porte (D-sub) 2
    PCI Ekspres x8 (Gen 3.x) slots 2
    PCI Ekspres x16 (Gen 3.x) slots 1
    PCI Express slots version 3.0
    Kabinettype Stativ (1U)
    Stativ-montering Ja
    Målstyring XClarity Enterprise
    Trusted Platform Module (TPM) Ja
    Trusted Platform Module (TPM) version 1.2
    Kompatible operativsystemer Microsoft Windows Server 2016/2012 R2 Red Hat Enterprise Linux 7.3/6.9 SUSE Linux Enterprise Server 12 SP2/11 SP4 VMware vSphere (ESXi) 6.5/6.0 U3
    Processor særlige funktioner
    Enhanced Intel SpeedStep Teknologi Ja
    Intel® Virtualization Technology for Directed I/O (VT-d) Ja
    Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja
    Intel® Turbo Boost Teknologi 2.0
    Intel® AES Nye Instruktioner (Intel® AES-NI) Ja
    Intel® Trusted Execution Teknologi Ja
    Intel® VT-x with Extended Page Tables (EPT) Ja
    Intel® TSX-NI Ja
    Intel® 64 Ja
    Intel® Virtualization Technology (VT-x) Ja
    Intel® TSX-NI-version 1,00
    Processor ARK ID 123547
    Redundant strømforsyning Ja
    Strømforsyning 750 W
    Antal understøttede overflødige strømforsyninger 2
    Antal af hovedstrømforsyninger 1
    Strømforsyningens indgangsfrekvens 50 - 60 Hz
    Driftstemperatur (T-T) 5 - 45 °C
    Opbevaringstemperatur (T-T) -10 - 60 °C
    Relativ luftfugtighed ved drift (H-H) 8 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 8 - 90%
    Driftshøjde 0 - 3048 m
    Vægt & størrelser
    Bredde 482 mm
    Dybde 778,3 mm
    Højde 43 mm
    Vægt 19 kg
    Tekniske detaljer
    Antal 2.5" bays 8
    Bæredygtighedscertifikater ENERGY STAR
