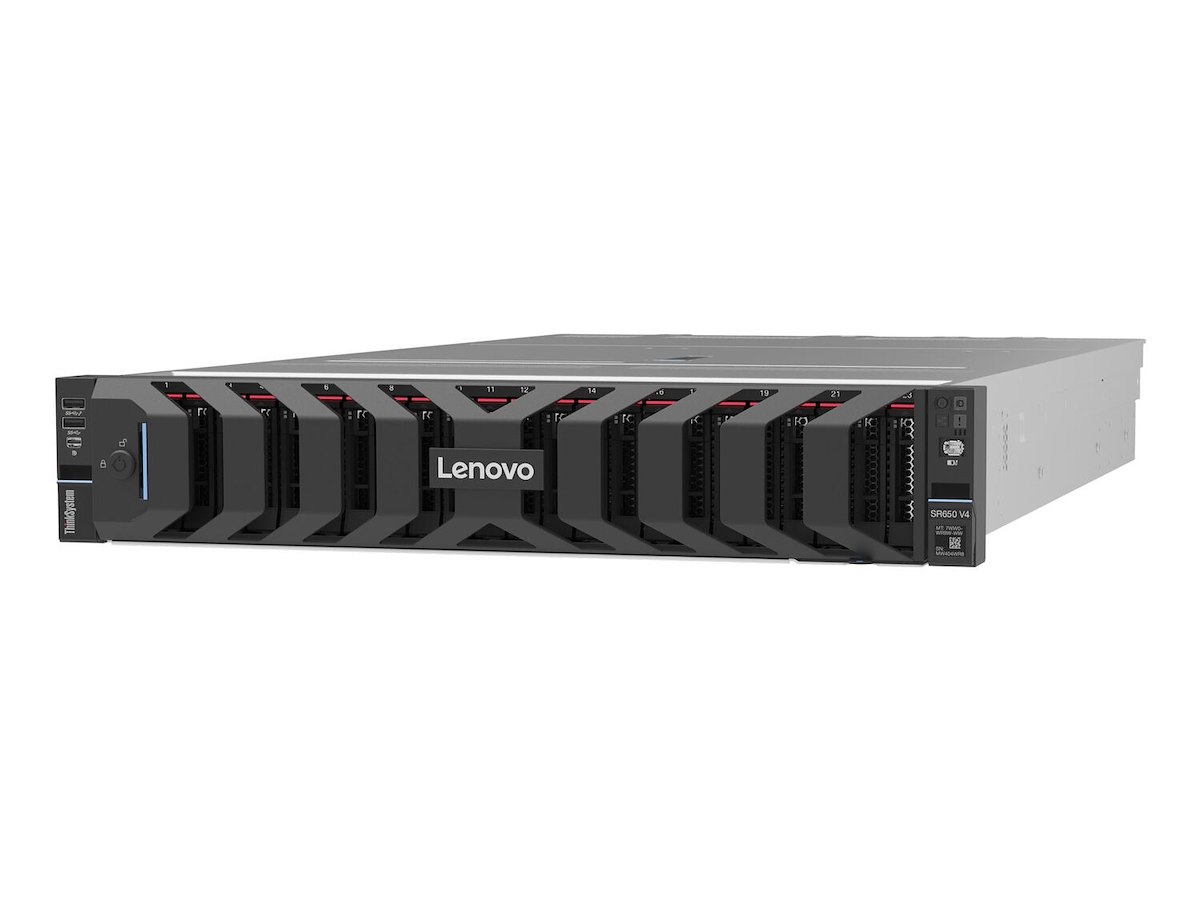

The Lenovo ThinkSystem SR650 V4 is an ideal 2-socket 2U rack server for customers that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. With two Intel Xeon 6700-series or 6500-series processors, the SR650 V4 is designed for high density and scale-out workloads in various customer segments.
This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V4 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V4 and consider its use in IT solutions.
| Processor | |
| Processorserie | Intel Xeon 6 |
| Processorproducent | Intel |
| Processorfrekvens | 3,2 GHz |
| Processor boost frekvens | 4,2 GHz |
| Processorkerner | 16 |
| Processor-cache | 72 MB |
| Antal installerede processorer | 1 |
| Processortråde | 32 |
| Hukommelse | |
| Intern hukommelse | 32 GB |
| Intern hukommelsestype | DDR5-SDRAM |
| Maksimal intern hukommelse | 8,19 TB |
| Hukommelsesstik | 32x DIMM |
| Fejlkorrigerende kode | Ja |
| Hukommelseslayout (slots x størrelse) | 1 x 32 GB |
| Lagring | |
| Understøtter RAID | Ja |
| Optisk drevtype | Ingen |
| Antal understøttede HHD'er | 8 |
| Understøttede HDD-størrelser | 2.5" |
| RAID-niveauer | 0, 1, 5, 6, 10, 50, 60 |
| Understøttede RAID-kontroller | 9350-8i |
| Hot-swap | Ja |
| Interne drevbåse | 8 |
| Grafik | |
| On-board grafikkort | Ja |
| Maksimal grafikadapterhukommelse | 16 MB |
| Netværk | |
| Ethernet LAN | Ja |
| Kabelteknologi | 10/100/1000Base-T(X) |
| Ethernet-grænsefladetype | Gigabit Ethernet |
| Porte & Grænseflader | |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 4 |
| Antal VGA-porte (D-sub) | 1 |
| Design | |
| Kabinettype | Stativ (2U) |
| Produktfarve | Sort, Stål |
| Kølingstype | Aktiv |
| Stativ-montering | Ja |
| Præstation | |
| Målstyring | XClarity Controller Platinum |
| Trusted Platform Module (TPM) | Ja |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Kompatible operativsystemer | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
| Strømstyring | |
| Redundant strømforsyning | Ja |
| Strømforsyning | 800 W |
| Antal understøttede overflødige strømforsyninger | 1 |
| Vægt & størrelser | |
| Bredde | 445 mm |
| Dybde | 796 mm |
| Højde | 43 mm |
| Tekniske detaljer | |
| Compliance-certifikater | CCC, CE, CECP, Federal Communications Commission (FCC), RoHS, UKCA, UL |
