Varenummer: 7X10A03VEA
Mere information
-
Enterprise enabled, ROBO ready

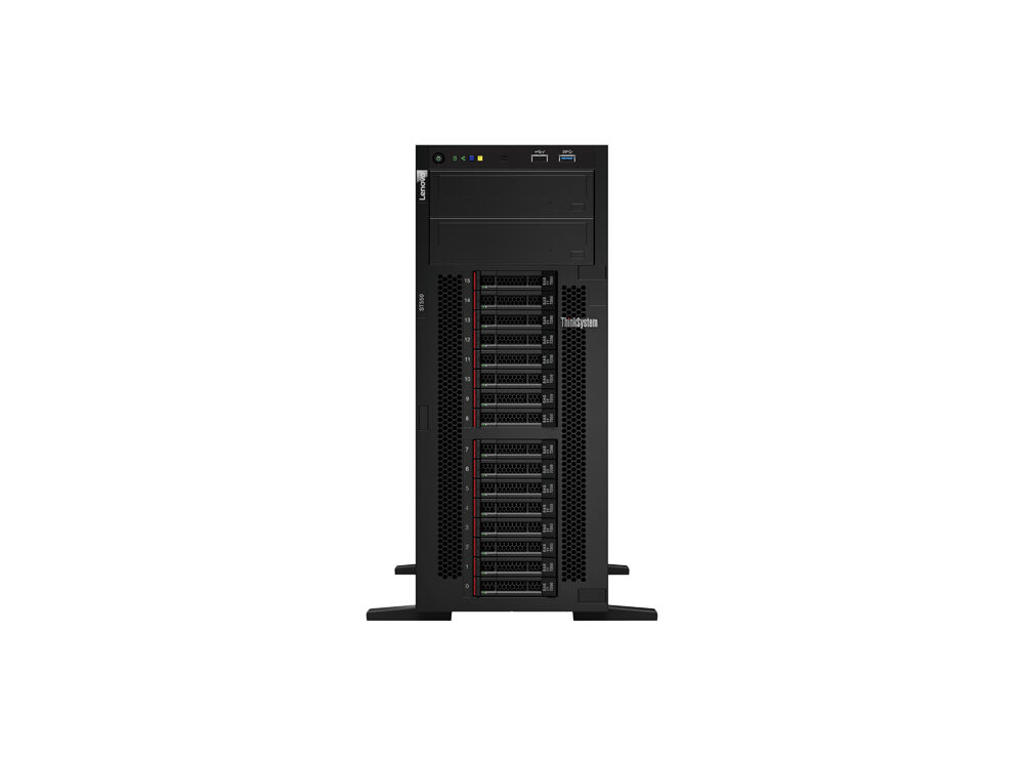

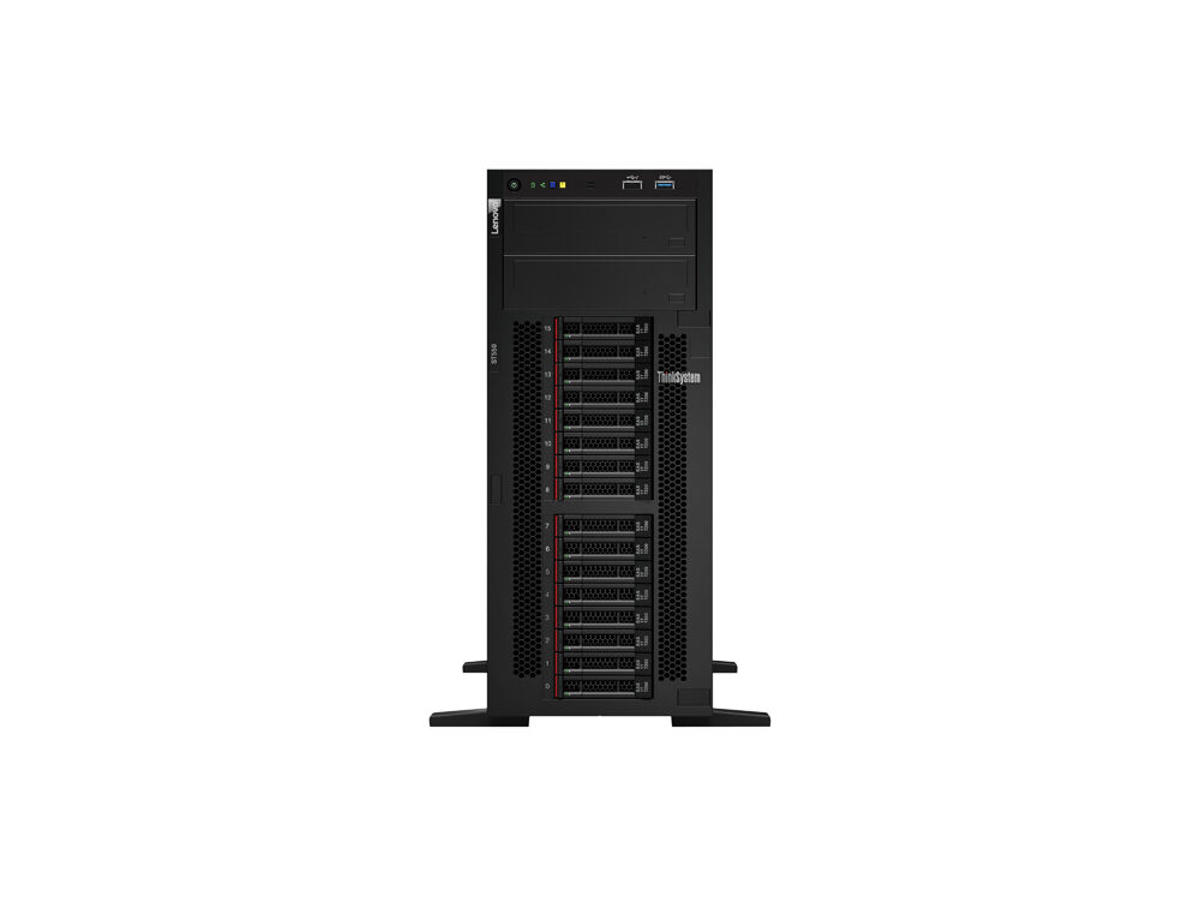

The Lenovo ThinkSystem ST550 is a scalable 4U tower server that features powerful Intel® Xeon® processor Scalable family CPUs. It provides the performance and reliability you expect from the data center, but optimized for office environments, with physical security and whisper-quiet operation. Its compact footprint uses 37 percent less space than its predecessor, making it ideal for under-desk, deskside, or rack-mount use. ST550 is ideal for email/file/print and web serving, IT infrastructure, virtualization, VDI, and private cloud.
Compact, secure, flexible
ST550 supports up to 96.4TB of internal storage capacity, and Lenovo AnyBay technology enables the mixing and matching of storage types (U.2/SAS/SATA) in the same bays. Up to 6x PCIe adapter slots and multiple hardware and software RAID options offer the flexibility you need for NICs, GPUs, and other adapters.
Physical and software security technologies, including lockable security bezel, Kensington lock slot, chassis intrusion switch, and TPM 1.2/2.0, are ideal for remote locations without the protection of a data center. ST550 also offers money-saving features, such as highly energy-efficient 80 PLUS Platinum and Titanium hot-swap PSUs, continuous operation up to 45°C, and easy centralized management via XClarity software.
High-performance, reliable, manageable
ST550 features more processor cores, memory, and I/O bandwidth than previous generations. It also provides more memory channels; 12Gb SAS interconnects; and support for HDD, SSD, NVMe, and M.2 drives; as well as high-performance GPUs—all at a lower price than previous generations.
Faster processors and memory, more cores, and support for NVMe and M.2 drives contribute to significantly better performance than the previous generation*. In addition, optional NVMe drives provide ultra-fast storage that can be tiered for greater application performance. Combining enterprise-class RAS features and shared components across the server portfolio increases reliability, promotes greater peace of mind, and reduces TCO. -
Processor Processorserie Intel® Xeon® Processorproducent Intel Processormodel 4110 Processorfrekvens 2,1 GHz Processorgeneration Intel Xeon skalerbar 1. generation Processor boost frekvens 3 GHz Processorkerner 8 Processor-cache 11 MB Hukommelseskanaler understøttet af processor Hepta Antal installerede processorer 1 Thermal Design Power (TDP) 85 W Processor cache type L3 Processor sokkel LGA 3647 (Socket P) Processor litografi 14 nm Processortråde 16 Processor driftstilstande 64-bit Processor kodenavn Skylake Tcase 77 °C Maksimal intern hukommelse understøttet af processor 768 GB Hukommelsestyper understøttet af processor LPDDR4-SDRAM Hukommelsesurhastigheder understøttet af processor 2400 MHz Fejlkorrigerende kode understøttet af processor Ja Udfør deaktivering af bit Ja Maksimalt antal PCI Express-kanaler 48 Processor-pakke størrelse 76.0 x 56.5 mm Understøttede instruktionssæt AVX, AVX 2.0, AVX-512, SSE4.2 Skalerbarhed 2S Indlejret tilgængelige muligheder Ja Konfliktfri processor Ja Hukommelse Intern hukommelse 16 GB Intern hukommelsestype DDR4-SDRAM Maksimal intern hukommelse 768 GB Hukommelsesstik 12 Hukommelsesur hastighed 2666 MHz Hukommelseslayout (slots x størrelse) 1 x 16 GB Lagring Maksimal lagerkapacitet 61,44 TB Samlet lagringskapacitet 600 GB Understøtter RAID Ja Optisk drevtype DVD±RW Antal installerede HDD'er 2 HDD kapacitet 300 GB HDD-grænseflade SATA, Serial Attached SCSI (SAS) HDD hastighed 10000 rpm HDD-størrelse 2.5" Understøttede HDD-størrelser 2.5,3.5" RAID-niveauer 0, 1, 5, 6, 10, 50, 60 Understøttede RAID-kontroller 930-8i Understøtter hot-plug Ja Hot-swap Ja Grafik On-board grafikkort Ja On-board grafikkort, model Matrox G200 Netværk Ethernet LAN Ja Kabelteknologi 10/100/1000Base-T(X) Porte & Grænseflader Antal USB 2.0-porte 3 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3 Antal VGA-porte (D-sub) 1 Udvidelsessokler PCI Ekspres x8 (Gen 3.x) slots 2 PCI Ekspres x16 (Gen 3.x) slots 2 PCI Express slots version 3.0 Design Kabinettype Tower Præstation Målstyring XClarity Standard Trusted Platform Module (TPM) Ja Trusted Platform Module (TPM) version 1.2 Software Kompatible operativsystemer Microsoft Windows Server 2016/2012 R2, Red Hat Enterprise Linux 7.3/6.9, SUSE, Linux Enterprise Server 12 SP2/11 SP4, VMware vSphere (ESXi) 6.5/6.0 U3 Processor særlige funktioner Enhanced Intel SpeedStep Teknologi Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Turbo Boost Teknologi 2.0 Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Intel® Trusted Execution Teknologi Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® TSX-NI Ja Intel® 64 Ja Intel® Virtualization Technology (VT-x) Ja Intel® TSX-NI-version 1,00 Processor ARK ID 123547 Strømstyring Redundant strømforsyning Ja Strømforsyning 550 W Antal af hovedstrømforsyninger 2 Strømforsyningens indgangsfrekvens 50 - 60 Hz Driftsbetingelser Driftstemperatur (T-T) 10 - 35 °C Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 20 - 80% Relativ luftfugtighed ved opbevaring (H-H) 8 - 90% Driftshøjde 0 - 3048 m Bæredygtighed Bæredygtighedscertifikater ENERGY STAR Vægt & størrelser Bredde 175,8 mm Dybde 666,4 mm Højde 425,5 mm Andre funktioner Flashhukommelse 2048 MB
