Varenummer: 7X06A07ZEA
Mere information
-

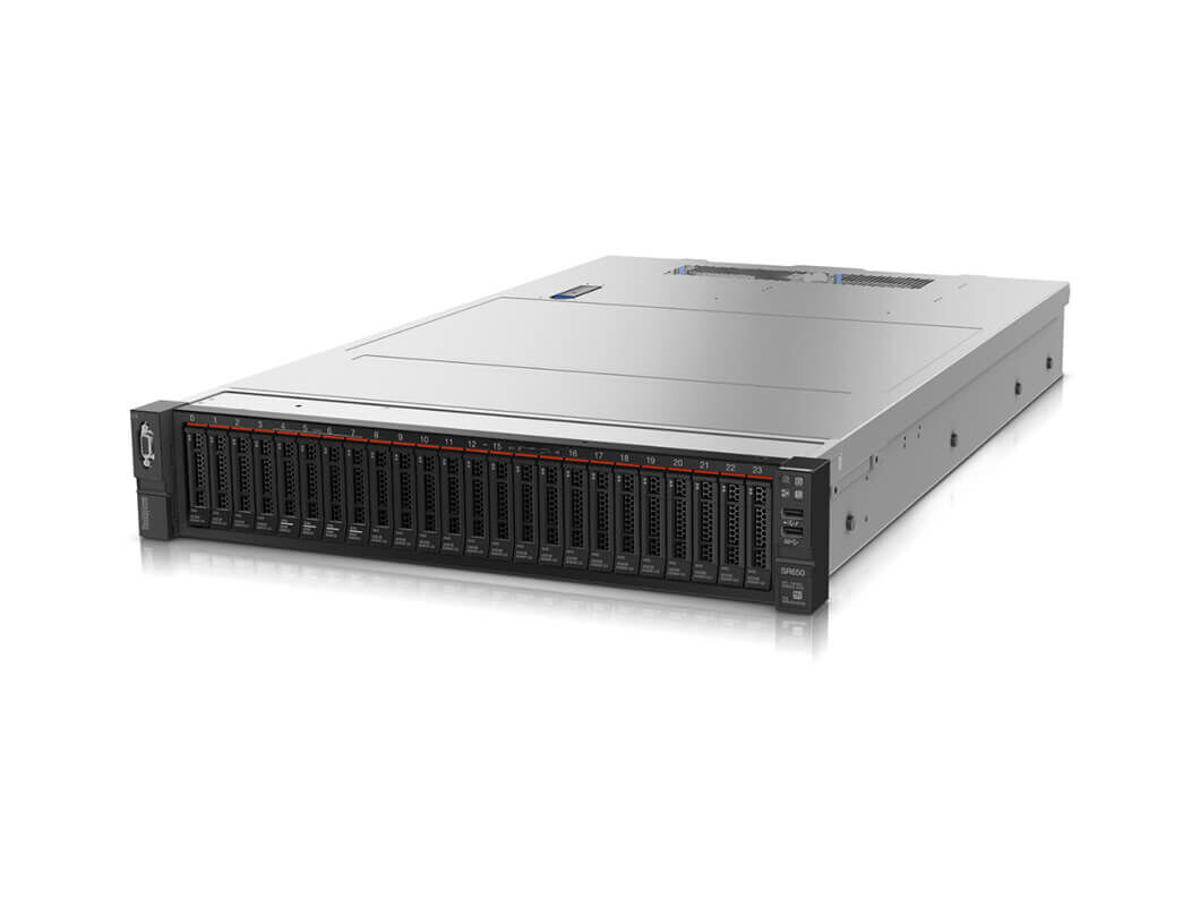

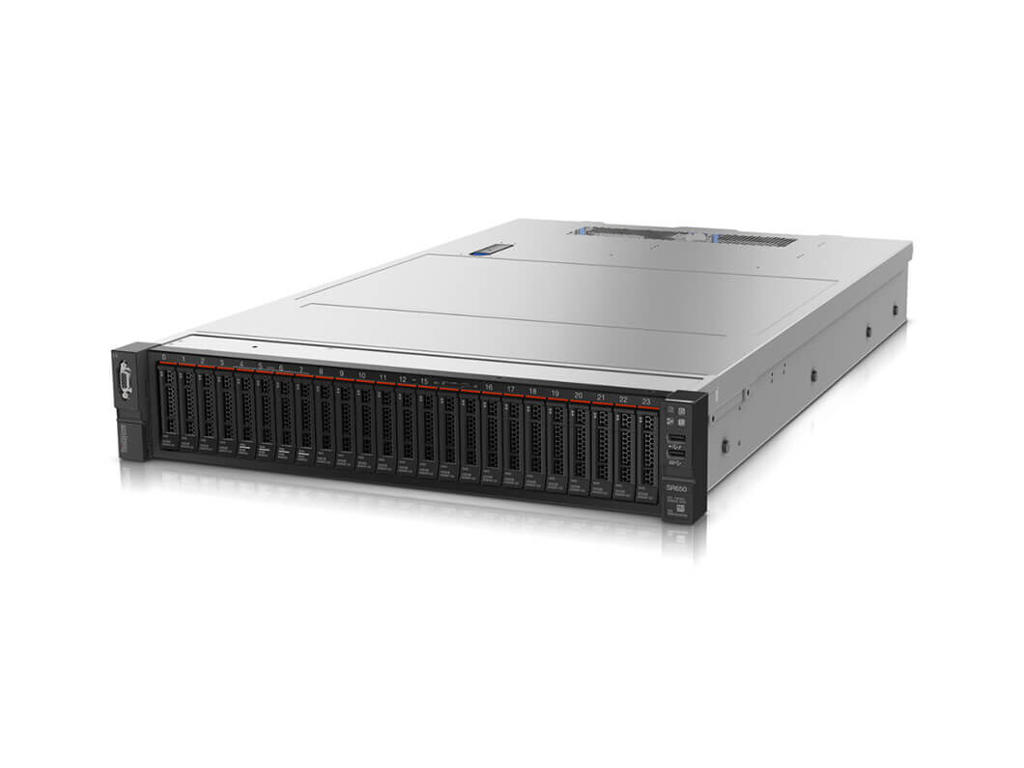

Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.
Featuring the Intel Xeon Processor Scalable Family, the SR650 server offers scalable performance, storage capacity, and I/O expansion. The SR650 server supports up to two processors, up to 3 TB of 2666 MHz TruDDR4 memory, up to 24x 2.5-inch or 14x 3.5-inch drive bays with an extensive choice of NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with the LOM slot, the dedicated storage controller slot, and up to 6x PCIe slots.
Combining performance and flexibility, the SR650 server is a great choice for small and medium businesses up to the large enterprise. It can provide outstanding uptime to keep business-critical applications and cloud deployments running safely. Ease of use and comprehensive systems management tools help make deployment easier. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design improve your business environment and help save operational costs.
The SR650 server offers basic or advanced hardware RAID protection and a wide range of networking options, including selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR650 server, provides advanced service processor control, monitoring, and alerting functions. -
Processor Processorserie Intel® Xeon® Gold Processorproducent Intel Processormodel 6136 Processorfrekvens 3 GHz Processor boost frekvens 3,7 GHz Processorkerner 12 Processor-cache 24,8 MB Bundkort chipsæt Intel® C624 Hukommelseskanaler understøttet af processor Hexa Antal installerede processorer 1 Thermal Design Power (TDP) 150 W Processor cache type L3 Processor sokkel LGA 3647 (Socket P) Processor litografi 14 nm Processortråde 24 Processor driftstilstande 64-bit Stepping H0 Bus type UPI Antal QPI-lins 3 Processor kodenavn Skylake Tcase 85 °C Maksimal intern hukommelse understøttet af processor 768 GB Hukommelsestyper understøttet af processor DDR4-SDRAM Hukommelsesurhastigheder understøttet af processor 2666 MHz Fejlkorrigerende kode understøttet af processor Ja Udfør deaktivering af bit Ja Maksimalt antal PCI Express-kanaler 48 Processor-pakke størrelse 76.0 x 56.5 mm Understøttede instruktionssæt AVX, AVX 2.0, AVX-512, SSE4.2 Processor kode SR3B2 Skalerbarhed S4S Indlejret tilgængelige muligheder Ingen Konfliktfri processor Ja Hukommelse Intern hukommelse 16 GB Intern hukommelsestype DDR4-SDRAM Hukommelsesstik 24 Fejlkorrigerende kode Ja Hukommelsesur hastighed 2666 MHz Hukommelseslayout (slots x størrelse) 1 x 16 GB Lagring Understøtter RAID Ja Optisk drevtype Ingen Understøttede HDD-størrelser 2.5" RAID-niveauer 0, 1, 5, 6, 10, 50, 60, JBOD Understøttede RAID-kontroller 1x 530-8i Hot-swap Ja Understøttede lagerdrev brugerflader SAS, Serial ATA III Indbygget kortlæser Ingen Grafik Diskret grafikadapter Ingen On-board grafikkort Ja On-board grafikkort, model Matrox G200 Netværk Wi-Fi Ingen Bluetooth Ingen Ethernet LAN Ja Kabelteknologi 10/100/1000Base-T(X) Porte & Grænseflader Antal USB 2.0-porte 1 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3 Antal VGA-porte (D-sub) 1 Antal serielle porte 1 Udvidelsessokler PCI Ekspres x8 slots 2 PCI Express slots version 3.0 Design Kabinettype Stativ (2U) Stativ-montering Ja Understøttelse af redundante blæsere Ja Rack skinner Ja Præstation Målstyring XClarity Enterprise Trusted Platform Module (TPM) Ja Software Kompatible operativsystemer Microsoft Windows Server 2016 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 7.4 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 6.9 Server x64 Edition SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 11 for AMD64/EM64TSP4 VMware vSphere 6.5 (ESXi) Update 1 VMware vSphere 6.5 (ESXi) VMware vSphere 6.0 (ESXi) Update 3 Processor særlige funktioner Enhanced Intel SpeedStep Teknologi Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Turbo Boost Teknologi 2.0 Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Intel® Trusted Execution Teknologi Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® TSX-NI Ja Intel® 64 Ja Intel® Virtualization Technology (VT-x) Ja Intel® TSX-NI-version 1,00 Processor ARK ID 120479 Strømstyring Redundant strømforsyning Ja Strømforsyning 750 W Antal understøttede overflødige strømforsyninger 2 Antal installerede strømforsyninger 1 Strømforsyningens indgangsfrekvens 50 - 60 Hz Driftsbetingelser Driftstemperatur (T-T) 5 - 45 °C Opbevaringstemperatur (T-T) -40 - 60 °C Relativ luftfugtighed ved drift (H-H) 8 - 90% Relativ luftfugtighed ved opbevaring (H-H) 8 - 90% Driftshøjde 0 - 3050 m Bæredygtighed Bæredygtighedscertifikater ENERGY STAR Vægt & størrelser Bredde 445 mm Dybde 720 mm Højde 87 mm Andre funktioner Indbygget skærm Ingen
