Varenummer: 7X06A0JJEA
Mere information
-
Future defined data center

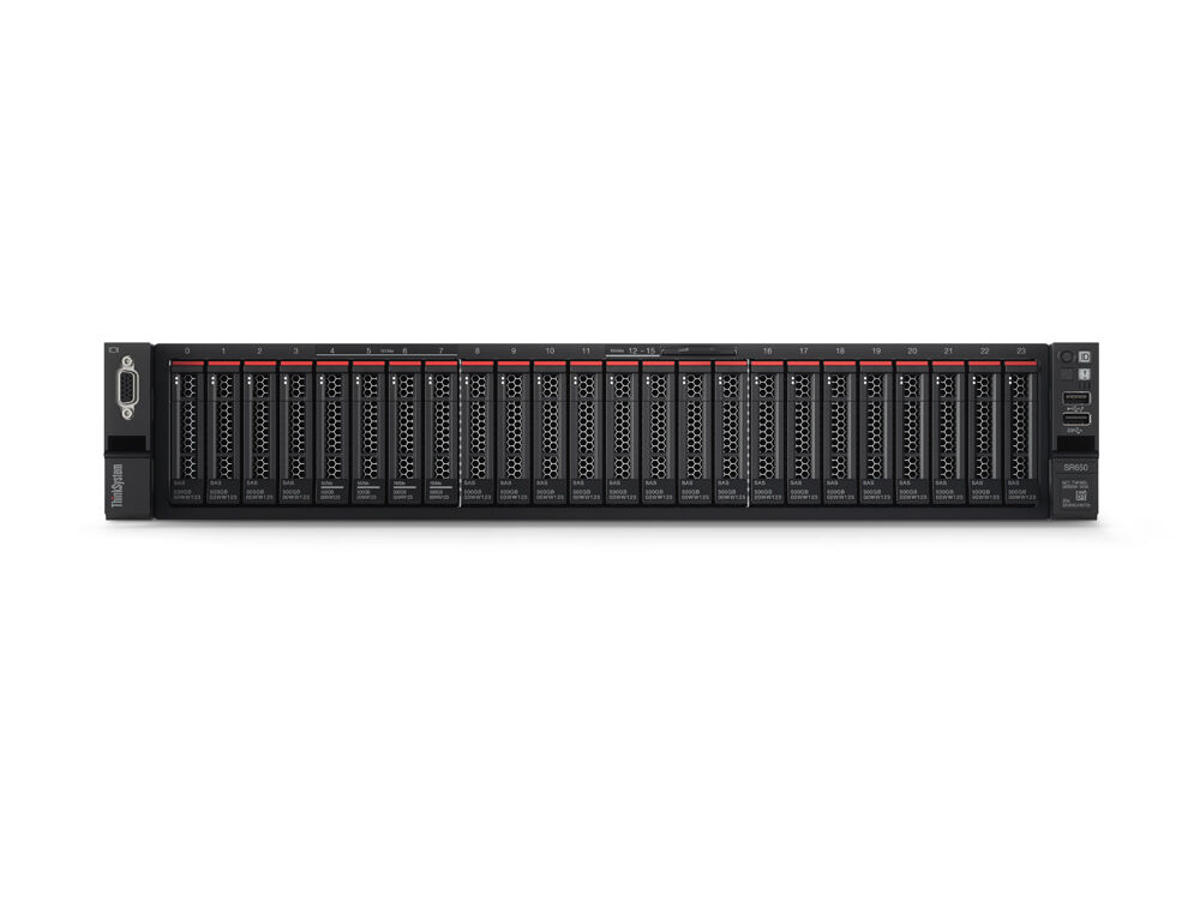

Lenovo delivers cost-effective, reliable, and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR650 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offer an unprecedented combination of high capacity, affordability, and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment. -
Processor Processorserie Intel® Xeon® Gold Processorproducent Intel Processormodel 6226R Processorfrekvens 2,9 GHz Processorgeneration Intel Xeon skalerbar 2. generation Processor boost frekvens 3,9 GHz Processor-cache 22 MB Bundkort chipsæt Intel® C624 Antal installerede processorer 1 Maksimalt antal SMP-processorer 2 Udfør deaktivering af bit Ja Indlejret tilgængelige muligheder Ja Hukommelse Intern hukommelsestype DDR4-SDRAM Lagring Maksimal lagerkapacitet 400 TB Samlet lagringskapacitet 0 GB Understøtter RAID Ingen Optisk drevtype Ingen HDD-grænseflade SATA, Serial Attached SCSI (SAS) SSD-grænsefladetype NVMe, PCI Express NVMe Ja Grafik On-board grafikkort Ja On-board grafikkort, model Ikke tilgængelig Maksimal grafikadapterhukommelse 16 MB Netværk Ethernet LAN Ja Ethernet-grænsefladetype 10 Gigabit Ethernet Porte & Grænseflader Ethernet LAN-porte (RJ-45) 4 Antal USB 2.0-porte 1 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3 Antal VGA-porte (D-sub) 1 Udvidelsessokler PCI Ekspres x8 slots 2 Design Kabinettype Stativ (2U) Produktfarve Sort, Rustfrit stål Stativ-montering Ja Understøttelse af redundante blæsere Ja Præstation Målstyring XClarity Enterprise Trusted Platform Module (TPM) Ja Trusted Platform Module (TPM) version 2.0 Software Operativsystem installeret Ingen Kompatible operativsystemer Microsoft Windows Server 2016/2012 R2 Red Hat Enterprise Linux 7.3/6.9 SUSE Linux Enterprise Server 12 SP2/11 SP4 VMware vSphere (ESXi) 6.5/6.0 U3 Processor særlige funktioner Enhanced Intel SpeedStep Teknologi Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Trusted Execution Teknologi Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® 64 Ja Intel® Virtualization Technology (VT-x) Ja Strømstyring Redundant strømforsyning Ja Strømforsyning 750 W Antal understøttede overflødige strømforsyninger 2 Antal installerede strømforsyninger 1 Strømforsyningens indgangsfrekvens 50/60 Hz Logistik data Harmoniseret systemkode (HS) 84714100 Bæredygtighed Bæredygtighedscertifikater ENERGY STAR Vægt & størrelser Bredde 445 mm Dybde 720 mm Højde 87 mm Vægt 19 kg
