Varenummer: 7X99A08LEA
Mere information
-

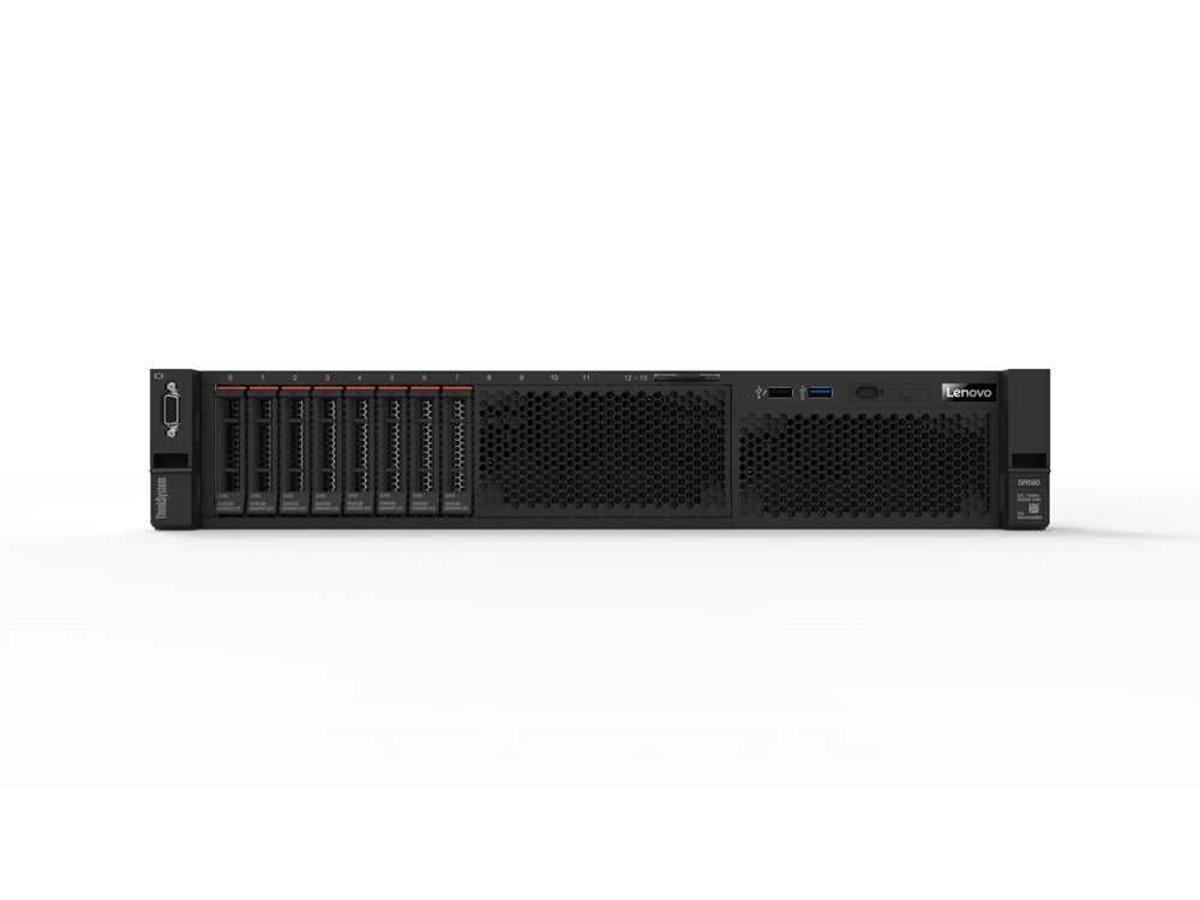

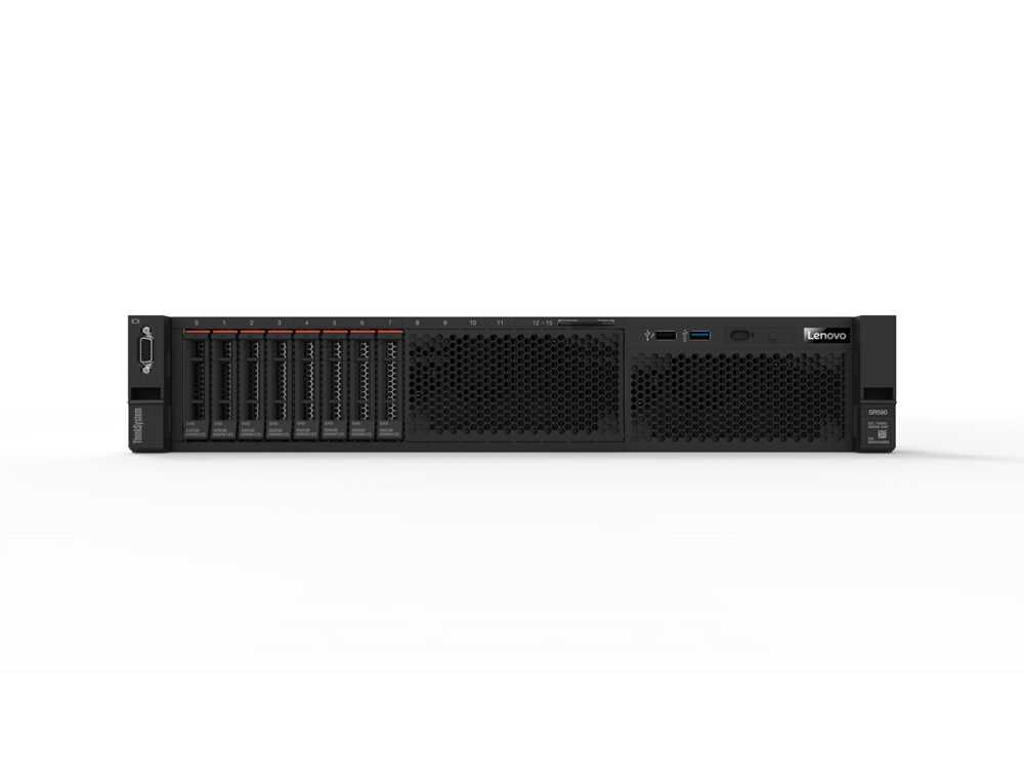

Lenovo ThinkSystem SR590 is a 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as balancing performance and expandability. The SR590 server is designed to handle a wide range of workloads, such as virtualization and cloud computing, IT infrastructure, enterprise applications, collaboration/email, and web serving.
Featuring the second generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 2), the SR590 server offers balanced performance, storage capacity, and I/O expansion. The SR590 server supports up to two processors, up to 2933 MHz memory speed, up to 1 TB of memory capacity with TruDDR4 RDIMMs or up to 2.75 TB of memory capacity with a combination of TruDDR4 RDIMMs and Intel DC persistent memory modules (DCPMMs), up to 16x 2.5-inch or 14x 3.5-inch drive bays with an extensive choice of NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with a LOM slot and up to 6x PCIe slots.
The SR590 server offers basic software RAID or advanced hardware RAID protection and a wide range of networking options, including selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR590 server, provides advanced service processor control, monitoring, and alerting functions. -
Processor Processorserie Intel® Xeon Silver Processorproducent Intel Processormodel 4210 Processorfrekvens 2,2 GHz Processorgeneration Intel Xeon skalerbar 2. generation Processor boost frekvens 3,2 GHz Processorkerner 10 Processor-cache 13,75 MB Antal installerede processorer 1 Thermal Design Power (TDP) 85 W Processor sokkel LGA 3647 (Socket P) Processor litografi 14 nm Processortråde 20 Processor driftstilstande 64-bit Processor kodenavn Cascade Lake Tcase 78 °C Maksimal intern hukommelse understøttet af processor 1,02 TB Hukommelsestyper understøttet af processor DDR4-SDRAM Hukommelsesurhastigheder understøttet af processor 2400 MHz Udfør deaktivering af bit Ja Maksimalt antal PCI Express-kanaler 48 Processor-pakke størrelse 76.0 x 56.5 mm Understøttede instruktionssæt AVX-512 Skalerbarhed 2S Indlejret tilgængelige muligheder Ja Hukommelse Intern hukommelse 16 GB Intern hukommelsestype DDR4-SDRAM Hukommelsesstik 16 Hukommelsesur hastighed 2933 MHz Hukommelseslayout (slots x størrelse) 1 x 16 GB Lagring Understøtter RAID Ja Optisk drevtype Ingen RAID-niveauer 0, 1, 5, 6, 10, 50, 60 Understøttede RAID-kontroller 730-8i 2GB Hot-swap Ja Interne drevbåse 8 Grafik On-board grafikkort Ja On-board grafikkort, model Ikke tilgængelig Netværk Wi-Fi Ingen Ethernet LAN Ja Ethernet-grænsefladetype Gigabit Ethernet Porte & Grænseflader Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3 Antal VGA-porte (D-sub) 1 Udvidelsessokler PCI Express slots version 3.0 Design Kabinettype Stativ (2U) Produktfarve Sort Stativ-montering Ja Præstation Målstyring XClarity Enterprise Trusted Platform Module (TPM) Ja Software Kompatible operativsystemer Microsoft Windows Server 2016/2012 R2. Red Hat Enterprise Linux 7.3/6.9. SUSE Linux Enterprise Server 12 SP2/11 SP4. VMware ESXi 6.5/6.0 U3 Processor særlige funktioner Enhanced Intel SpeedStep Teknologi Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Turbo Boost Teknologi 2.0 Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Intel® Trusted Execution Teknologi Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® TSX-NI Ja Intel® 64 Ja Intel® Virtualization Technology (VT-x) Ja Processor ARK ID 193384 Strømstyring Redundant strømforsyning Ja Strømforsyning 750 W Antal understøttede overflødige strømforsyninger 2 Antal installerede strømforsyninger 1 Logistik data Harmoniseret systemkode (HS) 84714100 Bæredygtighed Bæredygtighedscertifikater ENERGY STAR Vægt & størrelser Bredde 482 mm Dybde 763,7 mm Højde 86,5 mm
