Varenummer: 7X99A03PEA
Mere information
-
- A high degree of commonality of components among all servers in the portfolio reduces costs for parts-on-hand inventory and simplifies servicing.
- Support for ASHRAE A4 (with processor limitations for a fully configured server) reduces operating expenses for cooling.
- AnyBay storage bays enable the use of SFF SAS/SATA and NVMe drives in the same bays.
Powerful and balanced

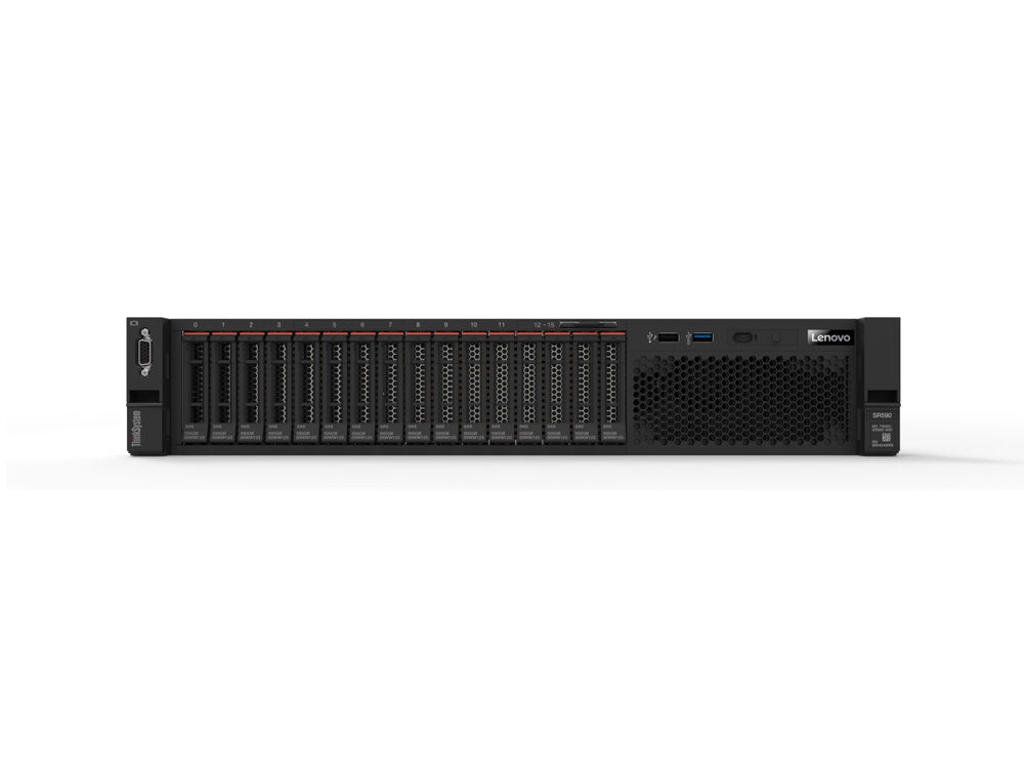

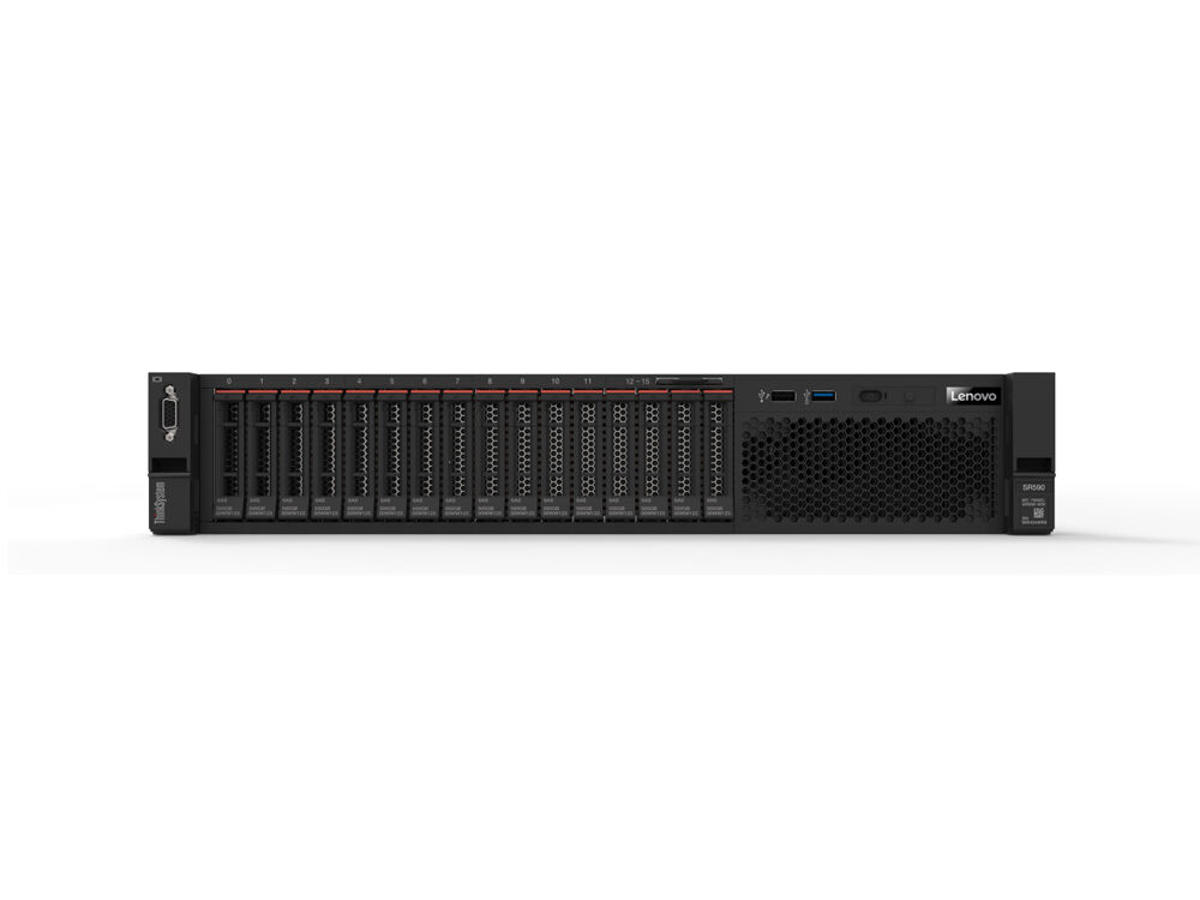

Designed for rack environments that require peak two-socket performance and sizeable memory capacity, the Lenovo ThinkSystem SR590 can tackle cloud and Big Data environments for medium and large enterprises. The SR590 is a balanced, midrange rack server that also works well for small-scale virtualization, collaboration and productivity applications, as well as caching and logging.
Two Intel® Xeon® Scalable Family processors increase agility and manage data-rich, high-demand workloads with up to a 1.5x memory bandwidth increase over the previous generation. Combined with up to 1TB of memory capacity, this enables applications to run faster and more efficiently and boosts business performance at a lower cost and higher overall value.
Flexible and expandable
The SR590 supports up to 16 hot-swap 2.5” or 14 hot-swap or simple-swap 3.5” drive bays. Up to four of the 2.5” or 3.5” bays can be AnyBay, capable of supporting not only SAS/ SATA drives, but also direct -connect NVMe drives (which bypass the SAS bus) for the ultimate in storage performance. In addition, the SR590 supports SAS and SATA HDDs and SSDs with up to 12Gb SAS throughput, as well as up to two M.2 drives for faster, more secure OS boot. The SR590 provides storage flexibility, NIC expansion in multiple form factors, including LOM, ML2, and PCIe, and replaceable I/O riser cards for varied adapter slot configurations.
Reliable and secure
Lenovo servers have been the most reliable in the industry for several years. They were ranked #1 yet again in the latest ITIC survey of x86 server reliability*. The SR590 is no exception, including many features that contribute to the reliability and security of the server and your all-important data.
These features result in an ideal server for proxy caching, cloud, CRM, security, virtualization, media streaming, Big Data, databases, database-driven Web serving, mail serving, and many other workloads.
Why Lenovo
Lenovo is the leading provider of x86 systems for the data center. The portfolio includes rack, tower, blade, dense and converged systems, and supports enterprise class performance, reliability and security. Lenovo also offers a full range of networking, storage, software and solutions, and comprehensive services supporting business needs throughout the IT lifecycle. -
Processor Processorserie Intel® Xeon® Processorproducent Intel Processormodel 4110 Processorfrekvens 2,1 GHz Processorgeneration Intel Xeon skalerbar 1. generation Processor boost frekvens 3 GHz Processorkerner 8 Processor-cache 11 MB Bundkort chipsæt Intel C622 Hukommelseskanaler understøttet af processor Hepta Antal installerede processorer 1 Thermal Design Power (TDP) 85 W Processor cache type L3 Processor sokkel LGA 3647 (Socket P) Processor litografi 14 nm Processortråde 16 Processor driftstilstande 64-bit Processor kodenavn Skylake Tcase 77 °C Maksimal intern hukommelse understøttet af processor 768 GB Hukommelsestyper understøttet af processor LPDDR4-SDRAM Hukommelsesurhastigheder understøttet af processor 2400 MHz Fejlkorrigerende kode understøttet af processor Ja Udfør deaktivering af bit Ja Maksimalt antal PCI Express-kanaler 48 Processor-pakke størrelse 76.0 x 56.5 mm Understøttede instruktionssæt AVX, AVX 2.0, AVX-512, SSE4.2 Skalerbarhed 2S Indlejret tilgængelige muligheder Ja Konfliktfri processor Ja Hukommelse Intern hukommelse 16 GB Intern hukommelsestype DDR4-SDRAM Fejlkorrigerende kode Ja Hukommelsesur hastighed 2666 MHz Hukommelseslayout (slots x størrelse) 1 x 16 GB Lagring Samlet lagringskapacitet 1,8 TB Understøtter RAID Ja Optisk drevtype Ingen Antal installerede HDD'er 3 HDD kapacitet 600 GB HDD-grænseflade Serial Attached SCSI (SAS) HDD hastighed 10000 rpm HDD-størrelse 2.5" Antal understøttede HHD'er 16 Understøttede HDD-størrelser 2.5" RAID-niveauer 0, 1, 5, 6, 10, 50, 60 Hot-swap Ja Drevenhed, overførselstid 12000 MB/s Interne drevbåse 8 Grafik On-board grafikkort Ja On-board grafikkort, model Matrox G200 Netværk Ethernet LAN Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 2 Antal USB 2.0-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3 Antal VGA-porte (D-sub) 1 Antal serielle porte 0 Udvidelsessokler PCI Express slots version 3.0 Design Kabinettype Stativ (2U) Produktfarve Sort Stativ-montering Ja Software Operativsystem installeret Ingen Kompatible operativsystemer Microsoft Windows Server 2016/2012 R2. Red Hat Enterprise Linux 7.3/6.9. SUSE Linux Enterprise Server 12 SP2/11 SP4. VMware ESXi 6.5/6.0 U3 Processor særlige funktioner Enhanced Intel SpeedStep Teknologi Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Turbo Boost Teknologi 2.0 Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Intel® Trusted Execution Teknologi Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® TSX-NI Ja Intel® 64 Ja Intel® Virtualization Technology (VT-x) Ja Intel® TSX-NI-version 1,00 Processor ARK ID 123547 Strømstyring Redundant strømforsyning Ja Strømforsyning 750 W Antal understøttede overflødige strømforsyninger 2 Antal installerede strømforsyninger 1 Antal af hovedstrømforsyninger 1 Bæredygtighed Bæredygtighedscertifikater ENERGY STAR Vægt & størrelser Bredde 482 mm Dybde 763,7 mm Højde 86,5 mm Vægt 28 kg
