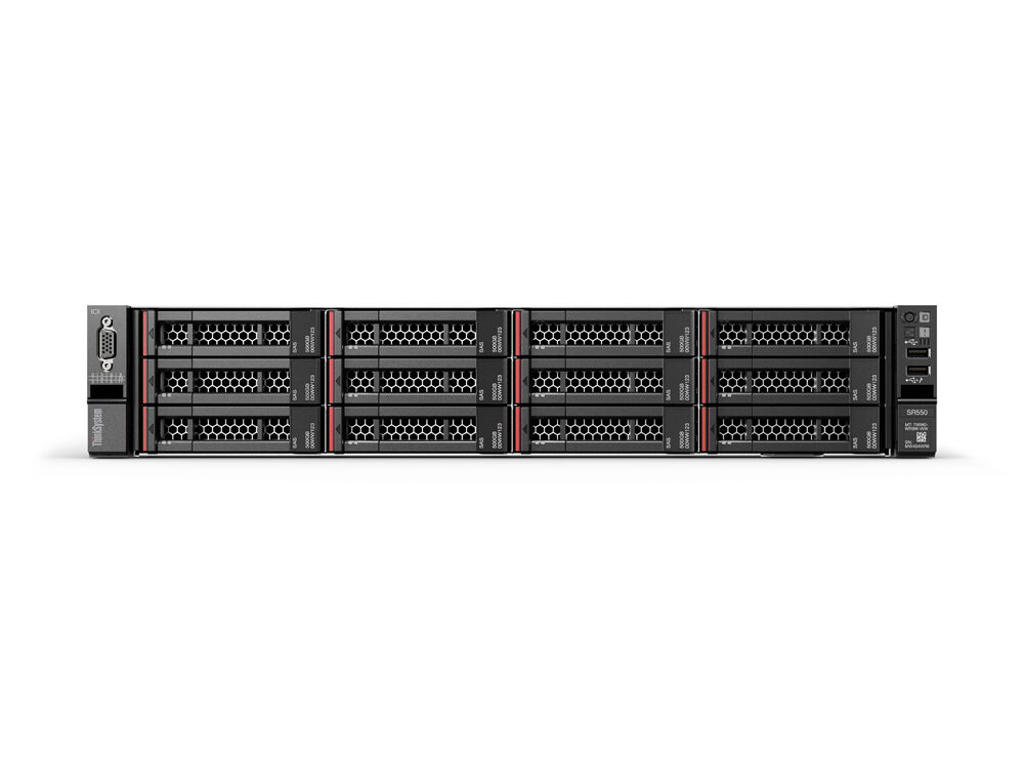

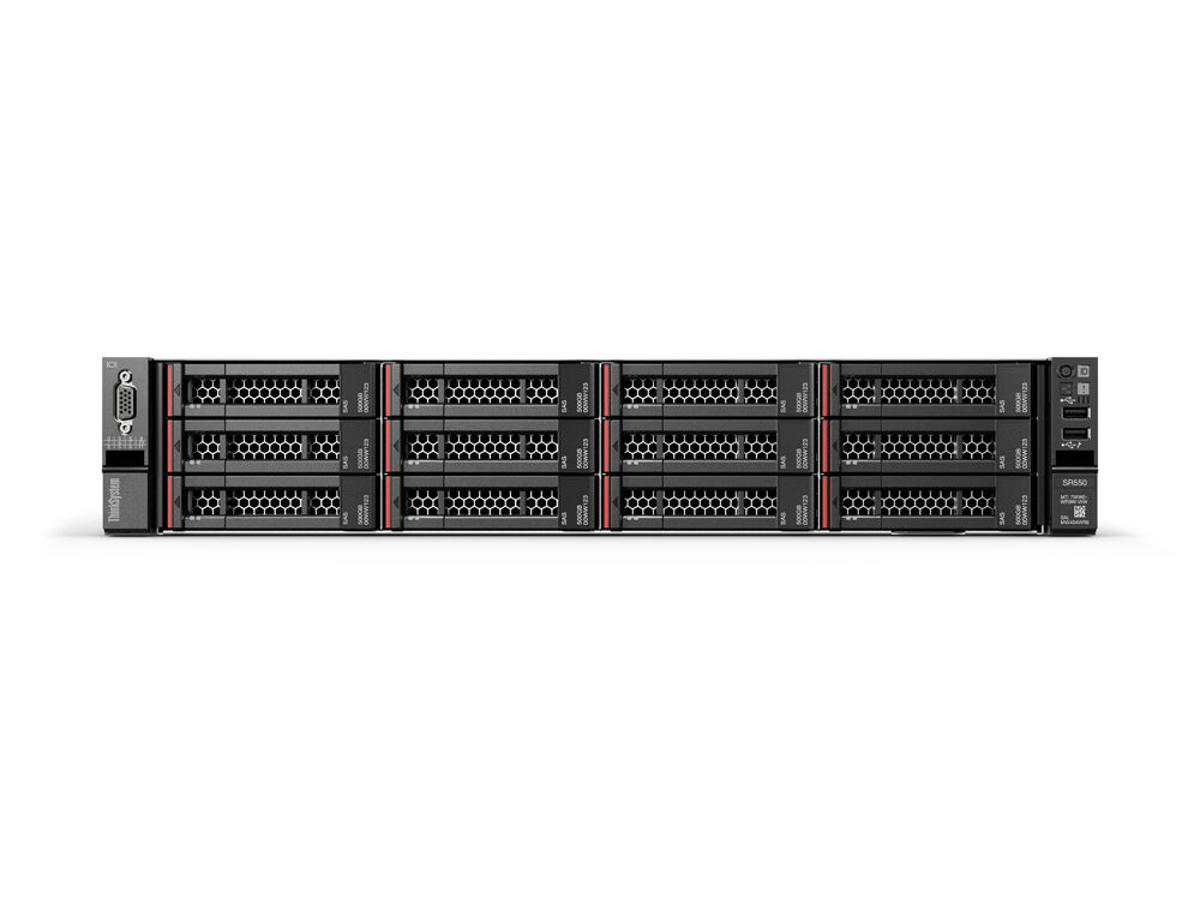

The Lenovo ThinkSystem SR550 dual-socket 2U rack server is ideal for small to large organizations that need industry-leading reliability, management, and security, as well as cost-optimized performance, storage capacity, and flexible I/O. Designed to handle a wide range of workloads, the SR550 server cost-effectively performs complex analytics on structured and unstructured data, speeds transactional systems, and powers through collaboration workloads with ever-growing data sets and large files shared within an organization.
Featuring the Intel Xeon Processor Scalable Family, the SR550 server offers a balance of performance, capacity and value. The SR550 server supports up to two processors, up to 768 GB of 2666 MHz TruDDR4 memory, up to 16x 2.5-inch or up to 12x 3.5-inch drive bays with an extensive choice of SAS/SATA SSDs and SAS/SATA HDDs, and flexible and scalable I/O expansion options with the LOM slot and up to 6x PCIe slots.
The SR550 server offers basic software RAID or advanced hardware RAID protection and a wide range of networking options, including embedded LOM, selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR550 server, provides advanced service processor control, monitoring, and alerting functions.
The SR550 server offers a balance of processing power, storage capacity, and cost for small and medium businesses up to the large enterprise. Ease of use and comprehensive systems management tools help make deployment easier and efficient design improves your business environment and helps save operational costs. -
Processor Processorserie Intel® Xeon® Processorproducent Intel Processormodel 4110 Processorfrekvens 2,1 GHz Processorgeneration Intel Xeon skalerbar 1. generation Processor boost frekvens 3 GHz Processorkerner 8 Processor-cache 11 MB Bundkort chipsæt Intel C622 Hukommelseskanaler understøttet af processor Hepta Antal installerede processorer 1 Thermal Design Power (TDP) 85 W Processor cache type L3 Processor sokkel LGA 3647 (Socket P) Processor litografi 14 nm Processortråde 16 Processor driftstilstande 64-bit Bus type UPI Antal QPI-lins 2 Processor kodenavn Skylake Tcase 77 °C Maksimal intern hukommelse understøttet af processor 768 GB Hukommelsestyper understøttet af processor LPDDR4-SDRAM Hukommelsesurhastigheder understøttet af processor 2400 MHz Fejlkorrigerende kode understøttet af processor Ja Udfør deaktivering af bit Ja Maksimalt antal PCI Express-kanaler 48 Processor-pakke størrelse 76.0 x 56.5 mm Understøttede instruktionssæt AVX, AVX 2.0, AVX-512, SSE4.2 Skalerbarhed 2S Indlejret tilgængelige muligheder Ja Konfliktfri processor Ja Hukommelse Intern hukommelse 16 GB Intern hukommelsestype DDR4-SDRAM Hukommelsesstik 24 Fejlkorrigerende kode Ja Hukommelsesur hastighed 2666 MHz Hukommelseslayout (slots x størrelse) 1 x 16 GB Lagring Understøtter RAID Ja Optisk drevtype Ingen Antal understøttede HHD'er 12 Understøttede HDD-størrelser 3.5" RAID-niveauer 0, 1, 5, 6, 10, 50, 60, JBOD Understøttede RAID-kontroller 1x 930-16i Hot-swap Ja Understøttede lagerdrev brugerflader SAS, Serial ATA III Indbygget kortlæser Ingen Grafik Diskret grafikadapter Ingen On-board grafikkort Ja On-board grafikkort, model Matrox G200 Netværk Wi-Fi Ingen Bluetooth Ingen Ethernet LAN Ja Kabelteknologi 10/100/1000Base-T(X) Porte & Grænseflader Antal USB 2.0-porte 1 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3 Antal serielle porte 1 Udvidelsessokler PCI Ekspres x8 slots 1 PCI Express slots version 3.0 Design Kabinettype Stativ (2U) Stativ-montering Ja Understøttelse af redundante blæsere Ja Rack skinner Ja Præstation Målstyring XClarity Standard Trusted Platform Module (TPM) Ja Software Kompatible operativsystemer Microsoft Windows Server 2016 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 7.4 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 6.9 Server x64 Edition SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 11 for AMD64/EM64T SP4 VMware vSphere 6.5 (ESXi) Update 1 VMware vSphere 6.5 (ESXi) VMware vSphere 6.0 (ESXi) Update 3 Processor særlige funktioner Enhanced Intel SpeedStep Teknologi Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Turbo Boost Teknologi 2.0 Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Intel® Trusted Execution Teknologi Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® TSX-NI Ja Intel® 64 Ja Intel® Virtualization Technology (VT-x) Ja Intel® TSX-NI-version 1,00 Processor ARK ID 123547 Strømstyring Redundant strømforsyning Ja Strømforsyning 750 W Antal understøttede overflødige strømforsyninger 2 Antal installerede strømforsyninger 1 Strømforsyningens indgangsfrekvens 50 - 60 Hz Driftsbetingelser Driftstemperatur (T-T) 5 - 45 °C Opbevaringstemperatur (T-T) -40 - 60 °C Relativ luftfugtighed ved drift (H-H) 8 - 90% Relativ luftfugtighed ved opbevaring (H-H) 8 - 90% Driftshøjde 0 - 3050 m Bæredygtighed Bæredygtighedscertifikater ENERGY STAR Vægt & størrelser Bredde 445 mm Dybde 720 mm Højde 87 mm Andre funktioner Indbygget skærm Ingen
