Varenummer: 5458E4G
Mere information
-
- Enhanced performance advantages in a space-saving form factor.
- Improved flexibility for faster, simpler expansion as you need it.
- Entry-level server needs with IBM reliability, manageability and value.
- Groundbreaking system storage density in a 1U entry-level server.
- Innovative technology with the latest processors and large memory capacity, in a compact 1U footprint.
- Power-efficient and 80 PLUS®-compliant design to help save energy costs.
- Affordable price point and total cost of ownership.

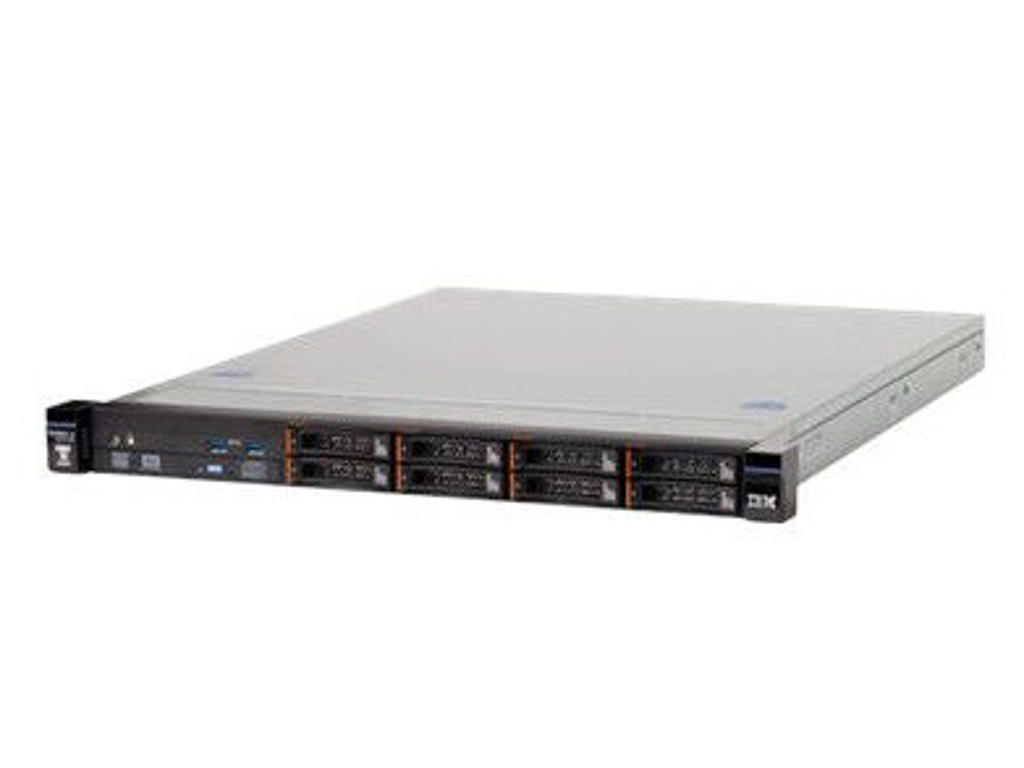

The new IBM® System x3250 M5 is the most compact rack server in the IBM System x® portfolio. Designed in a single-socket 1U form factor, it supports double the system storage density of its predecessor in the same 22-inch deep chassis—four 3.5-inch hard disk drives (HDDs) or up to eight 2.5-inch SAS/SATA HDDs.2 Choose the latest Intel processor that best matches your workloads, whether Intel Xeon E3-1200 v3 series, Core i3, or Pentium, including Xeon Data Center Graphics processors. With increasing focus on data security, the included Trusted Platform Module (TPM) can help safely store cryptographic keys.
Expand with simplicity—on your timetable
After activating the IBM Integrated Management Module 2 (IMM2) standard on your server, you can use IBM Feature on Demand (FoD) for several upgrades. For example, using FoD you can easily enable two more Gigabit Ethernet (GbE) ports, in addition to the two standard ports, without opening your system hardware. You can also upgrade the speed and security of the ServeRAID C100 RAID-5 upgrade within the FoD key activation system. Furthermore, by using FoD for upgrades, your two PCIe x8 expansion slots remain free for other IBM certified upgrade options as your business grows. -
Processor Processorserie Intel® Xeon® E3 V3 Family, Intel Xeon E3-1200 v3 Processorproducent Intel Processormodel E3-1220v3 Processorfrekvens 3,1 GHz Processor boost frekvens 3,5 GHz Processorkerner 4 Processor-cache 8 MB Bundkort chipsæt Intel® C226 Hukommelseskanaler understøttet af processor Dobbelt Antal installerede processorer 1 Thermal Design Power (TDP) 80 W Processor cache type Smart cache Systembus-hastighed 5 GT/s Maksimalt antal SMP-processorer 1 Processor sokkel LGA 1150 (stik H3) Processor litografi 22 nm Processortråde 4 Processor driftstilstande 64-bit Stepping C0 FSB Paritet Ingen Bus type DMI Antal QPI-lins 1 Processor kodenavn Haswell Maksimal intern hukommelse understøttet af processor 32 GB Hukommelsestyper understøttet af processor DDR3-SDRAM Hukommelsesurhastigheder understøttet af processor 1333,1600 MHz Hukommelsesbåndbredde understøttet af processor (maks.) 25,6 GB/sek. Fejlkorrigerende kode understøttet af processor Ja Udfør deaktivering af bit Ja Idle status Ja Termiske overvågningsteknologier Ja Maksimalt antal PCI Express-kanaler 16 PCI Express-konfigurationer 1x8, 1x16, 2x4, 2x8 Processor-pakke størrelse 37.5 x 37.5 mm Understøttede instruktionssæt AVX 2.0, SSE4.1, SSE4.2 Skalerbarhed 1S Indlejret tilgængelige muligheder Ingen Specifikation for termisk opløsning PCG 2013D Grafisk og IMC litografi 22 nm Konfliktfri processor Ingen Hukommelse Intern hukommelse 4 GB Intern hukommelsestype DDR3-SDRAM Maksimal intern hukommelse 32 GB Hukommelsesstik 4 Fejlkorrigerende kode Ja Hukommelsesur hastighed 1600 MHz Hukommelseslayout (slots x størrelse) 1 x 4 GB Lagring Maksimal lagerkapacitet 12 TB Samlet lagringskapacitet 0 GB Understøtter RAID Ja Optisk drevtype DVD±RW Antal installerede HDD'er 0 HDD-grænseflade SATA, Serial Attached SCSI (SAS) HDD-størrelse 2.5" Antal understøttede HHD'er 4 Grafik On-board grafikkort Ingen On-board grafikkort, model Ikke tilgængelig Maksimal grafikadapterhukommelse 16 MB Netværk LAN Kontroller Broadcom BCM5719 Ethernet LAN Ja Kabelteknologi 10/100/1000Base-T(X) Ethernet-grænsefladetype Gigabit Ethernet Porte & Grænseflader Ethernet LAN-porte (RJ-45) 4 Antal USB 2.0-porte 6 Antal PS/2-porte 0 Antal VGA-porte (D-sub) 1 Antal serielle porte 1 Udvidelsessokler PCI Ekspres x8 (Gen 3.x) slots 2 PCI Express slots version 3.0 Design Kabinettype Stativ (1U) Software Operativsystem installeret Ingen Kompatible operativsystemer Microsoft Windows Server 2012 R2/ Microsoft Windows Server 2012/Microsoft Windows Server 2008 R2, Red Hat Linux, Novell SUSE Linux, VMware Processor særlige funktioner CPU-konfiguration (maks.) 1 Intel® Rapid Storage Teknologi Ingen Enhanced Intel SpeedStep Teknologi Ja Intel® Identity Protection Teknologi (Intel® IPT) Ja Intel® Wireless Display (Intel® WiDi) Ingen Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Anti-Theft Teknologi (Intel® AT) Ja Intel® Hyper Threading Teknologi (Intel® HT Technology) Ingen Intel® My WiFi Teknologi (Intel® MWT) Ingen Intel® Turbo Boost Teknologi 2.0 Intel® Quick Sync Video Teknologi Ingen Intel® InTru™ 3D Teknologi Ingen Intel® Clear Video HD Teknologi (Intel® CVT HD) Ingen Intel® Insider™ Ingen Intel® Flex Memory Access Ja Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Intel® Trusted Execution Teknologi Ja Intel® Enhanced Halt State Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® Demand Based Switching Ingen Intel® Sikker Nøgle Ja Intel® TSX-NI Ja Intel® Stabil Billede Platformsprogram (SIPP) Ja Intel® OS Guard Ja Intel® klar video teknologi Ingen Intel® Clear Video Teknologi til MID (Intel® CVT for MID) Ingen Intel® 64 Ja Intel® Identity Protection Technology version 1,00 Intel® Stable Billede Platform Program (SIPP) version 1,00 Intel® Secure Key Technology version 1,00 Intel® Virtualization Technology (VT-x) Ja Intel® TSX-NI-version 1,00 Intel® Dual Display Capable Teknologi Ingen Intel® FDI Teknologi Ingen Intel® Fast Memory Access Ja Processor ARK ID 75052 Strømstyring Redundant strømforsyning Ja Strømforsyning 300 W Antal installerede strømforsyninger 0 Antal af hovedstrømforsyninger 1 Driftsbetingelser Driftstemperatur (T-T) 10 - 35 °C Opbevaringstemperatur (T-T) -40 - 60 °C Relativ luftfugtighed ved opbevaring (H-H) 8 - 80% Driftshøjde 0 - 914 m Vægt & størrelser Bredde 435 mm Dybde 576 mm Højde 43 mm Andre funktioner Grafikadapter G200eR2
