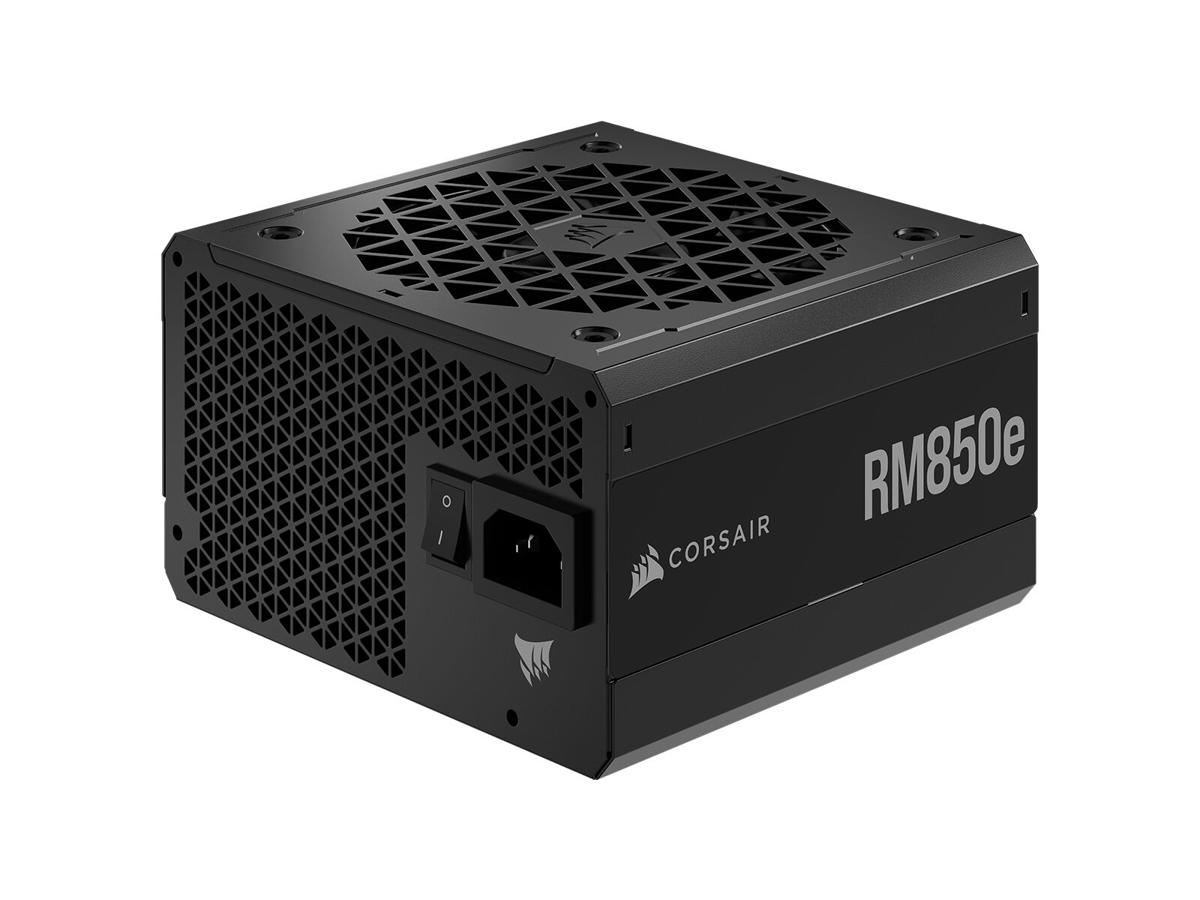

CORSAIR RMe Series Fully Modular Low-Noise Power Supplies with dual 8-pin EPS12V connectors provide quiet, reliable power with 80 PLUS Gold efficiency to a wide variety of PC builds.
FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
TUNED FOR LOW NOISE OPERATION
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
With Zero RPM Fan Mode for near-silent operation at lower loads.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS GOLD-CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
| Strømstyring | |
| Total effekt | 850 W |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 47 - 63 Hz |
| Indgangsstrøm | 10 - 5 A |
| Kombineret effekt (+3,3 V) | 150 W |
| Kombineret effekt (+12 V) | 850 W |
| Kombineret effekt (+5 V) | 150 W |
| Kombineret effekt (-12V) | 3,6 W |
| Kombineret effekt (+5 VSB) | 15 W |
| Maks. udgangsstrøm (+3,3 V) | 20 A |
| Maks. udgangsstrøm (+12 V) | 70,8 A |
| Maks. udgangsstrøm (+5 V) | 20 A |
| Maks. udgangsstrøm (-12V) | 0,3 A |
| Maks. udgangsstrøm (+5 VSB) | 3 A |
| Porte & Grænseflader | |
| Motherboard, strømstik | 24-pin ATX |
| Længde på strømkabel på bundkort | 61 cm |
| Antal SATA strømstik | 7 |
| Antal PATA strømstik | 4 |
| Strømkabellængde SATA | 700,800 mm |
| EPS strømstik (8-pin) | Ja |
| PCI ekspres strømforbindelser (6+2 pin) | 2 |
| Kabeltype | Fuldt modulær |
| Præstation | |
| Formål | PC |
| Strømforsyningenhed (PSU) formfaktor | ATX |
| 80 PLUS certificering | 80 PLUS Gold |
| ATX-version | 2.4 |
| Lydløs tilstand | Ja |
| Gennemsnitstid mellem fejl (MTBF) | 100000 t |
| Design | |
| Produktfarve | Sort |
| Kølingstype | Aktiv |
| Ventilator diameter | 12 cm |
| Antal blæsere | 1 blæser(e) |
| Blæser placering | Top |
| Tænd-/slukkontakt | Ja |
| Vægt & størrelser | |
| Vægt | 1,52 kg |
