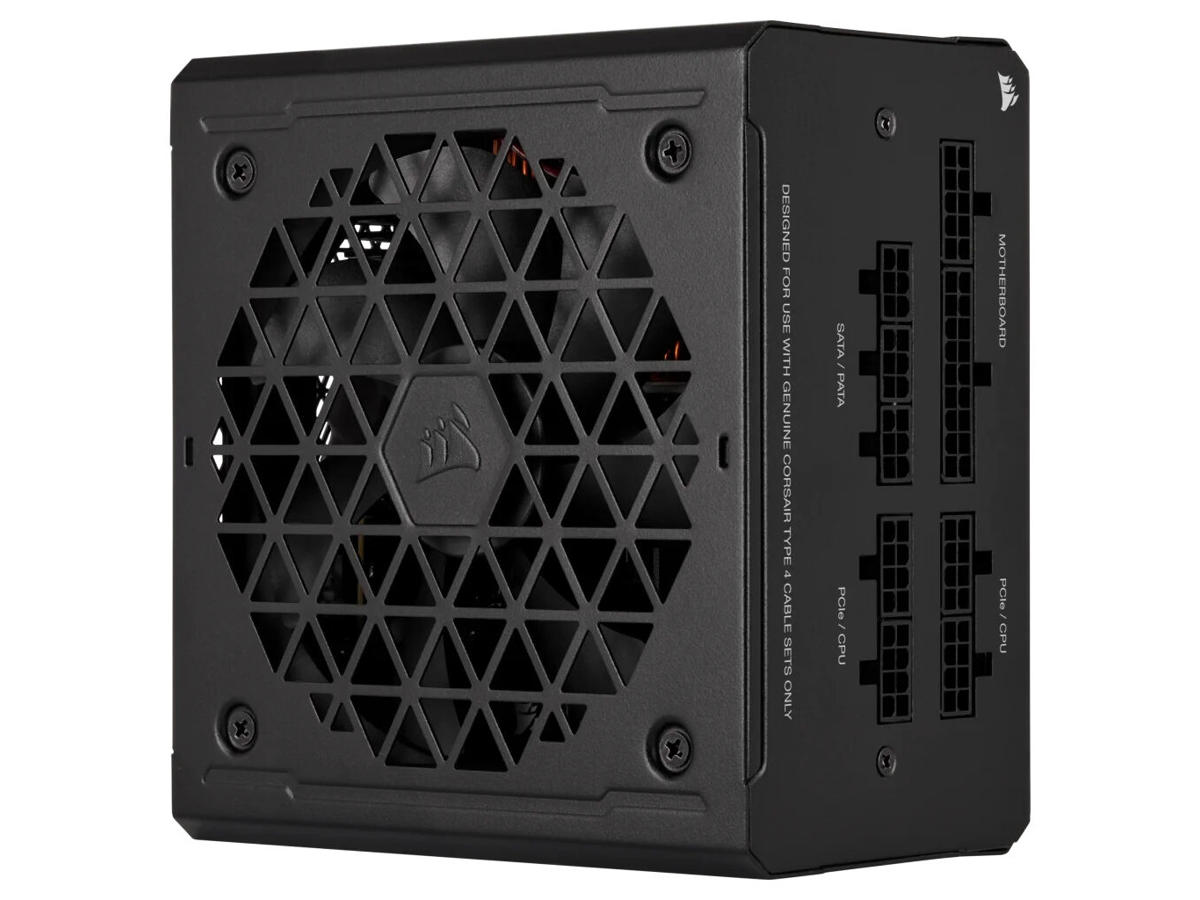

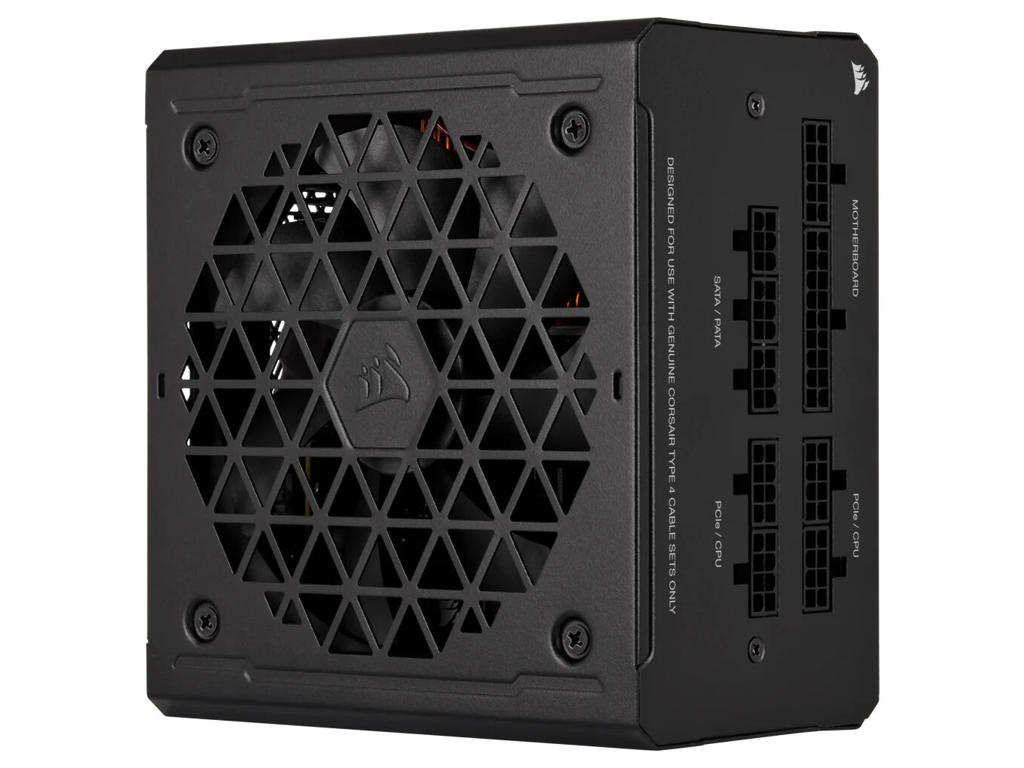

FULLY MODULARCABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Four universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
LOW NOISE OPERATION IN A COMPACT SIZE
A compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RM Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RM supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS GOLD-CERTIFIED
Steady power output at up to 90% efficiency for lower power consumption, less noise, and cooler temperatures.
| Strømstyring | |
| Total effekt | 650 W |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 47 - 63 Hz |
| Kombineret effekt (+3,3 V) | 110 W |
| Kombineret effekt (+12 V) | 650 W |
| Kombineret effekt (+5 V) | 110 W |
| Kombineret effekt (-12V) | 3,6 W |
| Kombineret effekt (+5 VSB) | 15 W |
| Maks. udgangsstrøm (+3,3 V) | 20 A |
| Maks. udgangsstrøm (+12 V) | 54 A |
| Maks. udgangsstrøm (+5 V) | 20 A |
| Maks. udgangsstrøm (-12V) | 0,3 A |
| Maks. udgangsstrøm (+5 VSB) | 3 A |
| Effektivitet | 90% |
| Porte & Grænseflader | |
| Motherboard, strømstik | 24-pin ATX |
| Længde på strømkabel på bundkort | 61 cm |
| Antal SATA strømstik | 7 |
| Antal PATA strømstik | 4 |
| Strømkabellængde SATA | 100,500 mm |
| EPS-strømstik (4 + 4-benet) | Ja |
| PCI ekspres strømforbindelser (6+2 pin) | 2 |
| CPU strømstik (4+4 pin) | Ja |
| Kabeltype | Fuldt modulær |
| Præstation | |
| Formål | PC |
| Strømforsyningenhed (PSU) formfaktor | ATX |
| 80 PLUS certificering | 80 PLUS Gold |
| ATX-version | 2.53 |
| Gennemsnitstid mellem fejl (MTBF) | 100000 t |
| Design | |
| Produktfarve | Sort |
| Kølingstype | Aktiv |
| Ventilator diameter | 12 cm |
| Antal blæsere | 1 blæser(e) |
| Tænd-/slukkontakt | Ja |
| Vægt & størrelser | |
| Bredde | 150 mm |
| Dybde | 140 mm |
| Højde | 86 mm |
| Vægt | 2,26 kg |
