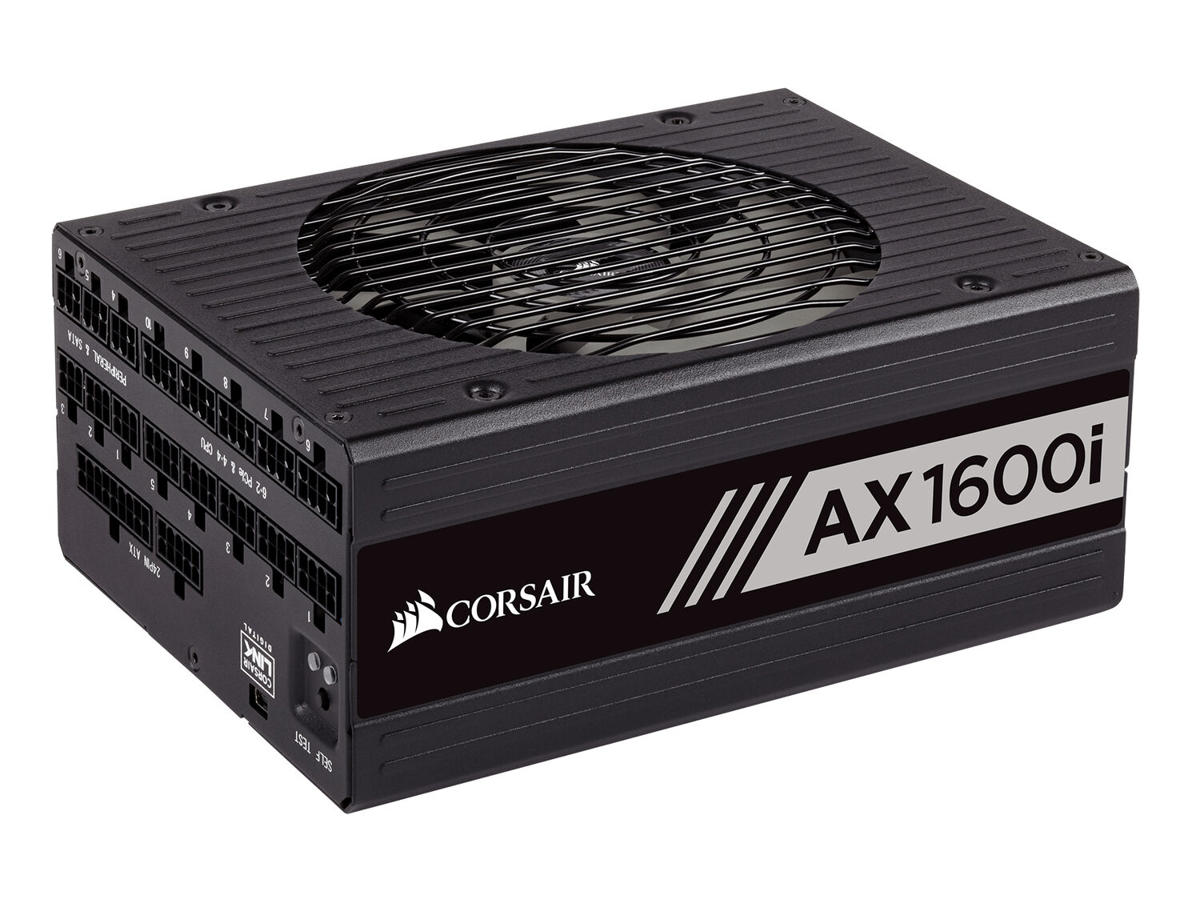

THE WORLD’S BEST PSU GETS BETTER The CORSAIR AX1600i is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency. 1600W OF ULTIMATE POWER Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficient power. TOP TIER COMPONENTS 100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency. THE ONLY CONSUMER PSU WITH GALLIUM NITRIDE TRANSISTORS Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller form-factor. WORLD CLASS ELECTRICAL PERFORMANCE Incredibly stable voltages and ultra-low ripple noise. SOFTWARE MONITORING CORSAIR LINK software provides in-depth monitoring for PSU temperature, fan speed, voltages, current, AC/DC wattage and efficiency, with the ability to log everything for easy troubleshooting. TAKE CONTROL CORSAIR LINK lets you adjust cooling fan speed, RPM curves and switch between single or multi-rail overcurrent protection (OCP), all from your desktop. 140MM PATENTED FDB COOLING FAN Delivers low-noise operation even at demanding loads. ZERO RPM FAN MODE For near-silent operation at low to medium loads. CHOOSE YOUR COLOR Three-color customizable magnetic side labels let you choose your PSU’s style to match your build. FULLY MODULAR CABLES Use only the cables you need for quick and easy installation. Unused cables can be stored in the included roll-up cable bag. BUILT TO LAST Ten-Year comprehensive CORSAIR warranty.
Strømstyring | |
Total effekt | 1600 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Indgangsstrøm | 9 - 15 A |
Kombineret effekt (+3,3 V) | 180 W |
Kombineret effekt (+12 V) | 1600 W |
Kombineret effekt (+5 V) | 180 W |
Kombineret effekt (-12V) | 9,6 W |
Kombineret effekt (+5 VSB) | 17,5 W |
Maks. udgangsstrøm (+3,3 V) | 30 A |
Maks. udgangsstrøm (+12 V) | 133,3 A |
Maks. udgangsstrøm (+5 V) | 30 A |
Maks. udgangsstrøm (-12V) | 0,8 A |
Maks. udgangsstrøm (+5 VSB) | 3,5 A |
Effektivitet | 94% |
Strømbeskyttelsesfunktioner | Overstrøm |
Porte & Grænseflader | |
Perifere (Molex) strømstik (4-pin) | 3 |
Antal SATA strømstik | 5 |
EPS strømstik (8-pin) | Ja |
Kabeltype | Modulær |
Præstation | |
Formål | PC |
Strømforsyningenhed (PSU) formfaktor | ATX |
80 PLUS certificering | 80 PLUS Titanium |
ATX-version | 2.4 |
EPS-version | 2.92 |
Kontinuerlig udgangstemperatur | 50 °C |
Lejeteknologi | FDB |
Gennemsnitstid mellem fejl (MTBF) | 100000 t |
Design | |
Produktfarve | Sort |
Kølingstype | Aktiv |
Ventilator diameter | 14 cm |
Antal blæsere | 1 blæser(e) |
Tænd-/slukkontakt | Ja |
Vægt & størrelser | |
Bredde | 200 mm |
Dybde | 150 mm |
Højde | 86 mm |
Vægt | 2,65 kg |
Emballeringsdata | |
Etuikort inkluderet | Ja |
Brugervejledning | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 84733020 |
Andre funktioner | |
Skruer inkluderet | Ja |
Kabelbånd inkluderet | Ja |
