Varenummer: MPS-B001-AZBP-NBEU
Mere information
-

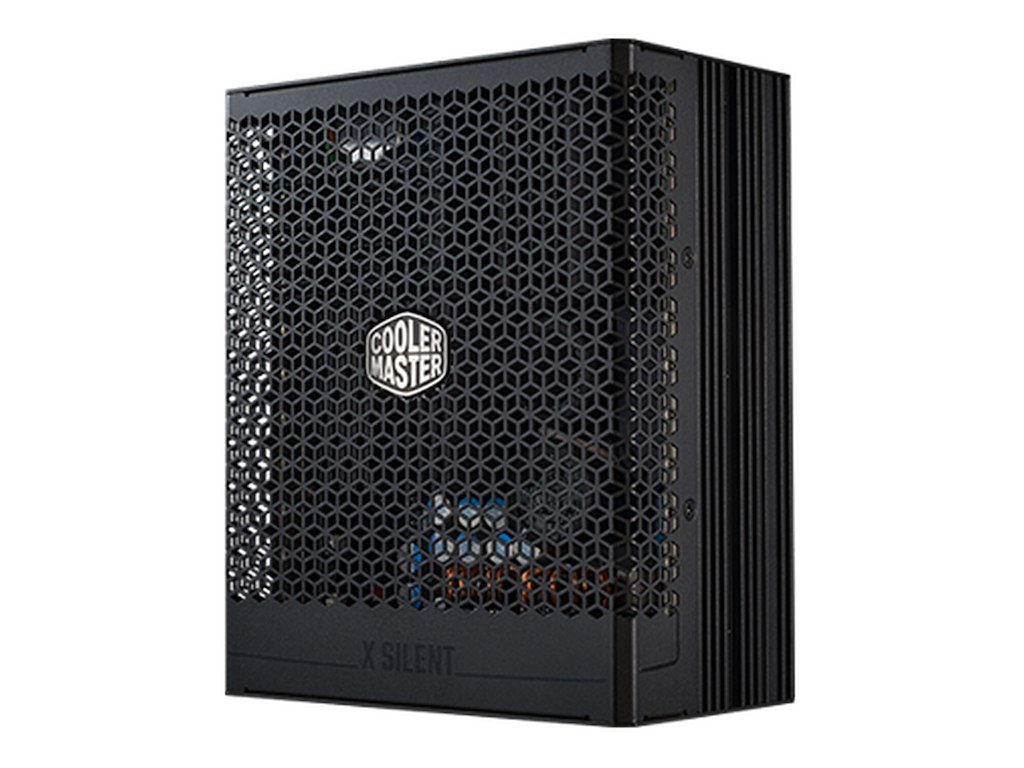

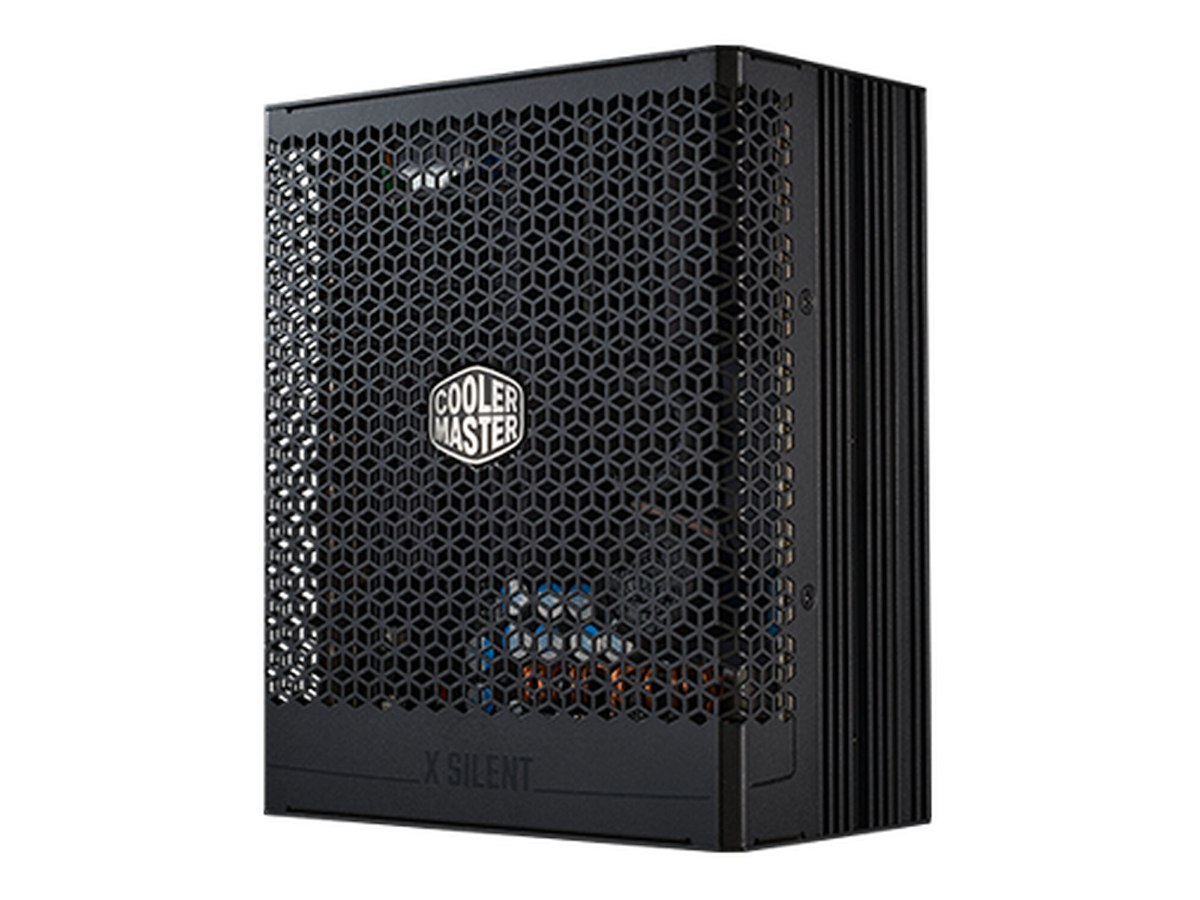

Precise Silent Power
Engineered with a fanless design and industrial IC components, X Silent Edge Platinum features out Heat Pipe.
Dissipation Patent, ensuring quietness for even the most noise-sensitive environments.
NO FAN, NO DUST
Equipped with a heat pipe and an innovative modular thermal structure, our design enhances thermal efficiency, essential for the low-temperature rise of key components and the ultra-quiet fanless operation.
FULLY MODULAR CABLING
Modular cabling minimizes clutter, while the additional ports provide extra functionality.
Cooling System
Patented Heat Decentralized Design
Our Private Aluminum Thermal Mold effectively dissipates heat, and the Innovative Heat Pipe Thermal Tech uniformly regulates unit temperature. This ensures superior thermal control, enhancing efficiency and longevity in demanding environments.
Patented Copper-Aluminum Heat Dissipation
In-house designed composite heat pipe technology enables effective passive thermal management.
Digital Power Management System & MasterCTRL
Equipped with MCUs and Integrated with MasterCTRL software, our reliable PSU meticulously monitors temperature, current load and efficiency in real-time, offering precise and direct oversight.
Active Bridge Rectifier Boosts Efficiency 2%
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
ATX 3.1 SUPPORT & A Dual-color 12V-2X6 Cable
Includes ATX 3.1 support and a dual-color 12V-2x6 connector (with clear purple markings) help users confirm correct installation, preventing poor contact and power issues for enhanced safety and reliability.
In-house designed composite heat pipe technology enables effective passive thermal management. -
Strømstyring Total effekt 1100 W Vekselstrømsindgangsspænding 200 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Indgangsstrøm 6.1 A Strømkorrektionsfaktor (PFC) Aktiv Kombineret effekt (+3,3 V) 120 W Kombineret effekt (+12 V) 1099,2 W Kombineret effekt (+5 V) 120 W Kombineret effekt (-12V) 3,6 W Kombineret effekt (+5 VSB) 15 W Maks. udgangsstrøm (+3,3 V) 20 A Maks. udgangsstrøm (+12 V) 91,6 A Maks. udgangsstrøm (+5 V) 20 A Maks. udgangsstrøm (-12V) 0,3 A Maks. udgangsstrøm (+5 VSB) 3 A Holdetid 16 ms Effektivitet 94% Godt signalstrøm forsinkelseshastighed 100 - 150 ms Strømbeskyttelsesfunktioner Overstrøm, Højspænding, Overophedning, Overstrøm, Kortslutning, Lavspænding Porte & Grænseflader Motherboard, strømstik 24-pin ATX Perifere (Molex) strømstik (4-pin) 1 Længde på strømkabel på bundkort 65 cm Antal SATA strømstik 3 Strømkabellængde SATA 500,650,700,850 mm Strømkabellængde Perifere (Molex) 500,620,740,860 mm EPS strømstik (8-pin) Ja EPS-strømstik (4 + 4-benet) Ja PCI ekspres strømforbindelser (6+2 pin) 4 PCI Express strømstik (12+4-bens) 1 PCI Express strømstik (12+4 pin) ledningslængde 650 mm Strømkabellængde PCI Express 55 cm PMBus connector (5-pin) 1 PMBus connector (5-pin) cable length 65 cm External fan connector (4-pin) Ja External fan connector (4-pin) cable length 40 cm USB motherboard connector Ja USB motherboard connector cable length 80 cm Kabeltype Fuldt modulær Præstation Formål PC Strømforsyningenhed (PSU) formfaktor ATX 80 PLUS certificering 80 PLUS Platinum ATX-version 3.1 Gennemsnitstid mellem fejl (MTBF) 100000 t Design Produktfarve Sort Antal blæsere 0 blæser(e) Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Godkendelser Compliance-certifikater CCC, CE, EAC, RCM, UKCA, BIS, KC Certificering ErP 2014 Lot 3 Vægt & størrelser Bredde 150 mm Dybde 180 mm Højde 86 mm Vægt 3,8 kg Emballeringsdata Pakkebredde 241 mm Pakkedybde 420 mm Pakkehøjde 124 mm Pakkevægt 5 kg Logistik data Hovedkassens bredde (udvendigt) 263 mm Hovedkassens længde (udvendigt) 432 mm Hovedkassen højde (udvendigt) 274 mm Andre funktioner EPS-kabellængde 65 cm
