Unleash Next-Gen Might

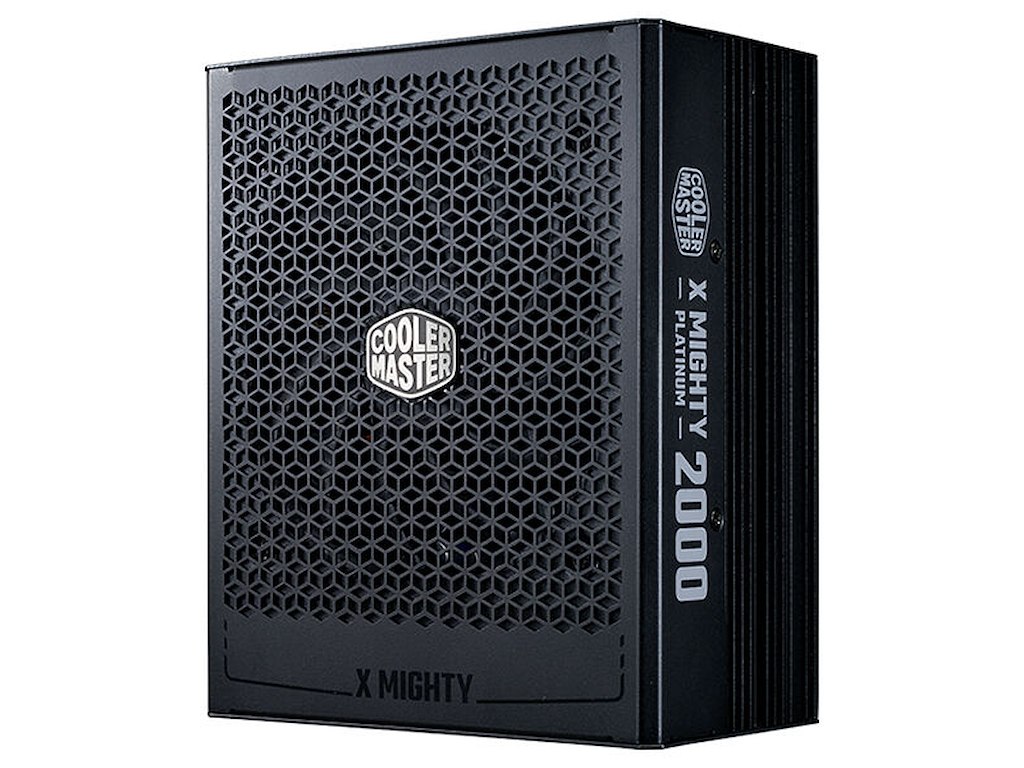

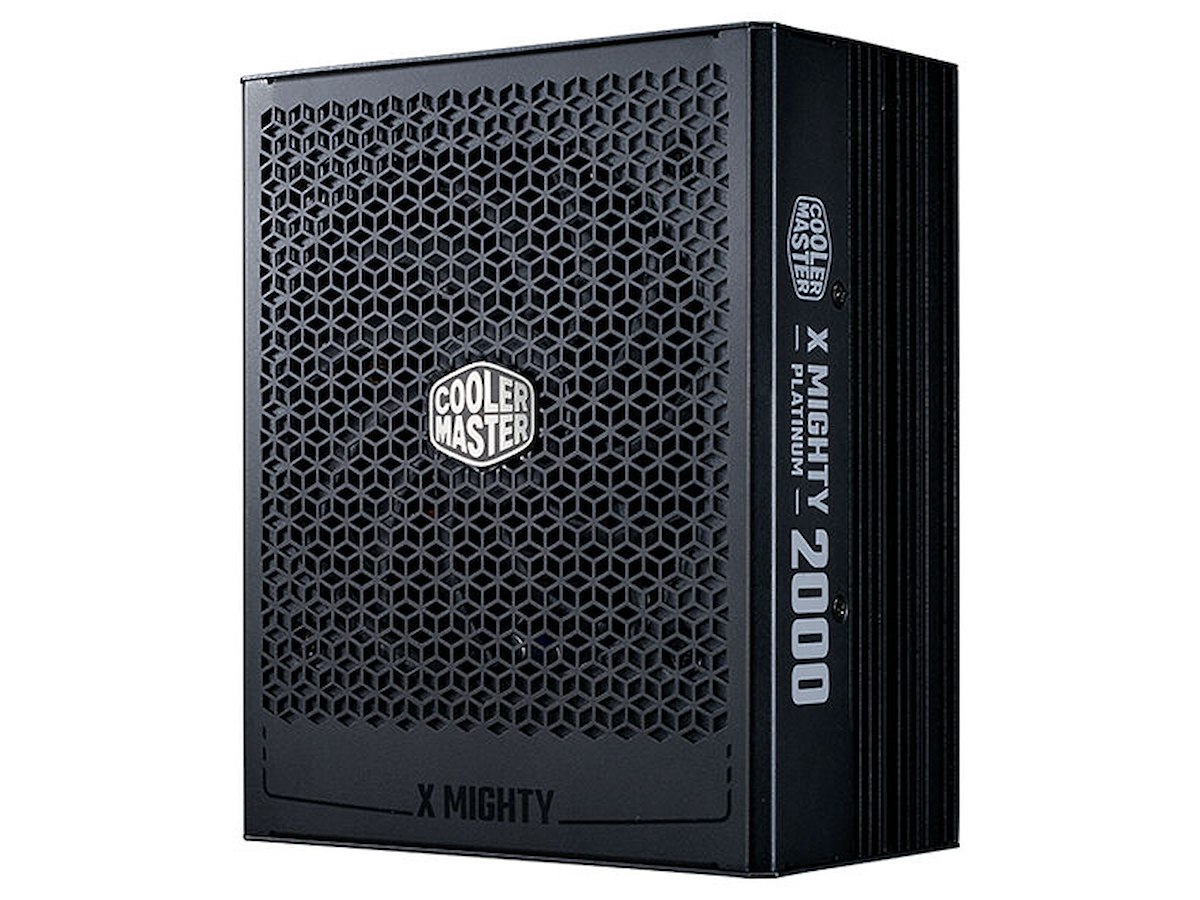

The X Mighty Platinum is a powerhouse blending high-capacity performance, top-tier industrial-grade IC components, and sophisticated interleaved PFC topology. This PSU is engineered to meet the demanding needs of server and artificial intelligence industries, featuring dual 12V-2x6 connectors designed for rigorous, high-performance applications.
Active Bridge Rectifier Boosts Efficiency
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
Fully Modular Cabling
Modular cabling minimizes clutter, while the additional ports provide extra functionality.
Superior Cooling Performance
Cooler Master's exclusive aluminum Thermal Mold in the X Mighty Platinum PSU masterfully disperses heat, complemented by a silent fan with a zero-RPM mode for superior cooling. This dual strategy ensures effective thermal management, maintaining peak performance while prolonging the PSU's lifespan.
Digital Power Management System & MasterCTRL
Equipped with MCUs and Integrated with MasterCTRL software, our reliable PSU meticulously monitors temperature, current load and efficiency in real-time, offering precise and direct oversight.
PSU Calculator
Need help choosing the right power supply for your system?Try out our comprehensive and easy-to-use PSU calculator.
ATX 3.1 Support & Two Durable 12V-2x6 Cables
Includes ATX 3.1 support and two 90-degree 12+4pin (12V-2x6) PCIe 5.1 cables featuring lower temperatures, enhanced durability, and improved safety. -
Strømstyring Total effekt 2000 W Vekselstrømsindgangsspænding 200 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Indgangsstrøm 12 A Strømkorrektionsfaktor (PFC) Aktiv Kombineret effekt (+3,3 V) 120 W Kombineret effekt (+12 V) 1999,2 W Kombineret effekt (+5 V) 120 W Kombineret effekt (-12V) 3,6 W Kombineret effekt (+5 VSB) 15 W Maks. udgangsstrøm (+3,3 V) 20 A Maks. udgangsstrøm (+12 V) 166,6 A Maks. udgangsstrøm (+5 V) 20 A Maks. udgangsstrøm (-12V) 0,3 A Maks. udgangsstrøm (+5 VSB) 3 A Holdetid 16 ms Effektivitet 94% Godt signalstrøm forsinkelseshastighed 100 - 150 ms Strømbeskyttelsesfunktioner Overstrøm, Overstrøm, Højspænding, Overophedning, Kortslutning, Overspænding og indkobling, Lavspænding Porte & Grænseflader Motherboard, strømstik 24-pin ATX Perifere (Molex) strømstik (4-pin) 4 Længde på strømkabel på bundkort 65 cm Antal SATA strømstik 12 Strømkabellængde SATA 500,650,800,950 mm Strømkabellængde Perifere (Molex) 500,620,740,860 mm EPS strømstik (8-pin) Ja EPS-strømstik (4 + 4-benet) Ja PCI ekspres strømforbindelser (6+2 pin) 4 4 1 ATX strømstrik (24 stikben) Ja USB 3.2 Gen 1 (3.1 Gen 1) stik 1 Antal EPS-stik 2 Kabeltype Fuldt modulær Præstation Formål PC Strømforsyningenhed (PSU) formfaktor ATX 80 PLUS certificering 80 PLUS Platinum ATX-version 3.1 Lejeteknologi FDB Gennemsnitstid mellem fejl (MTBF) 100000 t Design Produktfarve Sort Kølingstype Aktiv Ventilator diameter 12 cm Antal blæsere 1 blæser(e) Ventilatorhastighed 0 - 2500 rpm Blæser placering Top Tænd-/slukkontakt Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Godkendelser Certificering TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA Vægt & størrelser Bredde 150 mm Dybde 180 mm Højde 86 mm Vægt 4,1 kg Emballeringsdata Pakkebredde 382 mm Pakkedybde 224 mm Pakkehøjde 126 mm Pakkevægt 4,8 kg Pakketype Kasse Tekniske detaljer Bæredygtighedscertifikater ErP
