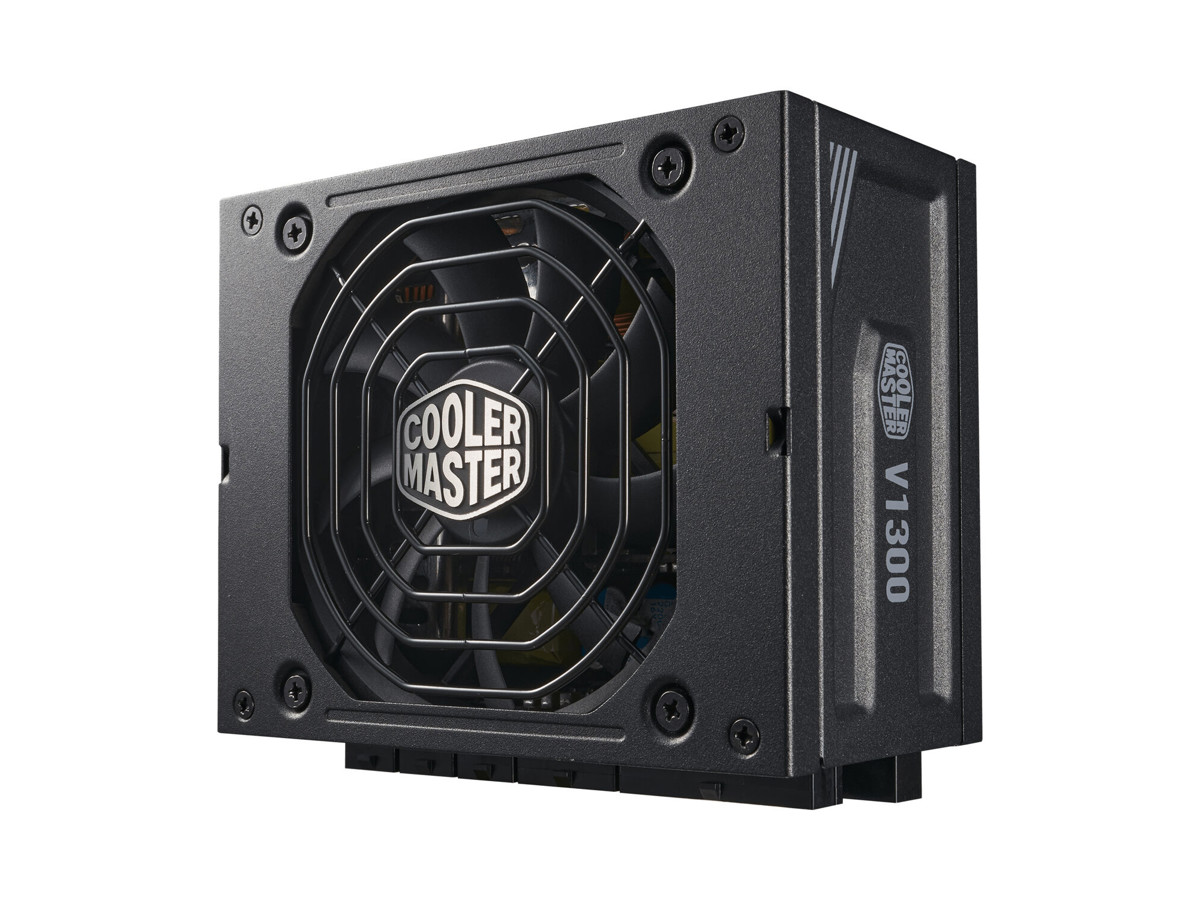

Cooler Master V SFX Platinum 1300 enhed til strømforsyning 1300 W 24-pin ATX Sort
Varenummer: MPZ-D001-SFBP-BEU
.
DKK 7.185,00 / Stk
DKK 5.748,00 ekskl. moms
  •
Cooler Master V SFX Platinum 1300. Total effekt: 1300 W, Vekselstrømsindgangsspænding: 200 - 240 V, Vekselstrømsindgangsfrekvens: 50 - 60 Hz. Motherboard, strømstik: 24-pin ATX, Længde på strømkabel på bundkort: 30 cm, Strømkabellængde SATA: 100,550,700,400,250 mm. Formål: PC/server, Strømforsyningenhed (PSU) formfaktor: SFX, 80 PLUS certificering: 80 PLUS Platinum. Produktfarve: Sort, Kølingstype: Aktiv, Ventilator diameter: 9,2 cm. Bredde: 125 mm, Dybde: 100 mm, Højde: 63,5 mm


Mere information

  • Industrial Leading SFX Power Supply

    A Revolution to SFX
    Leading the SFX power supply industry, the V SFX Platinum delivers not only the most powerful SFX power supply but fully compatable with ATX3.0, both ITX and ATX cases, bringing a revolution to SFX power supply.

    High Power Density
    Adopting with the components miniaturization technology by the improvement of materials engineering, manufacturing process and leading thermal technology, the V SFX Platinum has achieved one of the highest power density, 53% more than V SFX Gold 850W power supply, in the small form factor.

    Miniaturized But Solid
    Crafted with flat copper wire on Choke of DC-DC, flat transformer piling and aluminum plate dissipation structure on full-bridge LLC, it can effectively achieve components miniaturization. Adopting with advanced manufacturing process, it simultaneously keeps miniaturized but solid.

    Enhanced Dissipation
    With the integration of transformer and rectifier, full-bridge LLC heat dissipation structure, and the EMI-inhibited amorphous metal materials, the V SFX Platinum provideds advanced performance and heat dissipation.

    Full & Flexible Compatibility
    Designed to fully support ATX3.0 and provide backward compatibility, supporting both RTX 40 and 30 series graphics cards, and alongside with included bracket to support both ITX and ATX cases, the V SFX Platinum offers a PSU with the most complete compatibility.

    100% Japanese capacitors
    Implementing large and high-quality Japanese capacitors to increase efficiency and reduce ripple noise.

    Fully Modular Cabling
    Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.

  • Strømstyring
    Total effekt 1300 W
    Vekselstrømsindgangsspænding 200 - 240 V
    Vekselstrømsindgangsfrekvens 50 - 60 Hz
    Indgangsstrøm 7.7 A
    Strømkorrektionsfaktor (PFC) Aktiv
    Kombineret effekt (+3,3 V) 120 W
    Kombineret effekt (+12 V) 1300 W
    Kombineret effekt (+5 V) 120 W
    Kombineret effekt (-12V) 3,6 W
    Kombineret effekt (+5 VSB) 15 W
    Maks. udgangsstrøm (+3,3 V) 20 A
    Maks. udgangsstrøm (+12 V) 108,3 A
    Maks. udgangsstrøm (+5 V) 20 A
    Maks. udgangsstrøm (-12V) 0,3 A
    Maks. udgangsstrøm (+5 VSB) 3 A
    Holdetid 16 ms
    Effektivitet 94%
    Godt signalstrøm forsinkelseshastighed 100 - 150 ms
    Strømbeskyttelsesfunktioner Overstrøm, Overophedning, Højspænding, Lavspænding, Overstrøm, Kortslutning
    Porte & Grænseflader
    Motherboard, strømstik 24-pin ATX
    Perifere (Molex) strømstik (4-pin) 4
    Længde på strømkabel på bundkort 30 cm
    Antal SATA strømstik 8
    Strømkabellængde SATA 100,550,700,400,250 mm
    EPS strømstik (8-pin) Ja
    EPS-strømstik (4 + 4-benet) Ja
    PCI ekspres strømforbindelser (6+2 pin) 3
    Strømkabellængde PCI Express 40 cm
    ATX-strømkontakter (12+4 pin) Ja
    Præstation
    Formål PC/server
    Strømforsyningenhed (PSU) formfaktor SFX
    80 PLUS certificering 80 PLUS Platinum
    ATX-version 3.0
    Lejeteknologi FDB
    Gennemsnitstid mellem fejl (MTBF) 100000 t
    Certificering ErP 2014 Lot 3, TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA
    Design
    Produktfarve Sort
    Kølingstype Aktiv
    Ventilator diameter 9,2 cm
    Antal blæsere 1 blæser(e)
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 50 °C
    Vægt & størrelser
    Bredde 125 mm
    Dybde 100 mm
    Højde 63,5 mm
    Vægt 1,95 kg
    Emballeringsdata
    Pakkebredde 197 mm
    Pakkedybde 272 mm
    Pakkehøjde 100 mm
    Pakkevægt 2,27 kg
    Logistik data
    Hovedkasser pr. palle (udvendigt) 32 stk
    Hovedkassens bredde (udvendigt) 290 mm
    Hovedkassens længde (udvendigt) 525 mm
    Hovedkassen højde (udvendigt) 235 mm
    Produkter pr. hovedkasse (udvendigt) 5 stk
    Andre funktioner
    EPS-kabellængde 45 cm
