Varenummer: MPE-A501-AFCAG-3GEU
Mere information
-

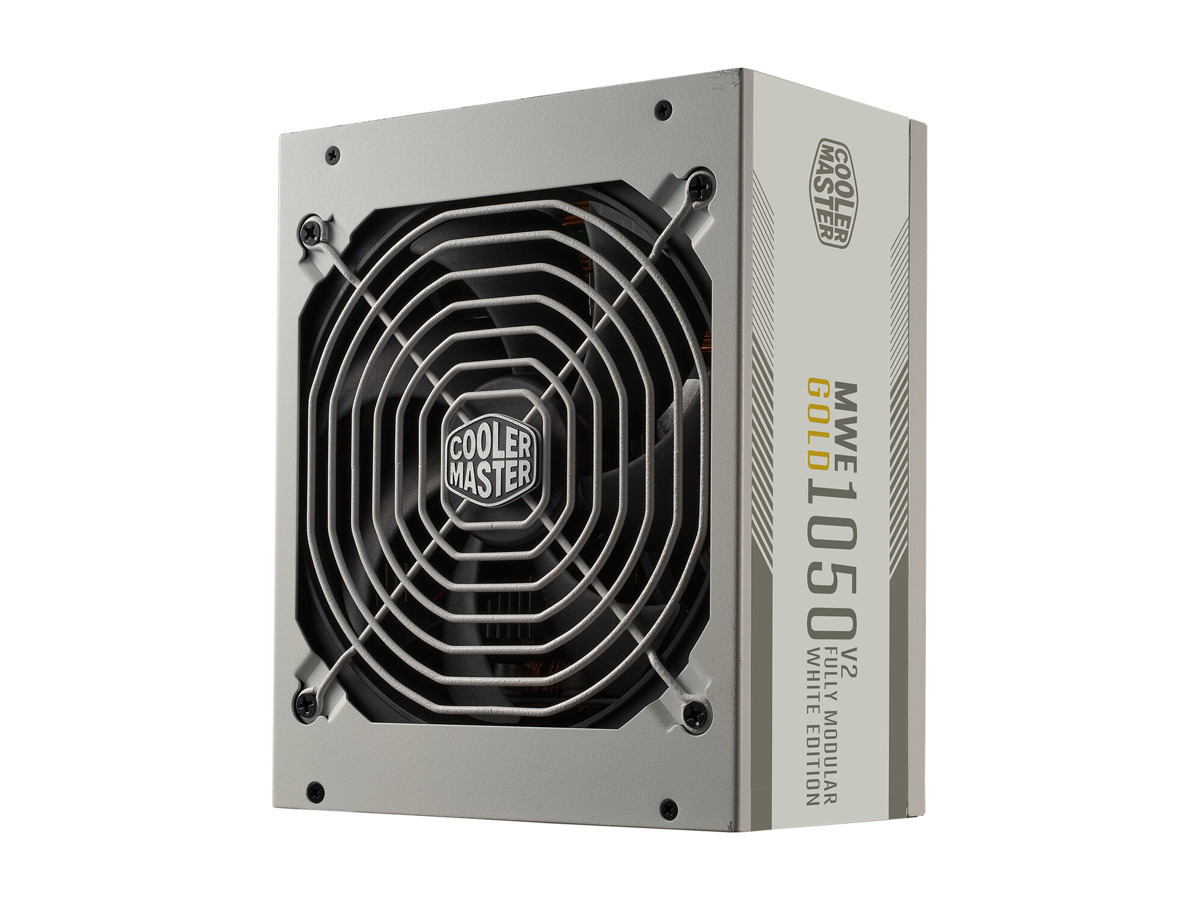

MWE Gold 1050 - V2 ATX 3.0 White Version
ATX 3.0 Fully Modular 80 PLUS Gold Certified ATX Power Supply Unit
100% ATX 3.0 Compatible
Cooler Master took the initiative and continuously developing our first ATX3.0 Power Supply lineup. Compliant with ATX3.0 standard and 12VHPWR connectors, the MWE Gold 1050/1250 - V2 ATX3.0 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.
80 PLUS Gold Certified
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 - V2 ATX3.0 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.
Quiet Cooling
The MWE Gold 1050/1250 - V2 ATX3.0 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing(FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System(STCM), the fan will not spin until at 40% of rated output power to reduce noise.
Industrial-grade Temperature Resilience
The MWE Gold 1050/1250 - V2 ATX3.0 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.
Fully Modular Cabling
The fully modular version of the MWE Gold 1050/1250 - V2 ATX3.0 comes with a set of flat white cables that can be customized to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling. -
Strømstyring Total effekt 1050 W Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Indgangsstrøm 13 - 6 A Strømkorrektionsfaktor (PFC) Aktiv Kombineret effekt (+3,3 V) 120 W Kombineret effekt (+12 V) 1050 W Kombineret effekt (+5 V) 120 W Kombineret effekt (-12V) 3,6 W Kombineret effekt (+5 VSB) 15 W Maks. udgangsstrøm (+3,3 V) 20 A Maks. udgangsstrøm (+12 V) 87,5 A Maks. udgangsstrøm (+5 V) 20 A Maks. udgangsstrøm (-12V) 0,3 A Maks. udgangsstrøm (+5 VSB) 3 A Holdetid 16 ms Effektivitet 90% Godt signalstrøm forsinkelseshastighed 100 - 150 ms Strømbeskyttelsesfunktioner Overstrøm, Overstrøm, Højspænding, Overophedning, Kortslutning, Lavspænding Porte & Grænseflader Motherboard, strømstik 24-pin ATX Perifere (Molex) strømstik (4-pin) 4 Længde på strømkabel på bundkort 65 cm Antal SATA strømstik 12 Strømkabellængde SATA 120,500 mm Strømkabellængde Perifere (Molex) 120,500 mm EPS strømstik (8-pin) Ja EPS-strømstik (4 + 4-benet) Ja PCI ekspres strømforbindelser (6+2 pin) 3 ATX strømstrik (24 stikben) Ja Kabeltype Fuldt modulær Præstation Formål PC Strømforsyningenhed (PSU) formfaktor ATX 80 PLUS certificering 80 PLUS Gold ATX-version 3.0 Lejeteknologi FDB Gennemsnitstid mellem fejl (MTBF) 100000 t Design Produktfarve Hvid Kølingstype Aktiv Ventilator diameter 14 cm Antal blæsere 1 blæser(e) Blæser placering Top Tænd-/slukkontakt Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Godkendelser Certificering TUV,cTUVus,CE,FCC,BSMI,CCC, EAC,RCM,UKCA,BIS Vægt & størrelser Bredde 150 mm Dybde 180 mm Højde 86 mm Vægt 2,93 kg Emballeringsdata Pakkebredde 333 mm Pakkedybde 197 mm Pakkehøjde 122 mm Pakkevægt 3,36 kg Pakketype Kasse Kasse eller udvendig hovedpapkasse dimensioner (BxDxH) 620 x 325 x 220 mm Antal kasser eller hovedpapkasser 4 stk Tekniske detaljer Bæredygtighedscertifikater ErP Overholdelse af bæredygtighed Ja
