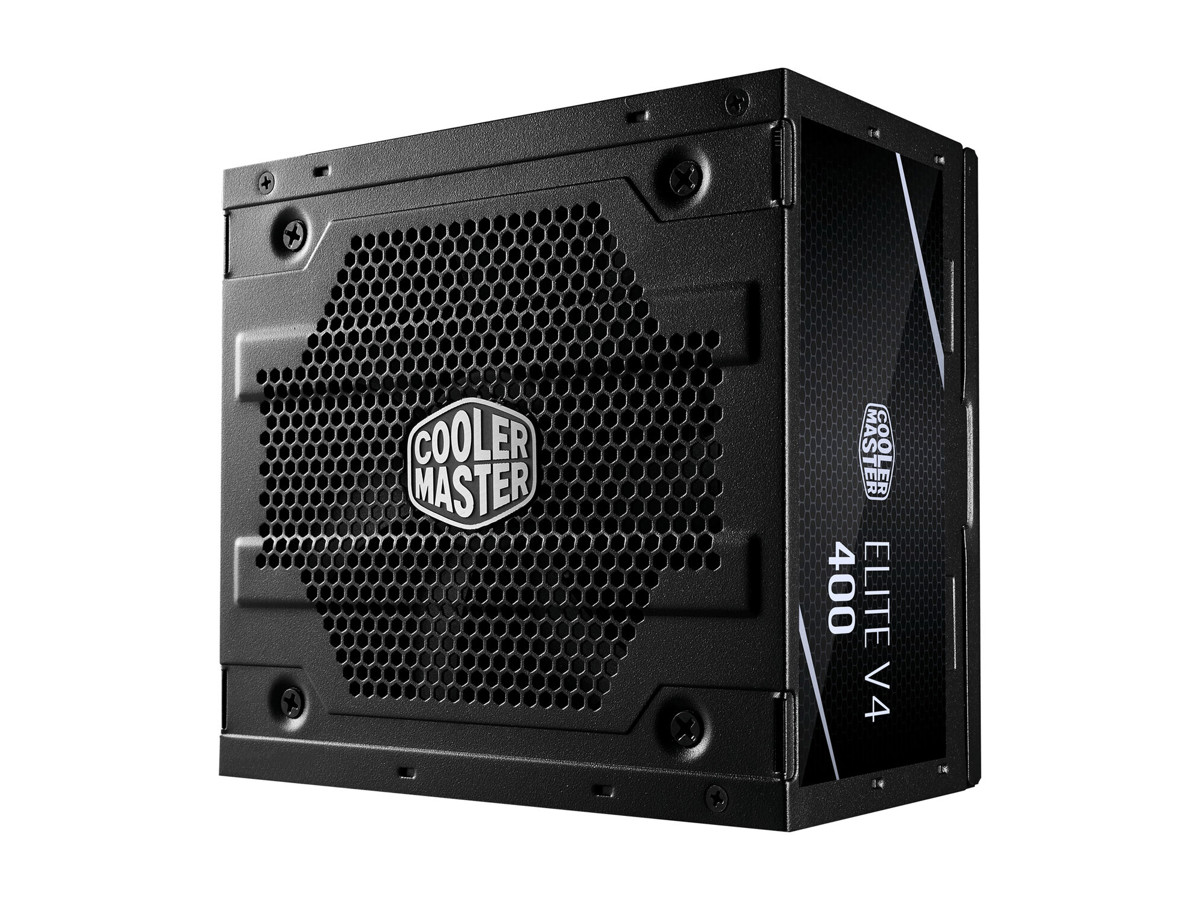

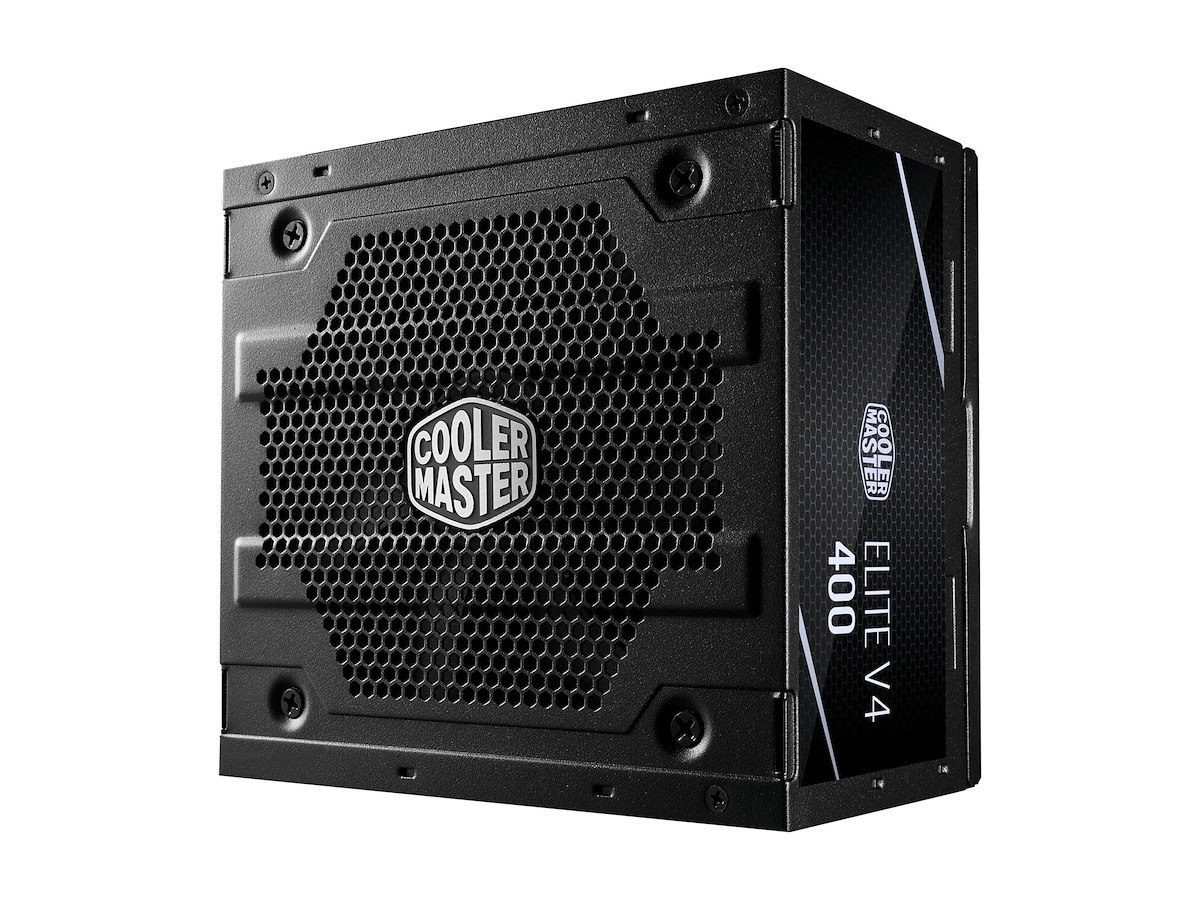

Cooler Master Elite V4 400W enhed til strømforsyning 24-pin ATX ATX Sort
Varenummer: MPE-4001-ACABN-EU
.
DKK 1.161,25 / Stk
DKK 929,00 ekskl. moms
  •
Cooler Master Elite V4 400W. Total effekt: 400 W, Vekselstrømsindgangsspænding: 200 - 240 V, Vekselstrømsindgangsfrekvens: 50/60 Hz. Motherboard, strømstik: 24-pin ATX, Længde på strømkabel på bundkort: 55 cm, Strømkabellængde SATA: 400 mm. Formål: PC, Strømforsyningenhed (PSU) formfaktor: ATX, 80 PLUS certificering: 80 PLUS. Produktfarve: Sort, Kølingstype: Aktiv, Ventilator diameter: 12 cm. Bredde: 150 mm, Dybde: 140 mm, Højde: 86 mm


Mere information

  • Power Up
    The Elite - v4 series power supply unit is a dependable choice for entry level PC builders and office work systems. The quiet 120mm fan, 80 PLUS White EU 230V efficiency, and 3 year warranty deliver a PSU that provides function and resilience you can count on. It's the perfect option for work horse systems stored and operated in less than ideal conditions and climates. This PSU has been engineered for reliability with a focus on reducing random shutdowns in conditions where power sources are inconsistent and unstable, making it ideal for locations prone to experience brown outs. The Elite - v4 is a complete solution, offering performance and stability at an affordable price.

    Active PFC + Forward Topology Design
    A power supply unit works by taking power directly from the wall or other fixed power source, converting it to the correct output required by the connected components, and then distributing that power to said components. If any part of this process is interrupted or executed poorly, the connected system components and the PSU itself could be damaged. Active PFC uses a circuit to correct power factor leading to reduced total harmonics, corrected AC input voltage, and increased overall efficiency output.

    High Temperature Resistance
    The new Elite - v4 has a maximum operating temperature of 40°C. That's at the level of many 80 Plus certified power supply units on the market today. This higher operating temperature allows you to power your system safely in warmer environments without having to worry about your system overheating or shutting off unexpectedly. The higher heat resistance also reduces temperature based wear, increasing the lifespan of the unit by a noticeable amount.

    Peak Power Tolerance
    This power supply unit can push out an additional 50W above maximum load for up to 10 seconds before turning off. This will allow your system a chance to save data and complete current processes in the event of output surge or overloading. While it may not be a feature you'll actively need all the time, it can be extremely useful in an emergency scenario.

    80 Plus White EU 230V Efficiency
    The efficiency of your power supply unit is important because it directly affects your system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The Elite - v4 has a guaranteed typical efficiency of 85%.

    Durable, Reliable, and Safe
    The Elite - v4 will perform consistently in whatever environment you throw at it whether it's high altitudes above 5000 meters or ultra humid settings like a tropical rain-forest. This unit was designed for work systems meant to be used in extreme conditions with challenging temperatures. Do whatever you need to do wherever you need to do it without letting your hardware limit your goals.



  • Strømstyring
    Total effekt 400 W
    Vekselstrømsindgangsspænding 200 - 240 V
    Vekselstrømsindgangsfrekvens 50/60 Hz
    Indgangsstrøm 4 A
    Strømkorrektionsfaktor (PFC) Aktiv
    Kombineret effekt (+3,3 V) 100 W
    Kombineret effekt (+12 V) 360 W
    Kombineret effekt (+5 V) 100 W
    Kombineret effekt (-12V) 3,6 W
    Kombineret effekt (+5 VSB) 15 W
    Maks. udgangsstrøm (+3,3 V) 14 A
    Maks. udgangsstrøm (+12 V) 30 A
    Maks. udgangsstrøm (+5 V) 14 A
    Maks. udgangsstrøm (-12V) 0,3 A
    Maks. udgangsstrøm (+5 VSB) 3 A
    Holdetid 14 ms
    Effektivitet 85%
    Godt signalstrøm forsinkelseshastighed 100 - 500 ms
    Strømbeskyttelsesfunktioner Overstrøm, Højspænding, Overophedning, Kortslutning, Lavspænding
    Porte & Grænseflader
    Motherboard, strømstik 24-pin ATX
    Perifere (Molex) strømstik (4-pin) 2
    Længde på strømkabel på bundkort 55 cm
    Antal SATA strømstik 4
    Strømkabellængde SATA 400 mm
    EPS-strømstik (4 + 4-benet) Ja
    PCI ekspres strømforbindelser (6+2 pin) 1
    Strømkabellængde PCI Express 50 cm
    Kabeltype Ikke modulær
    Præstation
    Formål PC
    Strømforsyningenhed (PSU) formfaktor ATX
    80 PLUS certificering 80 PLUS
    ATX-version 2.41
    Lejeteknologi Muffe
    Gennemsnitstid mellem fejl (MTBF) 100000 t
    Certificering TUV, cTUVus, BSMI, FCC, EAC, RCM, KCC, CCC, CB
    Design
    Produktfarve Sort
    Kølingstype Aktiv
    Ventilator diameter 12 cm
    Antal blæsere 1 blæser(e)
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Vægt & størrelser
    Bredde 150 mm
    Dybde 140 mm
    Højde 86 mm
    Emballeringsdata
    Pakkebredde 195 mm
    Pakkedybde 213 mm
    Pakkehøjde 96 mm
    Tekniske detaljer
    Overholdelse af bæredygtighed Ja
    Bæredygtighedscertifikater CE, ErP
    Logistik data
    Hovedkasser pr. palle (udvendigt) 50 stk
    Hovedkassens bredde (udvendigt) 228 mm
    Hovedkassens længde (udvendigt) 500 mm
    Hovedkassen højde (udvendigt) 215 mm
    Produkter pr. hovedkasse (udvendigt) 5 stk
    Andre funktioner
    EPS-kabellængde 55 cm
