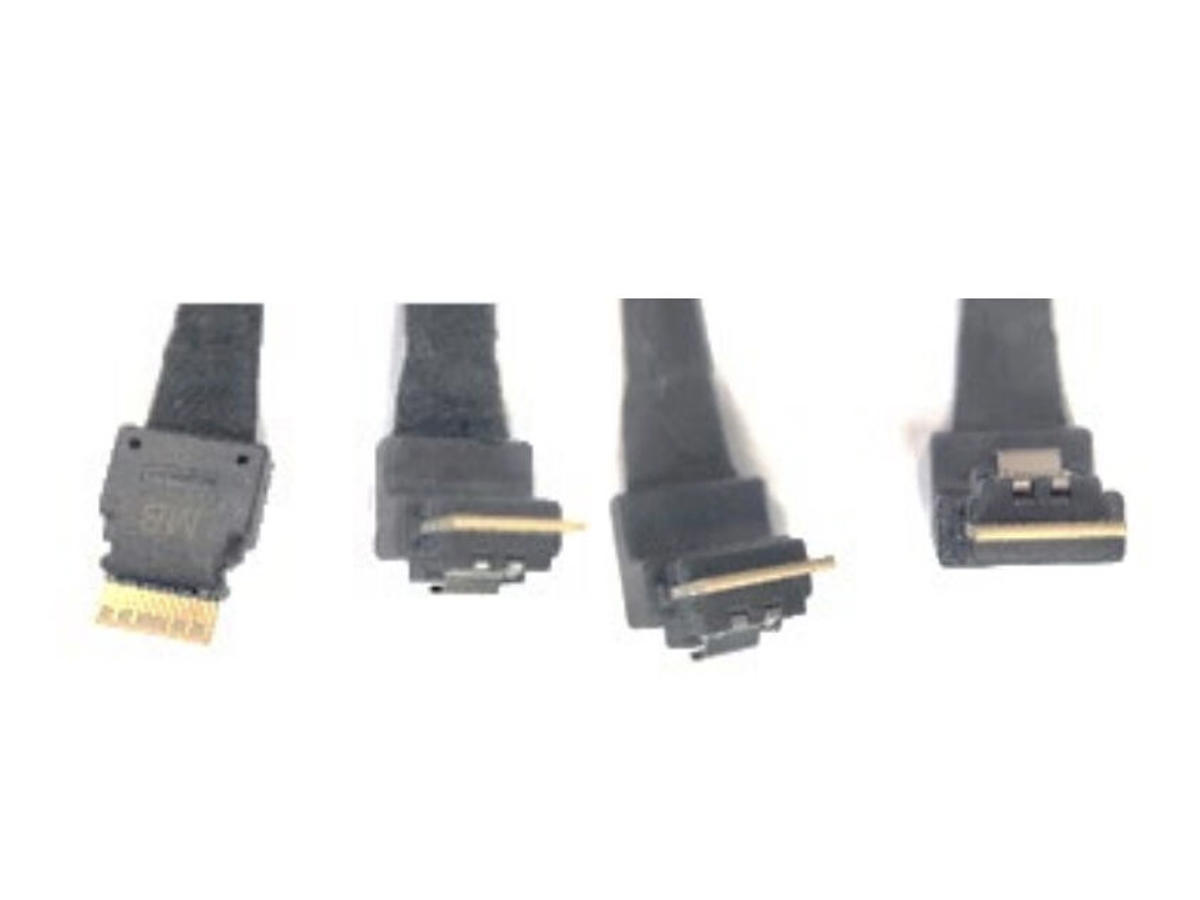

Intel CYPCBLSLINTKIT Serial Attached SCSI (SAS)-kabel

Cable for 1U and 2U systems as spare or accessory.

Included Items:

1 x 125/355 mm splitter cable, Power cable connects server board 12 V power connector to Midplane card / Interposer card power connector.
Note: System does not support both SAS Interposer card and Midplane card at the same time.

1 x 610 mm cable, I2C (P+S) server board (rear) to SAS Interposer card
(10 Pin to 10 Pin)
1 x 250 mm cable, SB CPU0 x4 SlimSAS A or CPU1 x4 SlimSAS D to SAS Interposer card x4 SlimSAS A, VT -> RA
1 x 250 mm cable, SB CPU0 x4 SlimSAS B or CPU1 x4 SlimSAS C to SAS Interposer card x4 SlimSAS B, VT ->RA
