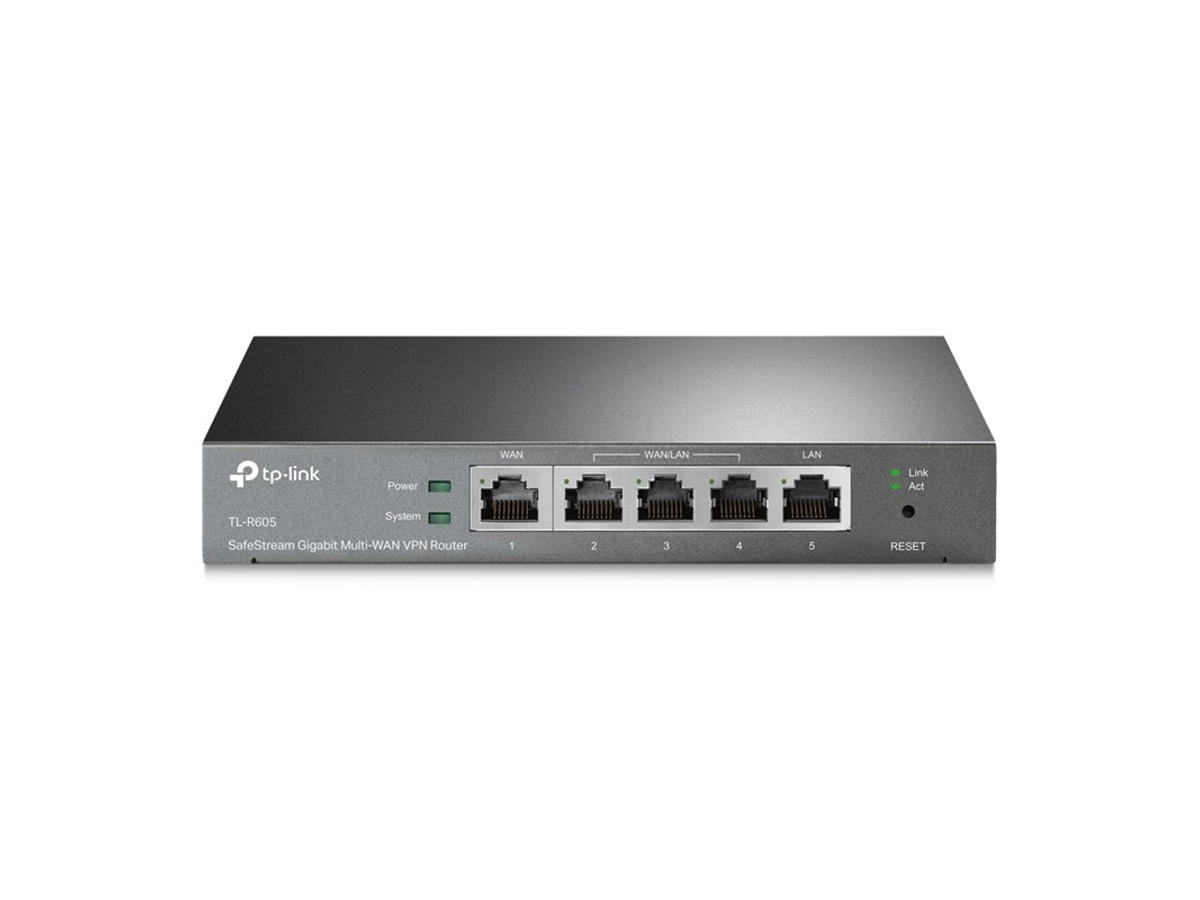

Professional, Secure, and Reliable Gigabit Multi-WAN VPN Router with Centralized Management Capability
Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, TL-R605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
Three freely interchangeable ports that can be set to either WAN or LAN allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Highly Secure VPN
TL-R605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. -
WAN-forbindelse Ethernet WAN Ja DSL WAN Ingen SIM-kort slot Ingen 3G/4G kompatibilitet USB-modem Ja SFP WAN Ingen Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x Ethernet-grænsefladetype Gigabit Ethernet Kabelteknologi 10/100/1000Base-T(X) Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Statisk rute Ja VLAN understøttelse Ja Politikbaseret routing Ja Administrationsfunktioner Webbaseret administration Ja Universal Plug and Play (UPnP) Ja Knap til nulstilling Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 4 Gigabit Ethernet (kobber) porte, antal 4 DC-in-stik Ja Protokoller DHCP-server Ja Understøttelse af DMZ Ja Sikkerhed Sikkerhedsalgoritmer FTPES, SIPS Firewall Ja URL-filtrering Ja DoS angrebsforebyggelse Ja ARP angrebsbeskyttelse Ja ICMP angrebsbeskyttelse Ja Adgangskontrolliste (ACL) Ja Netværk adresse-oversættelse (NAT) Ja System hændelseslog Ja Antal VPN-tunneler 20 NAT-funktionalitet One-to-One NAT5 Multi-Net NAT Virtual Server Port Triggering5 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP Emballage indhold AC-adapter inkluderet Ja Kabler inkluderet LAN (RJ-45) Hurtig installationsvejledning Ja Funktioner Flashhukommelse 128 MB Intern hukommelse 256 MB Understøttede Windows-operativsystemer Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows Vista, Windows XP Understøttede Mac-operativsystemer MacOS Understøttede Linux-operativsystemer Ja Certificering CE, FCC, RoHS Design Produktfarve Sort LED-indikatorer LAN, Strøm, Status, WAN Strømstyring Strømkilde type DC Indgangsstrøm 1 A Udgangsspænding 12 V Udgangsstrøm 1 A Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 158 mm Dybde 101 mm Højde 25 mm Logistik data Harmoniseret systemkode (HS) 85176990
