Future-Proof Your Business with 10G Enterprise Connectivity

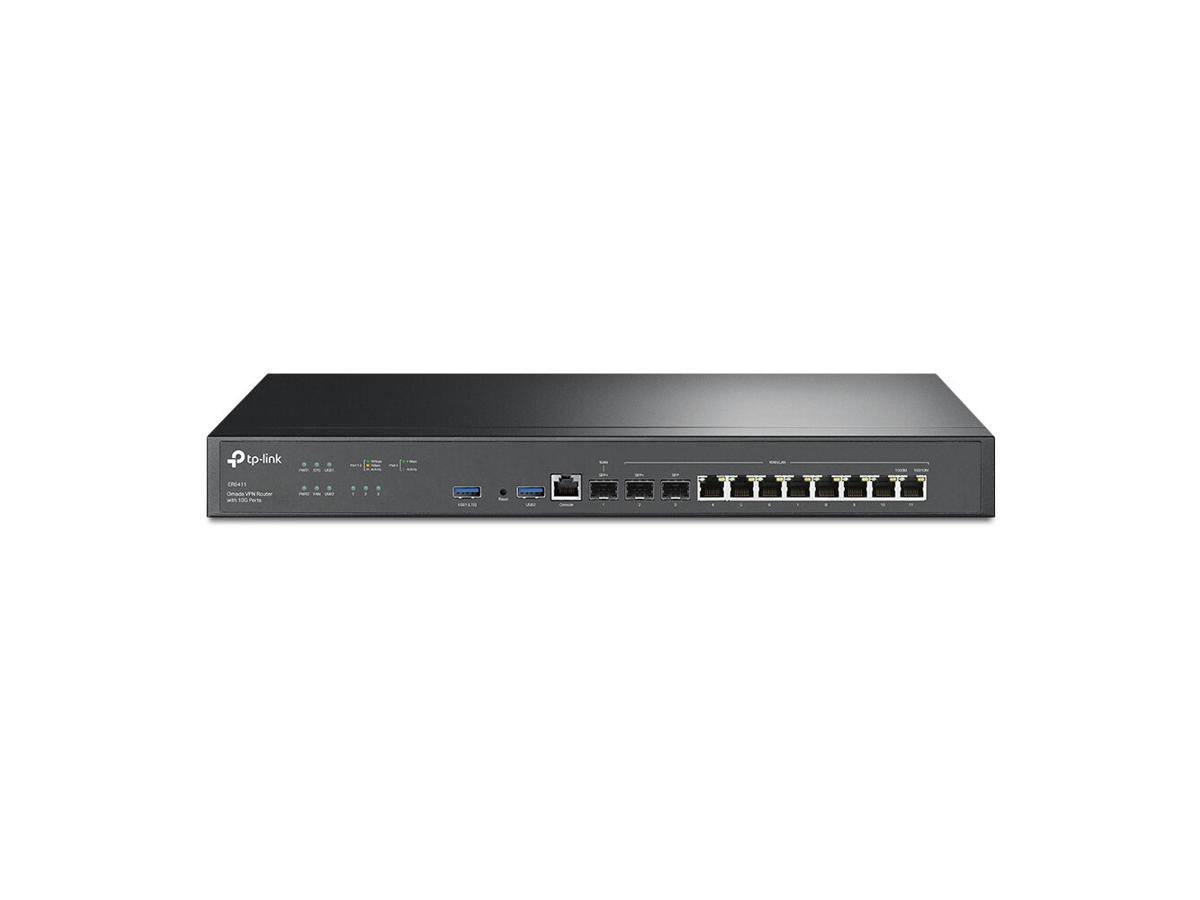

Omada VPN Router with 10G Ports
Centralized Cloud Management
Seamless integration into the Omada SDN platform
Quad-Core 2.2 GHz CPU
Enterprise–level hardware design provides maximum performance
Two 10GE SFP+ Ports
High-bandwidth aggregation with 1× WAN and 1× WAN/LAN ports
Up to 10 WAN Ports
Multi-WAN Load Balance raises the utilization rate of multi-line broadband
Two USB 3.0 Ports
Available 4G/3G Modem connection for LTE WAN backup
High-Capacity Performance
Supports up to 2,300,000 concurrent sessions
High-Security VPN
Enterprise-standard SSL / IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN
Enhanced Security
Powerful Firewall, DoS defense, IP/MAC/URL/ Keyword filtering
Dual Redundant Power Supplies
Carrier-class reliability for enterprise networking
High-Capacity Performance with Quad-Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.
Maximize the 10G Broadband with Omada Enterprise Gateway
Maximized 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 — an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.
10× WAN Ports & One USB WAN for Mobile Broadband
Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.
High-Security and High-Performance VPN
ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.
Robust Security Features
Powerful Firewall
Advanced firewall policies protect your network and data.
IP/MAC/URL/Keyword Filtering
Forcefully prevent viruses and attacks from intruders.
Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.
IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec, and PPTP.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. -
WAN-forbindelse Ethernet WAN Ja DSL WAN Ingen SIM-kort slot Ingen 3G/4G kompatibilitet USB-modem Ingen SFP WAN Ja Netværk Netværksstandarder IEEE 802.1Q Ethernet-grænsefladetype Gigabit Ethernet Kabelteknologi 10/100/1000Base-T(X) Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Statisk rute Ja VLAN understøttelse Ja Portvideresendelse Ja Administrationsfunktioner Universal Plug and Play (UPnP) Ja Knap til nulstilling Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 8 Kombo SFP porte, antal 2 Antal USB-porte 2 DC-in-stik Ja Protokoller DHCP-klient Ja DHCP-server Ja Sikkerhed URL-filtrering Ja Adgangskontrolliste (ACL) Ja NAT-funktionalitet One-to-One NAT; Multi-Net NAT; Virtual Server; Port Triggering; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP; Emballage indhold AC-adapter inkluderet Ja Brugervejledning Ja Funktioner Indbygget processer Ja Flashhukommelse 256 MB Intern hukommelse 4096 MB Intern hukommelsestype DDR4 Certificering CE, FCC, RoHS Design Produktfarve Sort LED-indikatorer Ja Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 440 mm Dybde 220 mm Højde 44 mm Emballeringsdata Pakkebredde 336 mm Pakkedybde 528 mm Pakkehøjde 100 mm Pakkevægt 3,68 kg
