A Future-Proof, Versatile, and Compact Router with PoE+ Ports and Controller Capability

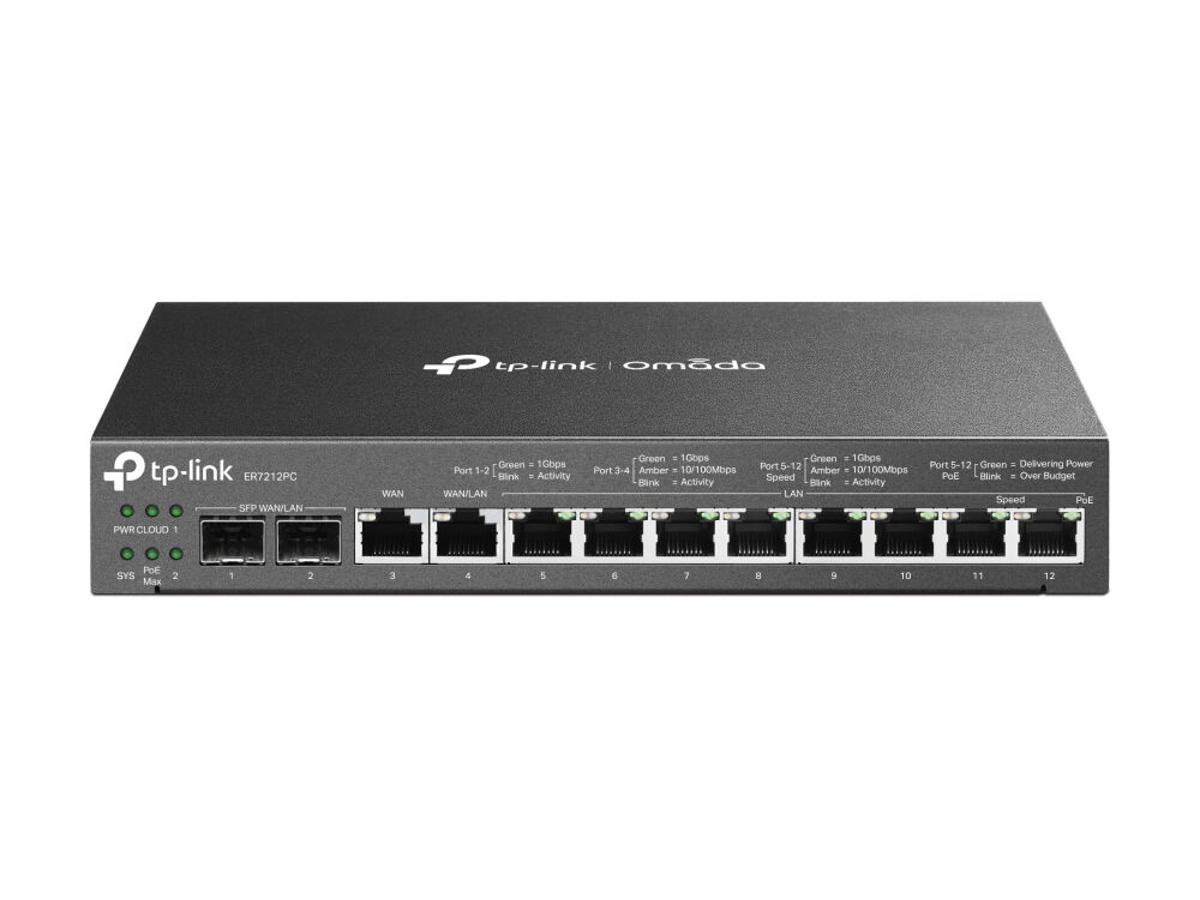

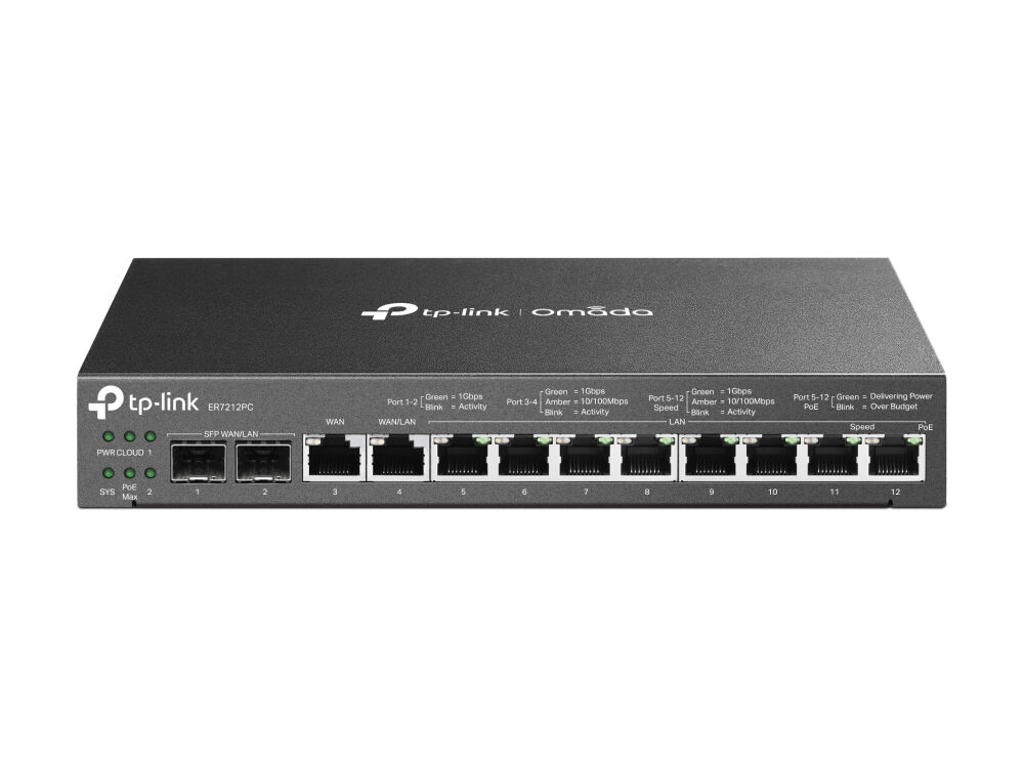

Omada 3-in-1 Gigabit VPN Router
3-in-1 Router, More Than A Router
The 3-in-1 ER7212PC presents a one-stop solution for home and small business networking.
With a single compact box, users can replace their router, hardware controller, and PoE+ switch setup. There is no need to manually configure various network devices one by one, you can perform unified deployment through ER7212PC. All you need is one device.
Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
Equipped with multiple ports, ER7212PC satisfies various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Easy Installation, Quiet Heat Dissipation
A clean, well-organized, and quiet network environment is at your fingertips.
- The compact and minimalist design makes it suitable for your configuration in various spaces, whether it's the corner of office desks or the ceiling of a store.
- Fanless design offers noiseless heat dissipation to your shops or offices.
Easy Centralized Management
With built-in centralized management capability, the ER7212PC enables you to manage and update devices in bulk, with no need for individual and complex setups. Additionally, check the Omada app or web browser, ER7212PC allows you to remotely control connected devices, monitor the network, and view the network maintenance in real-time.
High-Security and High-Performance VPN
ER7212PC supports pass-through traffic and multiple VPN protocols, including OpenVPN, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.
Robust Security Features
- Powerful Firewall
Advanced firewall policies
protect your network and data.
- Convenient VLAN Support
Create virtual network segments for
enhanced security and simplified
network management.
- DoS Defense
Automatically detects and blocks
Denial of Service (DoS) attacks such
as TCP/UDP/ICMP Flooding, Ping of
Death, and other related threats.
- IP/MAC/URL/Keyword Filtering
Forcefully prevent viruses and attacks from intruders.
- IP-MAC Binding
Reserves static IP assignment for
clients to defend against ARP
attacks and spoofing.
- One-Click ALG Activation
One-Click ALG Activation for
applications such as FTP, H323, SIP,
IPSec, and PPTP. -
WAN-forbindelse Ethernet WAN Ja DSL WAN Ingen SIM-kort slot Ingen 3G/4G kompatibilitet USB-modem Ingen SFP WAN Ja Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z Ethernet-grænsefladetype Gigabit Ethernet Kabelteknologi 10/100/1000Base-T(X) Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Statisk rute Ja VLAN understøttelse Ja Portvideresendelse Ja Administrationsfunktioner Universal Plug and Play (UPnP) Ja Knap til nulstilling Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 10 Power over Ethernet (PoE) porte, antal 8 Kombo SFP porte, antal 2 DC-in-stik Ja Protokoller DHCP-klient Ja DHCP-server Ja Understøttede protokoller TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP Sikkerhed URL-filtrering Ja Adgangskontrolliste (ACL) Ja NAT-funktionalitet Multi-Net NAT; Virtual Server; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP; Emballage indhold AC-adapter inkluderet Ja Brugervejledning Ja Funktioner Indbygget processer Ja Processorfrekvens 1200 MHz Flashhukommelse 4096 MB Intern hukommelse 1024 MB Intern hukommelsestype DDR3 Certificering CE, FCC, RoHS Design Produktfarve Sort Husmateriale Metal LED-indikatorer Ja Strømstyring Udgangsspænding 53.5 V Udgangsstrøm 2,43 A Strøm over Ethernet (PoE) Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 226 mm Dybde 131 mm Højde 35 mm Emballeringsdata Pakkebredde 227 mm Pakkedybde 374 mm Pakkehøjde 73 mm Pakkevægt 1,92 kg
