Varenummer: 7X06A0K9EA
Mere information
-
Future defined data center

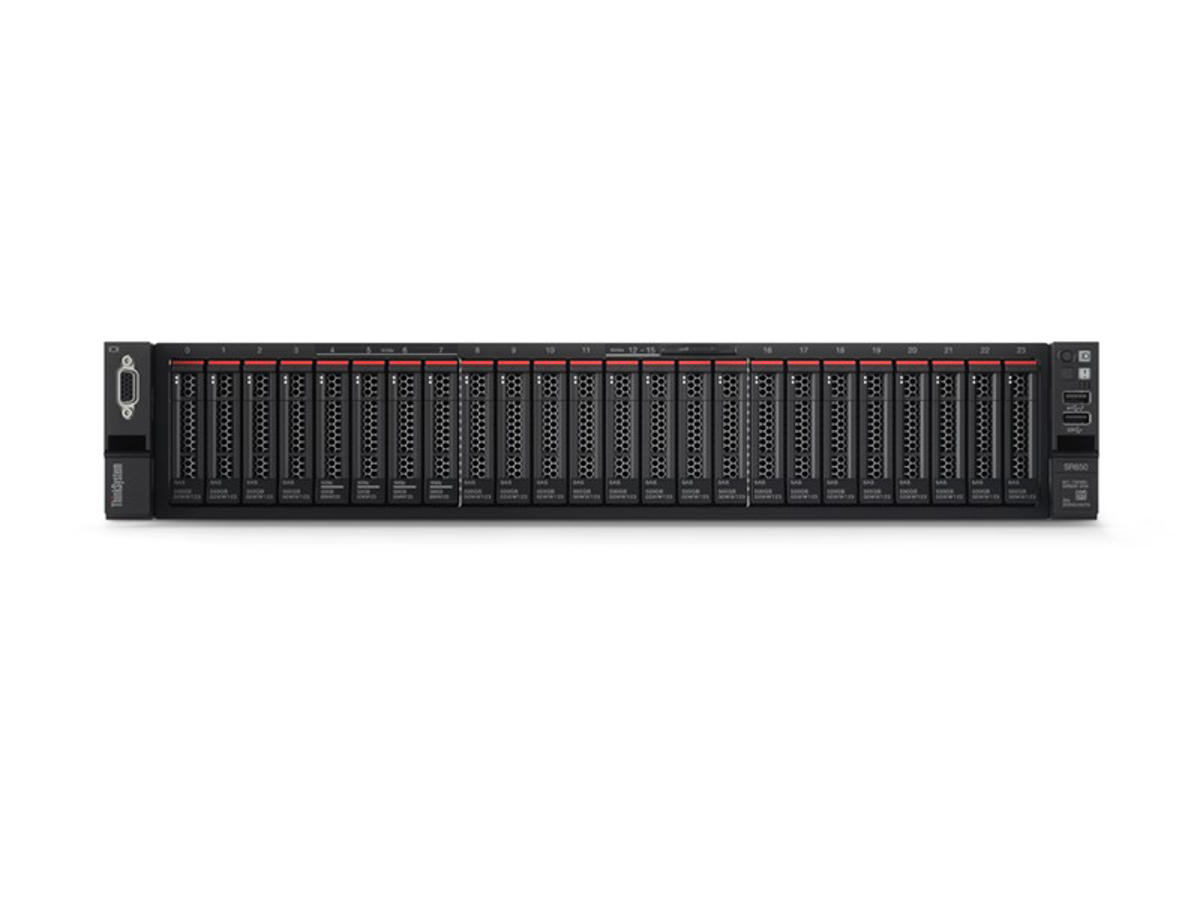

Lenovo delivers cost-effective, reliable, and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR650 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offer an unprecedented combination of high capacity, affordability, and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.*
* Based on Intel internal testing, August 2018.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment. -
Processor Processorserie Intel® Xeon Silver Processorproducent Intel Processormodel 4208 Processorfrekvens 2,1 GHz Processorgeneration Intel Xeon skalerbar 2. generation Processor boost frekvens 3,2 GHz Processorkerner 8 Processor-cache 11 MB Antal installerede processorer 1 Thermal Design Power (TDP) 85 W Processor sokkel LGA 3647 (Socket P) Processor litografi 14 nm Processortråde 16 Processor driftstilstande 64-bit Processor kodenavn Cascade Lake Tcase 78 °C Maksimal intern hukommelse understøttet af processor 1 TB Hukommelsestyper understøttet af processor DDR4-SDRAM Hukommelsesurhastigheder understøttet af processor 2400 MHz Udfør deaktivering af bit Ja Maksimalt antal PCI Express-kanaler 48 Processor-pakke størrelse 76.0 x 56.5 mm Understøttede instruktionssæt AVX-512 Skalerbarhed 2S Indlejret tilgængelige muligheder Ingen Hukommelse Intern hukommelse 32 GB Intern hukommelsestype DDR4-SDRAM Hukommelsesur hastighed 2933 MHz Hukommelseslayout (slots x størrelse) 1 x 32 GB Lagring Understøtter RAID Ja Optisk drevtype Ingen RAID-niveauer 0, 1, 5, 6, 10, 50, 60 Understøttede RAID-kontroller RAID 930-8i 2GB Grafik On-board grafikkort, model Ikke tilgængelig Netværk Ethernet LAN Ja Kabelteknologi 10/100/1000Base-T(X) Udvidelsessokler PCI Express slots version 3.0 Design Kabinettype Stativ (2U) Produktfarve Sort, Sølv Stativ-montering Ja Software Kompatible operativsystemer Microsoft Windows Server 2016/2012 R2 Red Hat Enterprise Linux 7.3/6.9 SUSE Linux Enterprise Server 12 SP2/11 SP4 VMware vSphere (ESXi) 6.5/6.0 U3 Processor særlige funktioner Enhanced Intel SpeedStep Teknologi Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Turbo Boost Teknologi 2.0 Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Intel® Trusted Execution Teknologi Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® TSX-NI Ja Intel® 64 Ja Intel® Virtualization Technology (VT-x) Ja Processor ARK ID 193390 Strømstyring Redundant strømforsyning Ja Strømforsyning 750 W Antal installerede strømforsyninger 1 Logistik data Harmoniseret systemkode (HS) 84714100 Bæredygtighed Bæredygtighedscertifikater ENERGY STAR Vægt & størrelser Bredde 445 mm Dybde 720 mm Højde 87 mm Vægt 19 kg
