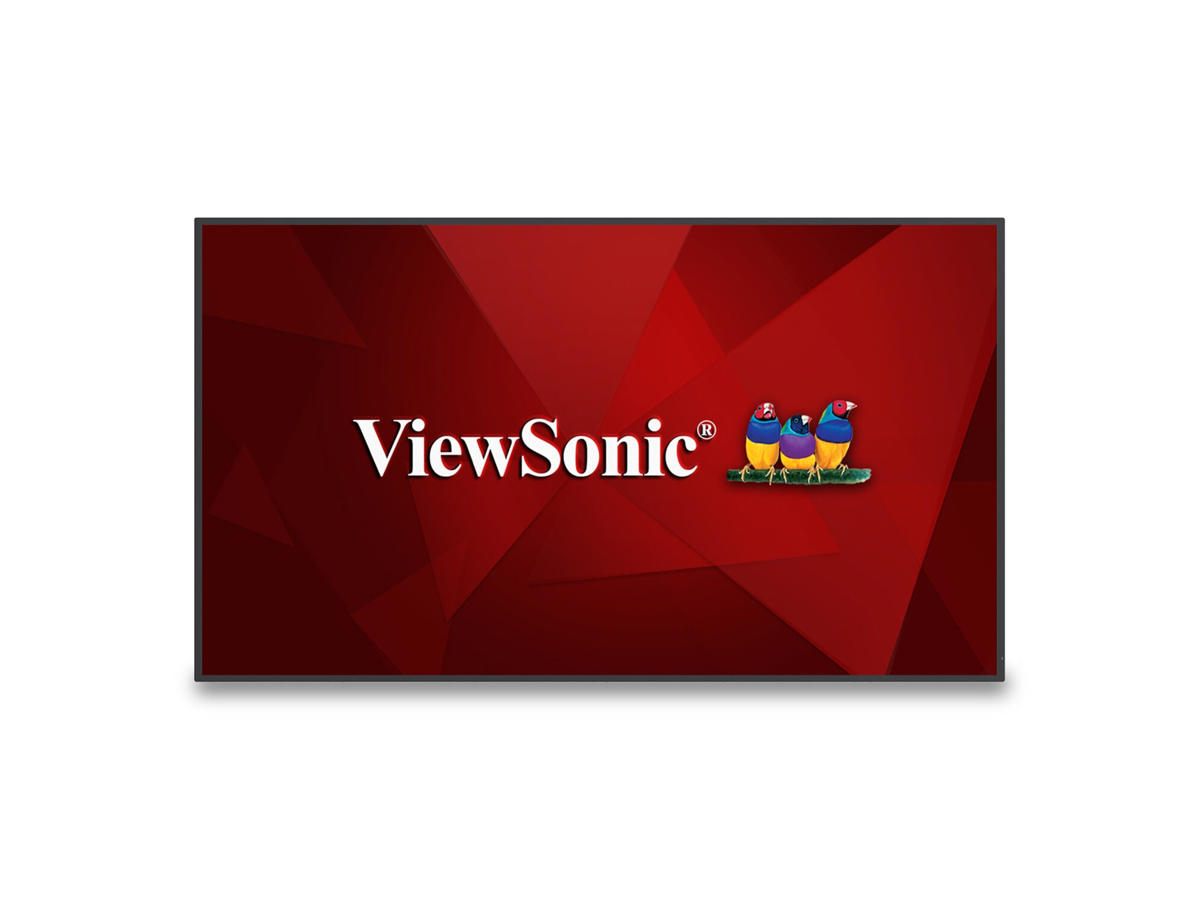

The ViewSonic® CDE5520 is a 55” premium 4K large format presentation display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the display transforms meeting rooms into dynamic communications hubs. The built-in ViewBoard® screen sharing software*, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app), enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE5520 can play multimedia from internal storage or a USB flash drive. And with remote configuration and content management system support, the ViewSonic® CDE5520 is also suitable for a wide array of diverse signage applications. *Chrome, Android, Windows, Mac OS, and iOS compliant
Multiple Ways to Connect and Share
Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.
AV Control System Interoperability
These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.
Centralized Device Control Manager
For IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.
Reliable 24/7 Operation Rating
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.
Superb and Stunning Picture Quality
With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.
Powerful Secured Embedded Platform
This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.
Display | |
Skærm diagonal | 139,7 cm (55") |
Skærmteknologi | LCD |
Skærmopløsning | 3840 x 2160 pixel |
Skærmens lysstyrke | 450 cd/m² |
HD-type | 4K Ultra HD |
Berøringsskærm | Ingen |
Paneltype | ADS |
LED-baggrundsbelysning type | Direct-LED |
Naturligt aspektforhold | 16:9 |
Responstid | 8 ms |
Kontrastforhold (typisk) | 1200:1 |
Kontrastforhold (dynamisk) | 5000:1 |
Synsvinkel, horisontal | 178° |
Synsvinkel, vertikal | 178° |
Vis antal farver | 1,07 milliarder farver |
Skærm diagonal (metrisk) | 139 cm |
Panel levetid | 50000 t |
Oprindelig opdateringshastighed | 60 Hz |
Tågehastighed | 25% |
Overfladehårdhed | 3H |
Porte & Grænseflader | |
Antal HDMI-porte | 3 |
DVI-port | Ingen |
USB-port | Ja |
Ethernet LAN | Ja |
Wi-Fi | Ingen |
HDMI-version | 2.1 |
Antal HDMI-indgangsporte | 2 |
Antal HDMI-udgangsporte | 1 |
Antal USB-porte | 3 |
USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
USB-stik type | USB Type-A, USB Type-C |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
RS-232 grænseflade | Ja |
OPS modul slot | Ja |
Lyd | |
Indbyggede højttaler(e) | Ja |
Antal indbyggede højttalere | 2 |
Udgangseffekt (RMS) | 20 W |
Design | |
Produktdesign | Digital fladpaneldisplay |
Produktfarve | Sort |
Understøttet placering | Indendørs |
VESA montering | Ja |
Orientering | Horisontal/vertikal |
Skærm form | Flad |
Panel montering grænseflade | 400 x 200 mm |
Facet bredde (bund) | 1,5 cm |
Facet bredde (side) | 1,5 cm |
Facet bredde (øverste) | 1,5 cm |
Antirefleksskærm | Ja |
Monteringstype | Væg |
Præstation | |
Formål | Universel |
Driftstimer (timer/dage) | 24/7 |
HDCP | Ja |
HDCP-version | 2.2 |
Strømstyring | |
Strømforbrug (typisk) | 155 W |
Strømforbrug (standby) | 0,5 W |
Strømforbrug (maks.) | 250 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Computersystem | |
Computersystem | Ja |
Indbygget processer | Ja |
Computersystem type | System på chip (SoC) |
Processormodel | Amlogic T982 |
Processorfrekvens | 1,9 GHz |
Processorkerner | 4 |
Intern hukommelse | 4 GB |
On-board grafikkort, model | ARM Mali-G52 |
Intern lagerkapacitet | 32 GB |
Operativsystem installeret | Android 11 |
Vægt & størrelser | |
Skærmbredde | 1233 mm |
Skærm, dybde | 71,5 mm |
Skærm, højde | 703,5 mm |
Skærm, vægt | 13,4 kg |
Emballeringsdata | |
Pakkebredde | 1332 mm |
Pakkedybde | 156 mm |
Pakkehøjde | 819 mm |
Pakkevægt | 19,5 kg |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Batterier inkluderet | Ja |
Kabler inkluderet | Vekselstrøm, HDMI, RS-232, USB Type-C |
Monteringssæt | Ja |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Godkendelser | |
Certificering | cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy |
Tekniske detaljer | |
OPS slot | 1 |
Andre funktioner | |
Hurtig start guide | Ja |
